Overview

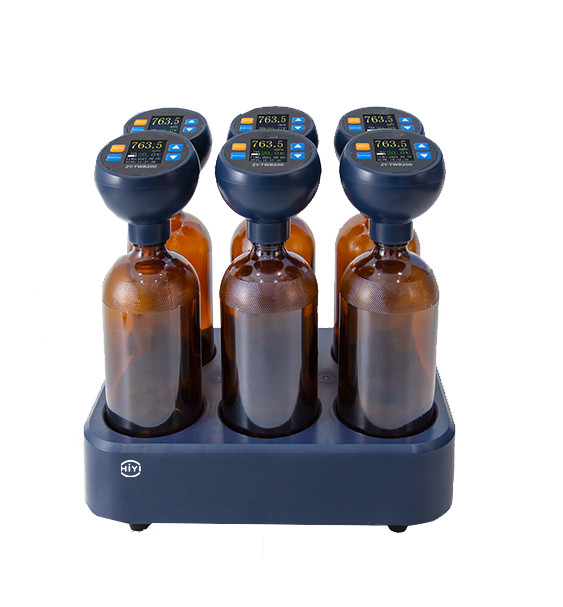

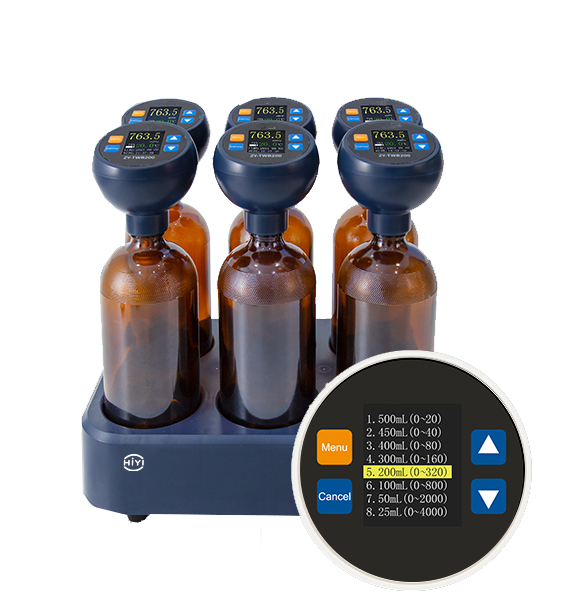

This tester is designed according to the principle of differential pressure measurement, simulating the biodegradation process of organic matter in nature, in the sealed culture bottle, the oxygen in the air above the bottle constantly replenishes the dissolved oxygen consumed by the decomposition of organic matter in the sample. Remove the CO2 produced in the process of organic matter degradation, so that the air pressure in the culture bottle to produce changes, by monitoring the changes in the air pressure in the culture bottle to calculate the biochemical oxygen demand BOD value of the sample. The method is easy to operate, accurate measurement, safe and effective experimental process, wide range of BOD measurement, intelligent operation of the instrument, automatic testing and storage of data, no need for supervision during the experimental process, suitable for monitoring stations, third-party testing organizations, colleges and universities, and sewage enterprises.

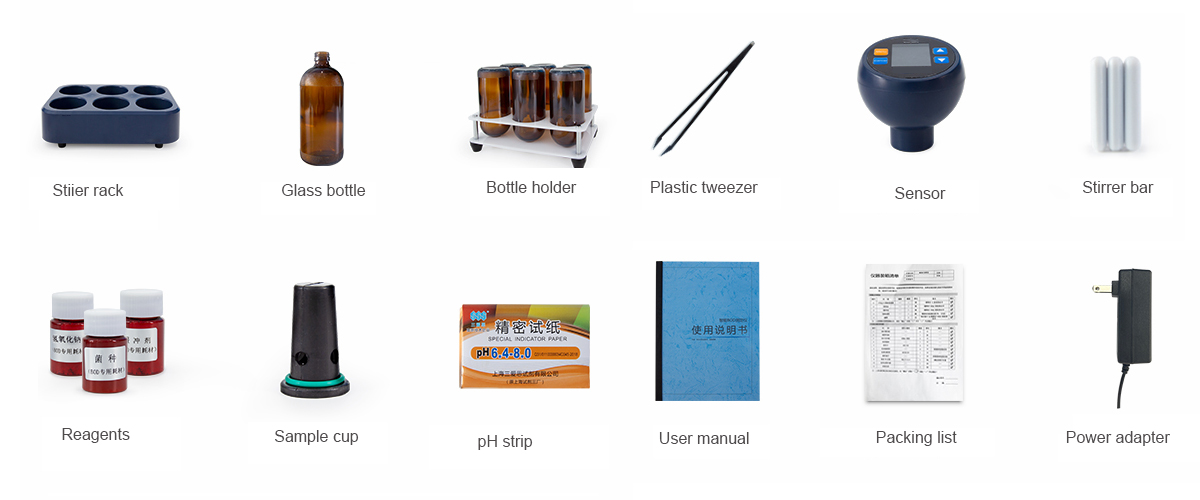

Paking List
Application
| Measurement range | 0-4000 mg/L |
Measurement error | Meets water quality BOD5 accuracy test standards (glucose-glutamate standard solution BOD5 = 180-230mg/L) |
| Measurement quantity | ≤6 |
| Measurement time | 1 to 30 days |
| Recording interval | 2 hours/record |
Storage quantity | Values of 10-year BOD5 results |
| Volume of culture flask | 580ml |
| Incubation temperature | 20±1℃ |
| Voltage | 110-220V，50/60Hz |
| Power | 10W |
| Size | 292*200*81.5mm |
| Weight | 2.5kg |
