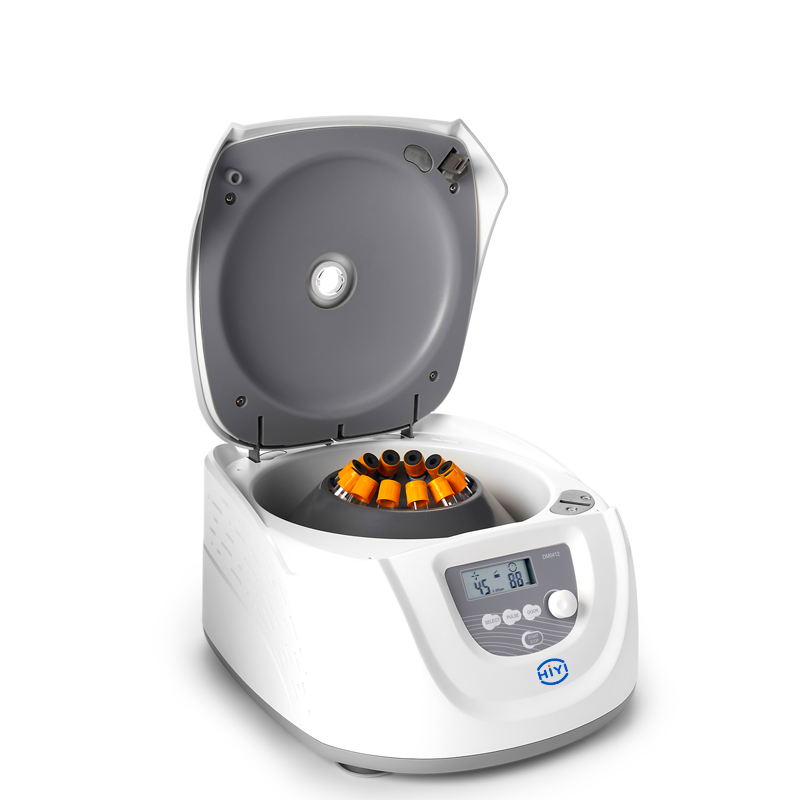

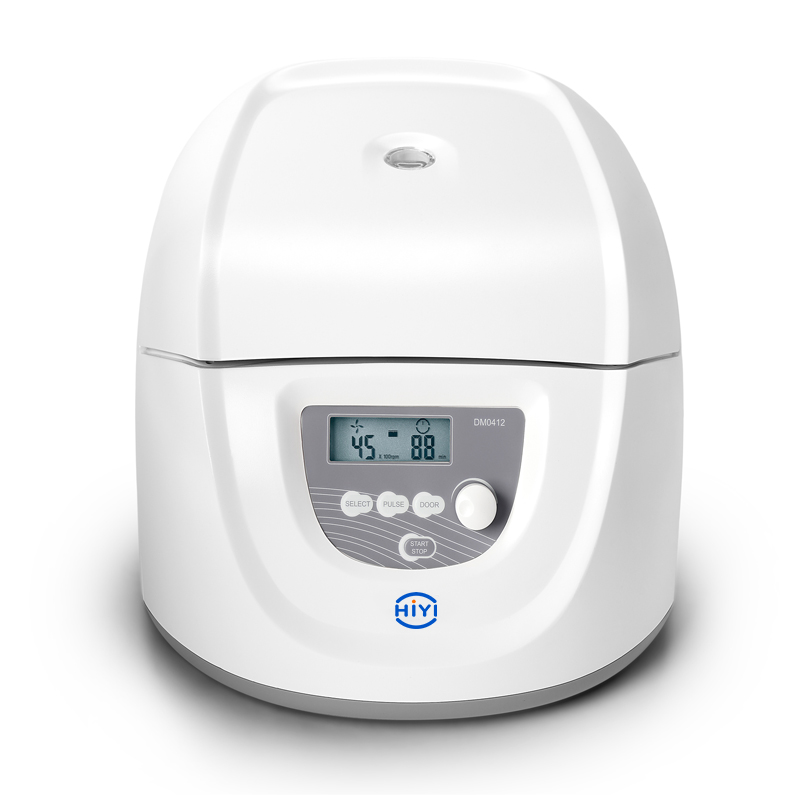

DM0412 Clinical Digital Centrifuge With 8 x 15ml Rotor
The DM0412 Clinical Centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.
The DM0412 conforms to international safety standards and regulations and has passed the explosion-proof test and are certified with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests. Passed EN61010-2-101:2002 requirements for invitro diagnostic (IVD) medical equipment.
Key Features
• Easy programming to achieve high accuracy of speed control
• Easy operation with intuitive menu and easy-to-read display
• Rotor speed can be set and displayed by RPM or G-force
• Maintenance-free brushless DC motors
• Quick spin function with press and hold pulse key
• Lid with electric lock and automatic release function saves processing time and prevents samples overheating
• Automatic self-diagnosis on startup showing accumulative running time and last running parameters
• Braking time 2 gears adjustable(for A6-50P rotor)
• A12-10P and A6-50P are not interchangeable
| Specifications | DM0412 |
| Speed Range | 300-4500rpm,increment: 100rpm |
| Max. RCF | 2490×g |
| Speed accuracy | ±20rpm |
| Rotor type | A12-10P, A6-50P |
| Run Time | 30sec-99min/Continuous |
| Motor | Brushless DC moto |
| Display | LCD |
| Safety Devices | Door interlock,Overspeed detector; Automatic internal diagnosis |
Acceleration
/Braking time [Sec] | A12-10P: 20s↑13s↓
A6-50P: 20s↑20 s /90 s↓ |
| Power | Single-phase,
110V-240V,50Hz/60Hz, 3A
70W |
| Dimension [D×W×H] | 301×354×217mm |
| Weight | 6kg |
| Certification | CE, UL, IVD |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
