Multi Shakers & Mixers
A high sample throughput is one of the daily challenges that analytical laboratories have to meet. Often several analyses have to be prepared simultaneously. To simplify these processes and the general workflow, a multi-vortexer has been developed.

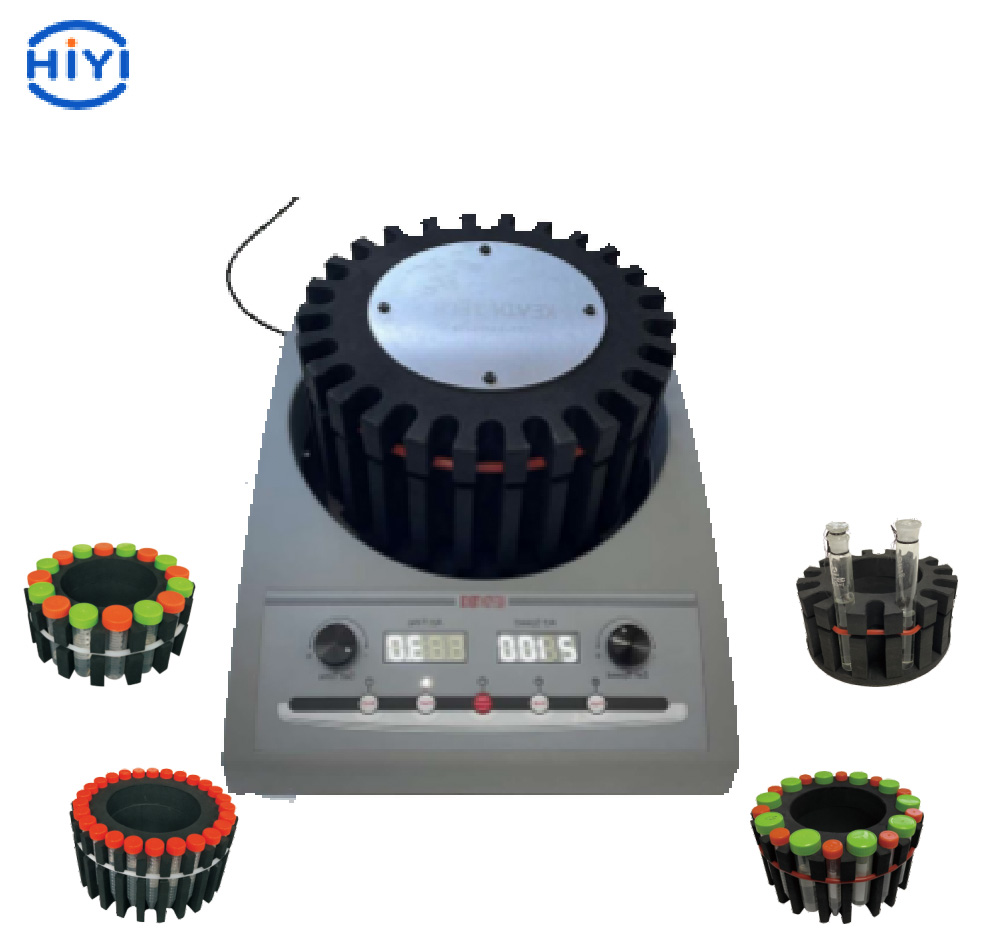

It can accommodate between 16 (16-32 mm diameter) and 26 (10-16 mm diameter) tubes (Falcon tubes or Greiner tubes). Reaction vessels with snap-on lids ("Eppis" or Eppendorf cups) are also safely fixed.
The 3 mm shaking orbit and a speed control between 0 and 3,000 rpm guarantee excellent mixing results.
The integrated timer (up to 999 minutes) enables the automatic termination of the shaking function. After the time has expired, a signal tone is emitted. In this way, you can be sure that your work process will proceed continuously, as several tasks have to be fulfilled at the same time.
Motion | vibrating |
Rotation speed range | 0 - 3,000 rpm |
Operating Mode | timer or continous |
Orbit / Stroke | 3 mm |
Timer | yes (max. 999 min) |
Power input | 60 W |
Test-tube | 16 position for 16-32mm diameter test tube (50ml) 26 position for 10-16mm diameter test tube (15ml) 16 bits for 200mm height special glass tube (50ml) 10 position 15ml+10 position 50ml mixed test tube holder can be customized According to different requirements of users |
Max. Load | 2.5 kg |
Overheat protection | self-resetting |
Protection class | IP 30 |
