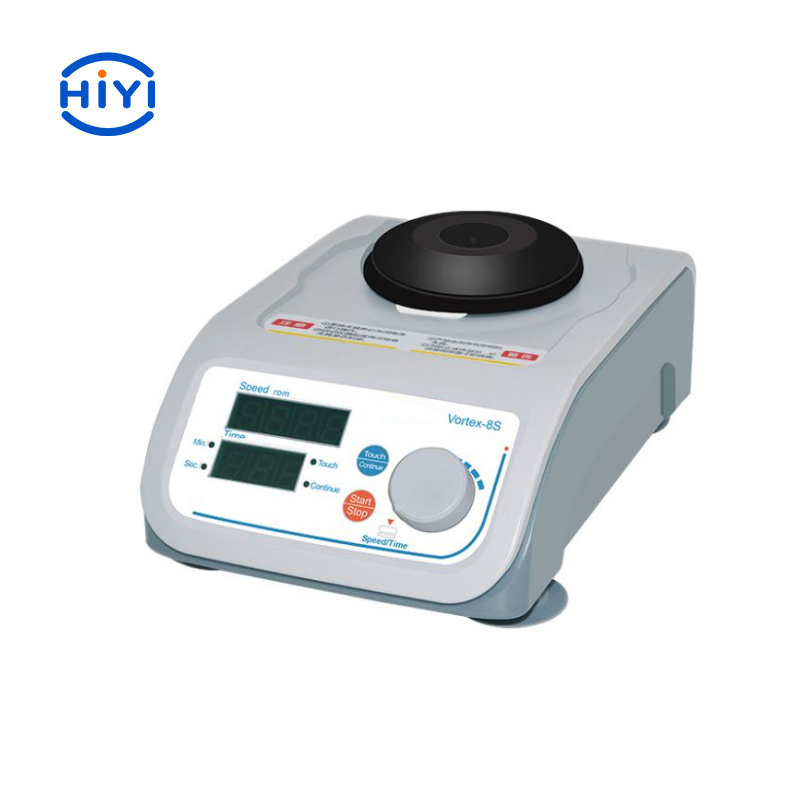

Vortex-8S Multi Function Vortex Mixer
Features:

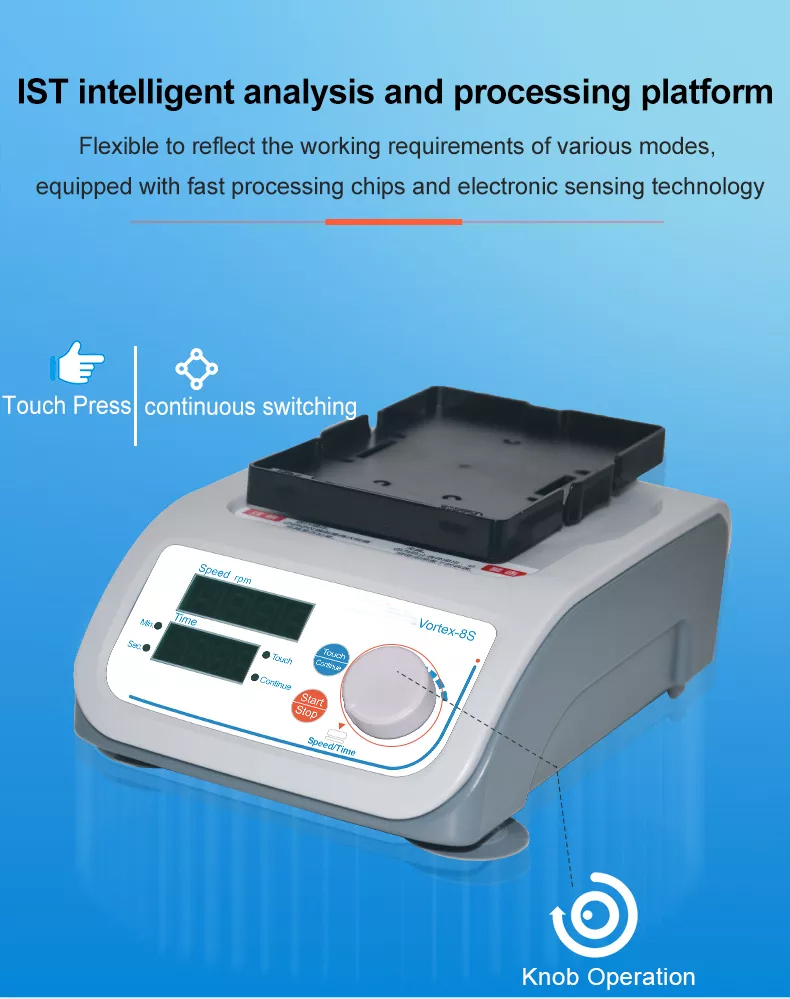

* The ST intelligent analysis and processing platform can respond sensitively to the working requirements of various modes, and is fully equipped with fast processing chipsets and electronic sensing technologies to easily realize intelligent control of speed, time and working mode;

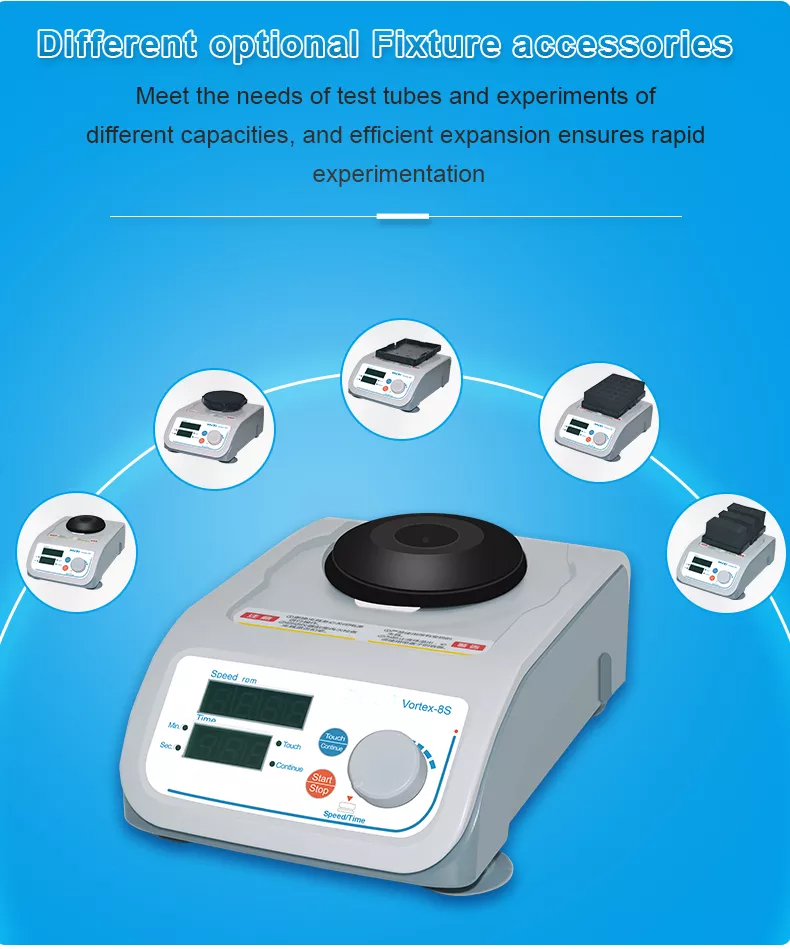

* More fixture accessories to meet the needs of test tubes and plates of different capacities, and efficient expansion to ensure rapid operation;

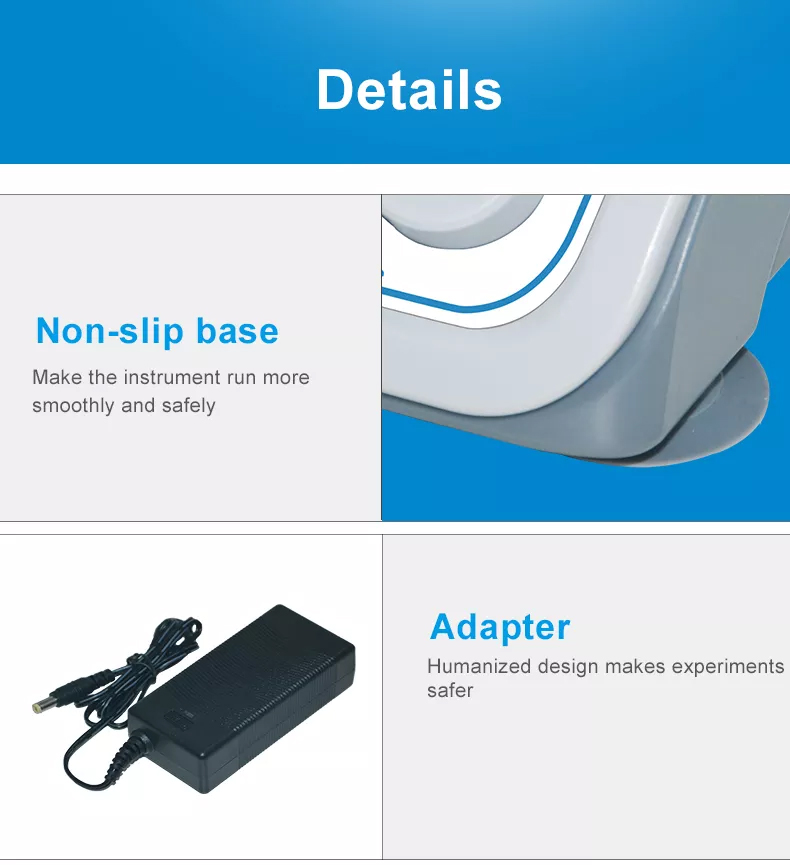

* The perfect fuselage structure optimization design makes it have enough counterweight and eccentric balance operation, providing a stable and quiet working platform for various shaking mixing;

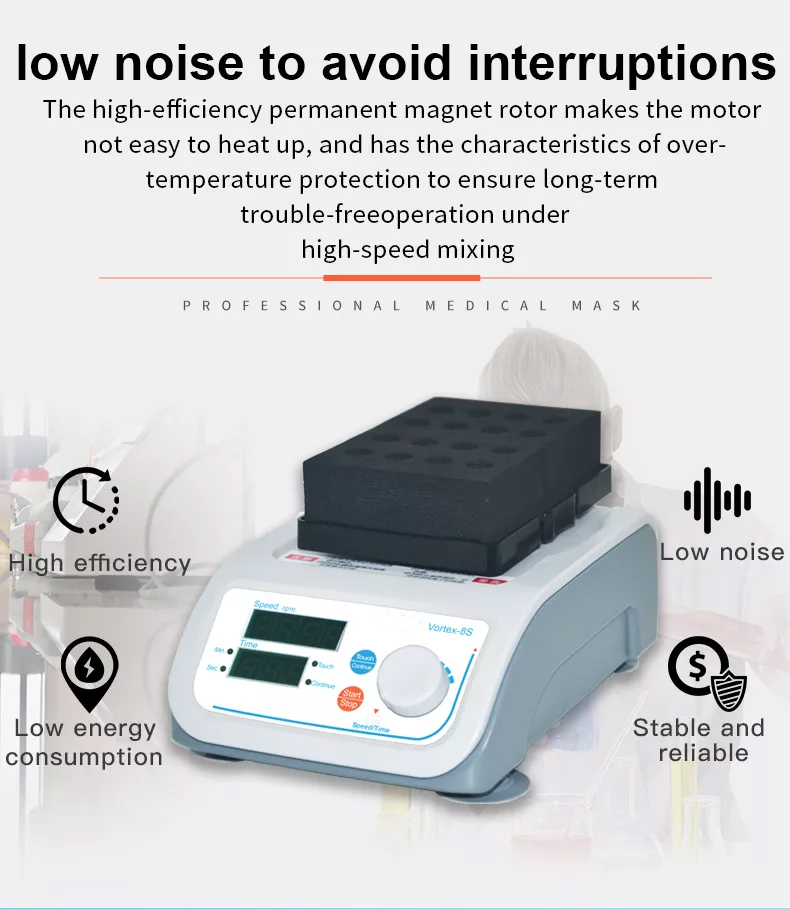

* The high-efficiency permanent magnet rotor makes the motor not easy to heat up, and has the characteristics of over-temperature protection to ensure long-term trouble-free operation under high-speed mixing. The carbon brushless design reduces running resistance, reduces noise, and avoids interference;
* Two safe operation modes, "touch" and "continuous", are convenient and simple to switch, and can quickly identify the maximum speed of various fixtures to ensure their safe use. The time function has positive timing and countdown to make the experiment more convenient and accurate.
| Model | Vortex-8S |
| Motor/Drive method | DC24V permanent magnet brushless motor/direct drive |
| Control method | PWM stepless speed regulation |
| Operation mode | Touch//continuous mode |
| Power fuse | PPTC / resettable fuse / no need to replace |
| Maximum load | 1.5Kg |

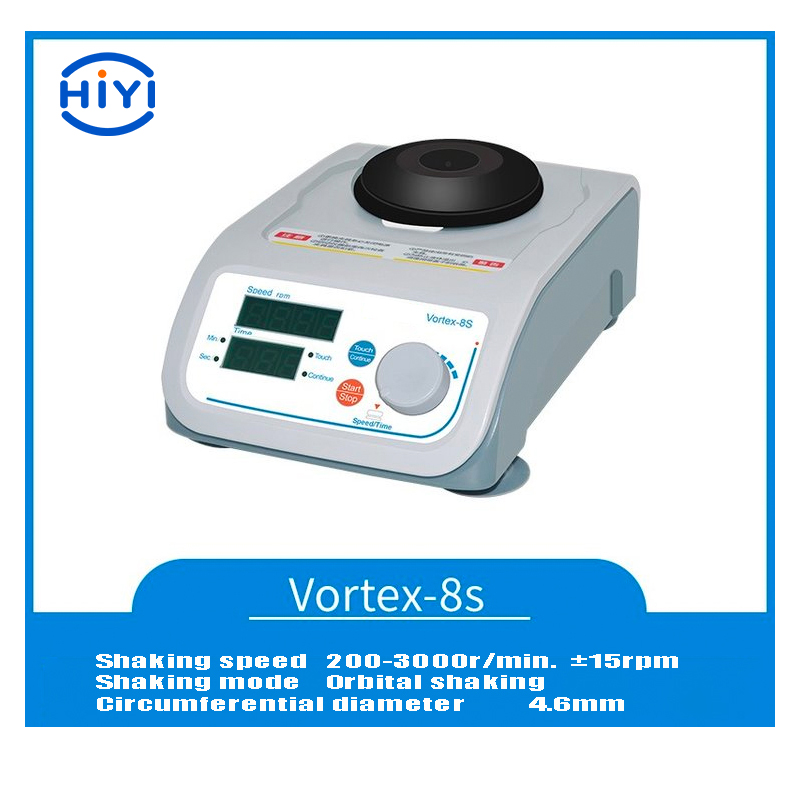

| Shaking speed | 200-3000r/min.±15rpm |
| Shaking mode | Orbital shaking |
| Circumferential diameter | 4.6mm |
| Fixture recognition function | Automatic identification / safe and efficient |
| Speed function / display | Full segment/high-brightness LED digital tube |
| Time function | Digital timing 1S-999min. countdown/touch timing |
| Noise at top speed | ≤45dB(A) |
| Fastest acceleration time | ≤3s |
| Fastest deceleration time | ≤3s |

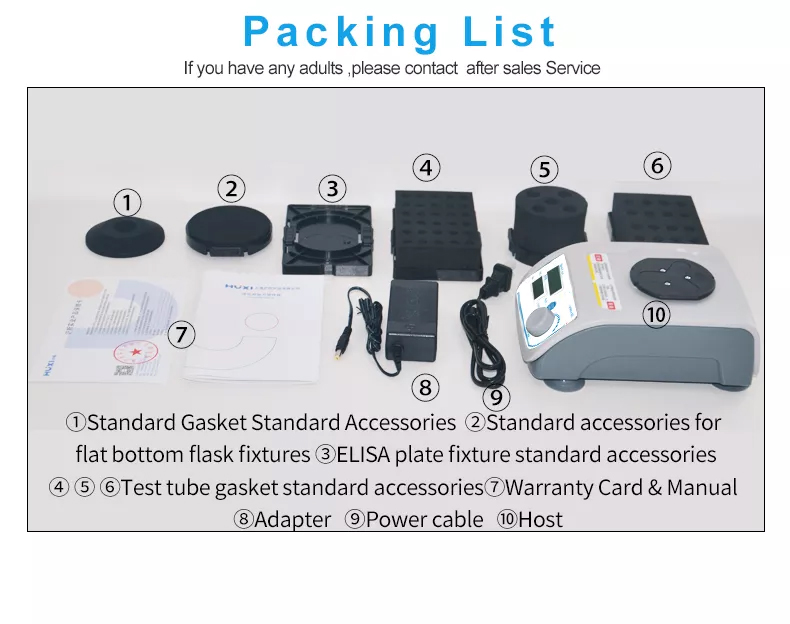

| Standard accessories | 8S-1,8S-2,8S-3,8S-4,8S-5,8S-6 |
| Input power | DC24V |
| Input power | 18W |
| Allowable ambient temperature | +5~40℃ |
| Relative humidity | 80% |
| Protection class | IP20 |

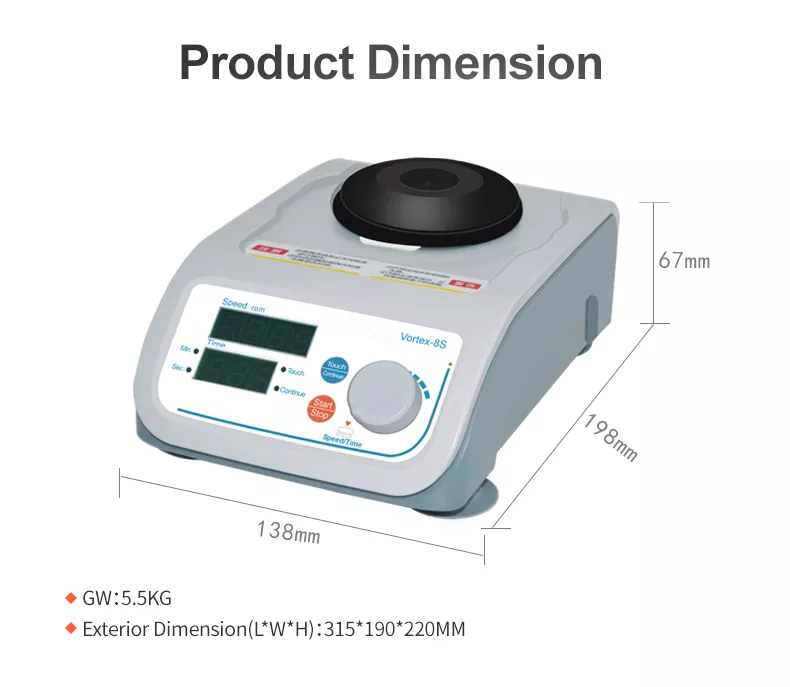

| Instrument size | 198×138×67mm |
| Weight | 4.1kg |

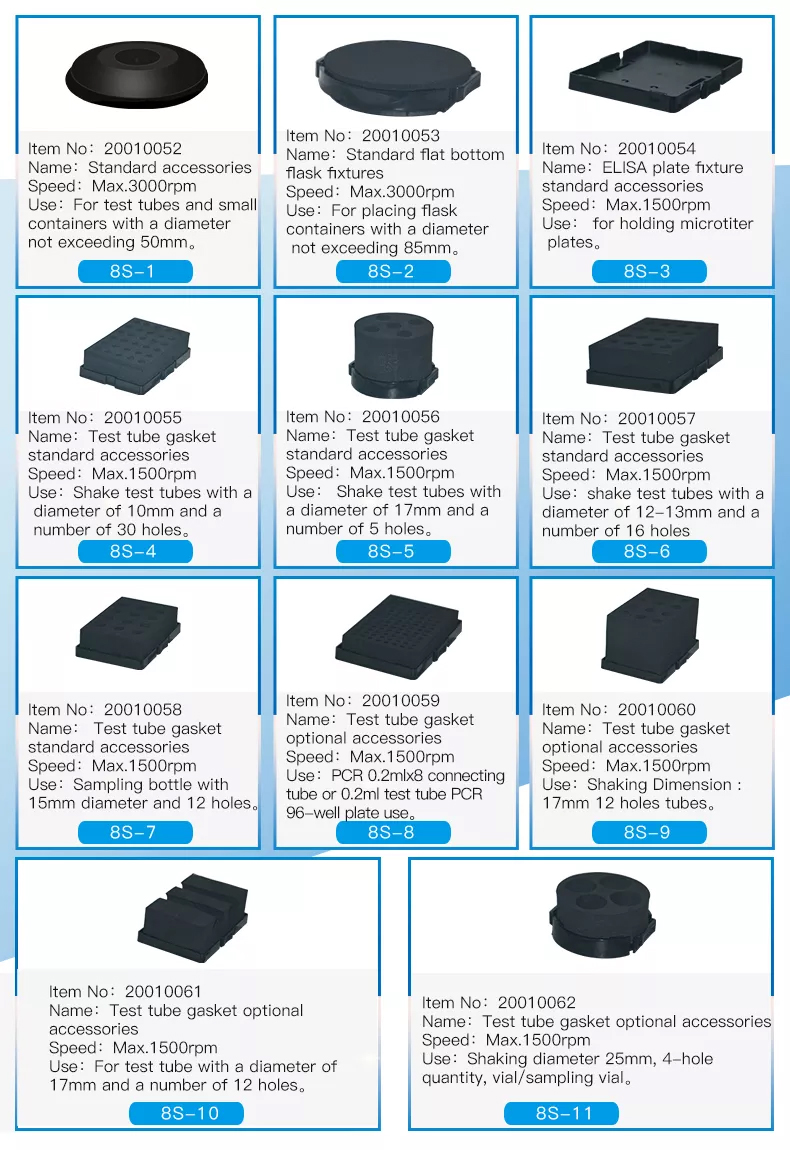

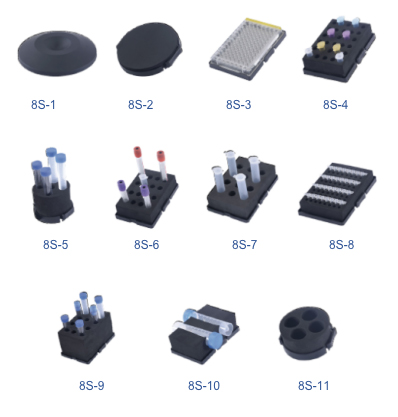

| NO | Item No | Remark |
| 8S-1 | Standard Gasket | Standard |
| 8S-2 | Flat Bottom Flask Fixtures | Standard |
| 8S-3 | Microplate holder | Standard |
| 8S-4 | φ10mm*30 hole test tube gasket | Standard |
| 8S-5 | φ17mm*5 hole test tube gasket | Standard |
| 8S-6 | φ12/13mm*16 hole test tube gasket | Standard |
| 8S-7 | φ15mm*12 hole test tube gasket | Optional |
| 8S-8 | PCR0.2ml*8 connecting tubes or 0.2m test tubes PCR96-well plate use test tube spacers | Optional |
| 8S-9 | φ17mm*12 hole test tube gasket | Optional |
| 8S-10 | 50ml*2 hole test tube gasket | Optional |
| 8S-11 | φ25mm*4 hole test tube gasket | Optional |
