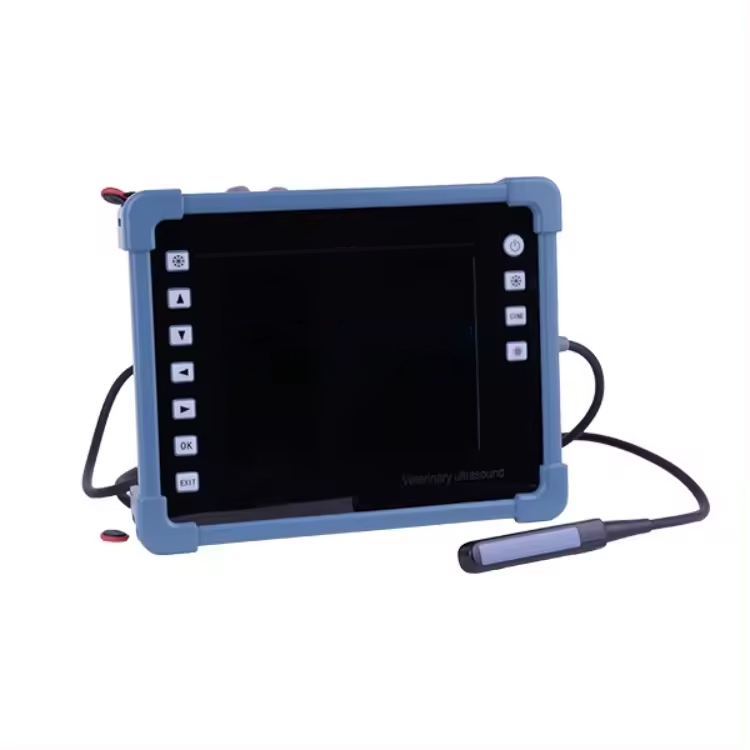

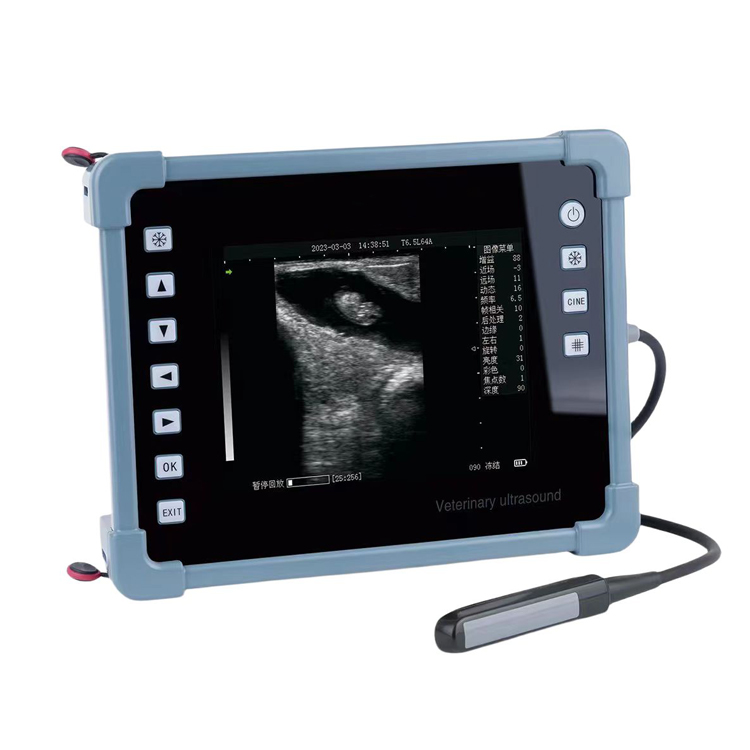

CHY8 Professional Veterinary Digital B-Ultrasound Diagnostic Instrument For Cattle Sheep etc.

CHY8 Professional Digital B-Ultrasound is high-quality instruments, which is with 8 inch ultra-clear LCD screen, bigger and clearer. It's a 16-color handheld ultrasound machine, a variety of colors can be adjusted. It supports multiple probes.
It has dual-row key combination, can quickly read out the size of the measurement target. And the whole machine is waterproof. It has a variety of animal obstetrics measurement software package.

Applications: dairy farm, enterprises of the dairy industry.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

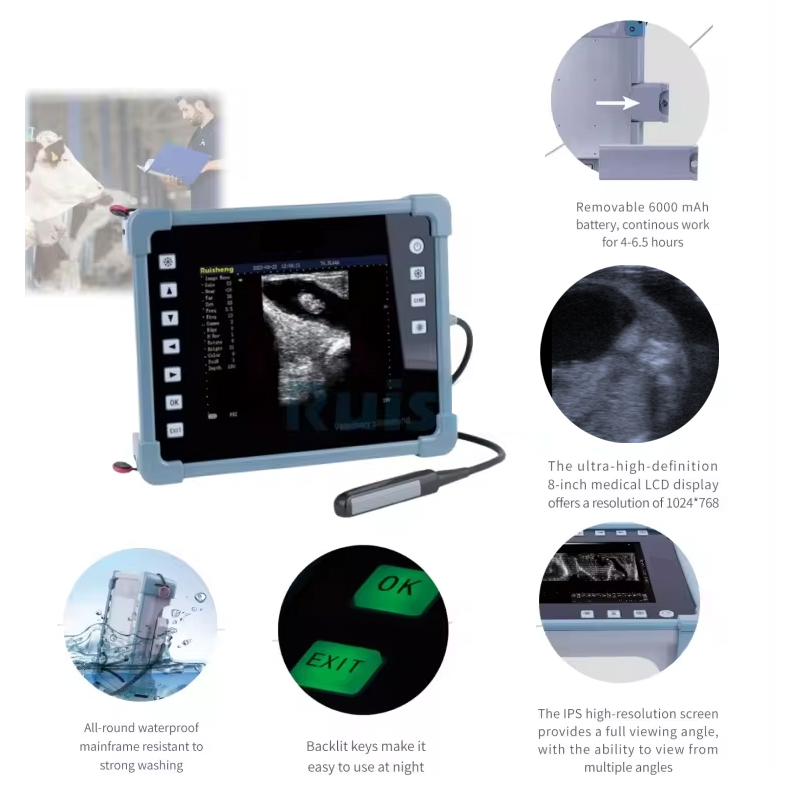

Features

  1. Ultra-clear 8-inch large LCD medical display with 1024*768 resolution, wide viewing angle, 120 ° can be normal observation

  2. The whole machine is waterproof, dust proof, and can be directly washed with water, convenient for sterilization and cleaning

  3. Internal and external dual screen, explosion-proof and scratch-proof

  4. Physical buttons on the left and right sides of the mainframe, convenient for left and right-handed operation.

  5. Rubber-coated design, drop-proof and shock-proof

  6. Backlit buttons, easy to operate in the dark room

  7. Video playback function, save picture function

  8. Support electronic convex probe, rectal probe, micro-convex probe, high-frequency line array probe, special probe with handle for sheep, back fat probe

  9. Supports manual, automatic and rapid back fat measurement, as well as the measurement of eye muscle area

  10. Specialized obstetrical measurement kit

  11. Rotatable image and black and white interface

  12. The probes are fully waterproof, and each probe supports five frequency conversion functions

  13. Five inspection modes

  14. High-capacity battery for up to 8 hours of normal operation

  15. Cine loop, frame playback, and video playback functions

  16. Save images at will with 32GB internal memory

  17. Quickly read detection target sizes with grid scale and point scale functions

  18. The device offers various settings including time and date, video output, TV mode, key tone switch, parameter mode, standby protection, multi-language selection, and pregnancy week customization


Host material
ABS
Mainframe weight
0.86kg
Screen size
8.0 inch
Screen resolution
1024*768
Available Languages
Chinese, English,Spanish,Russian,French,Portuguese

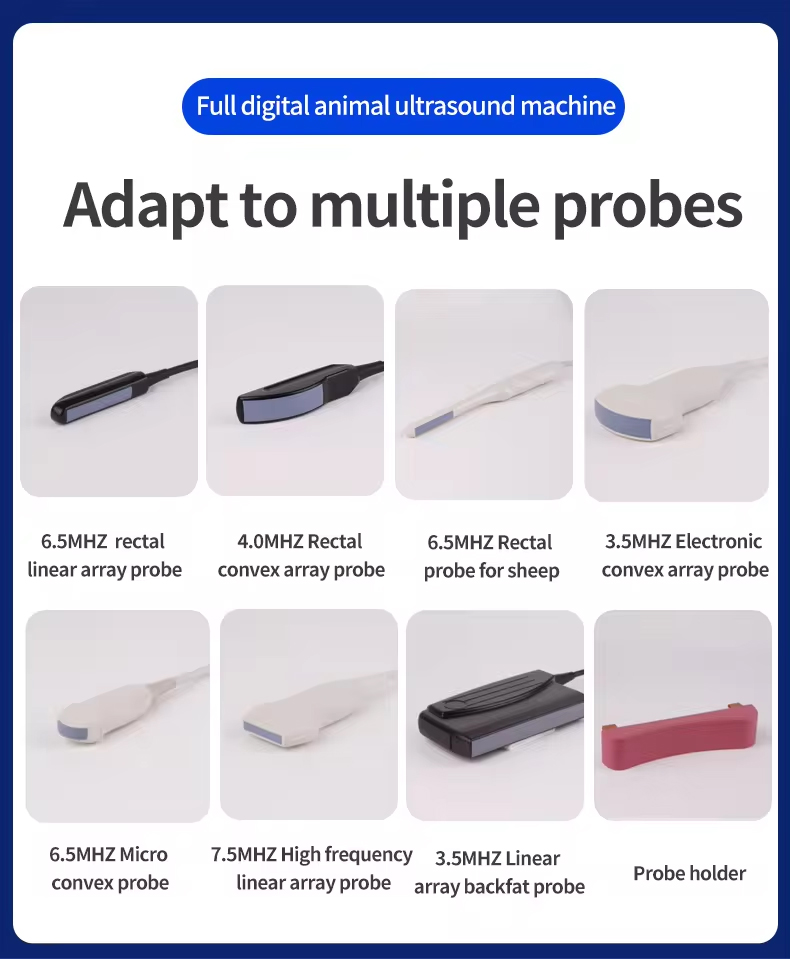

Support Probes
3.5MHz electronic convex array probe, 6.5MHz micro convex probe, 7.5MHz high frequency line array probe, 6.5MHz veterinary rectal line array probe, 4.0MHz veterinary rectal convex array probe, 3.5MHz backfat probe, 6.5Mhz sheep specific probe with handle
Display Mode
B,B+B,4B,B+M,M
