THY6 Veterinary Upscale Digital B-Ultrasound Diagnostic Instrument For Cattle Horse

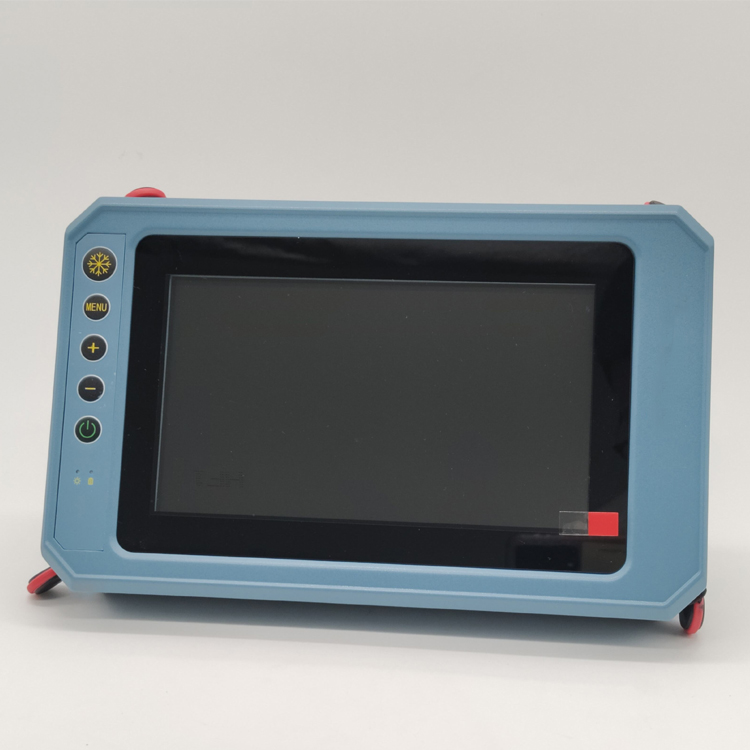

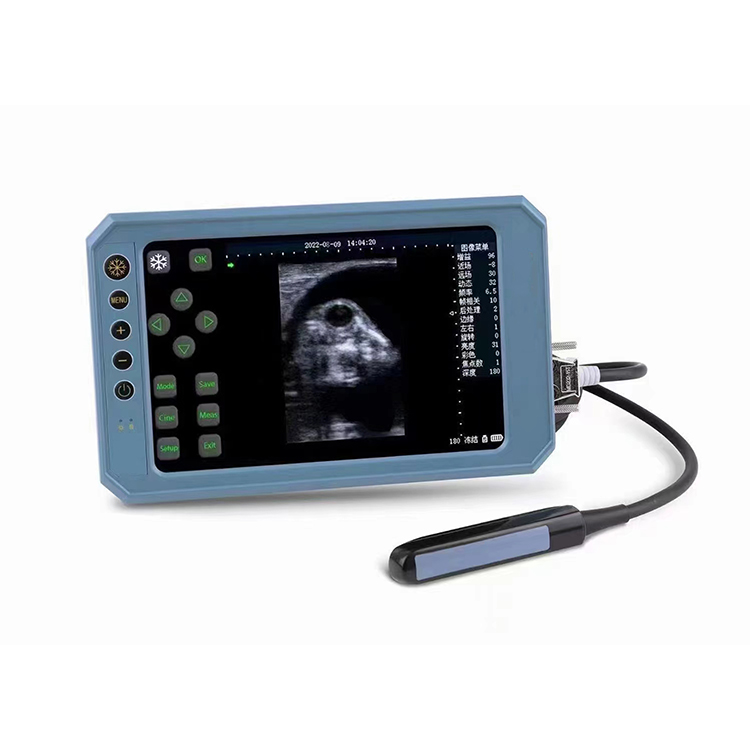

THY6 Upscale Digital B-Ultrasound is high-quality instruments, which is with 7 inch ultra-clear LCD touch screen, bigger and clearer. The machine has inside and outside the dual screen, ultra-high definition imaging. It supports multiple probes. And the probe is fully waterproof. Two optional probes of rectal line array probe and rectal convex array probe for cattle as well as rectal probe with handle for sheep, electronic convex array probe, etc. It has function of movie playback, can store 10,000 images. And the rectal probe is without conversion box, more convenient for operating.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video


Features:

1. 7 inch large touch screen, inside and outside the dual screen, ultra-high definition imaging.
2. Optional probes of rectal line array probe and rectal convex array probe for cattle.
3. Sheep special rectal probe with handle, electronic convex array probe, etc.
4. Grid ruler, point ruler
5. Movie playback, can store 10,000 images
6. Specialized measurement: Obstetrics and cardiology measurement for 8 kinds of animals.
7. Three kinds of back fat measurement
8. Rectal probe without conversion box, more convenient for operation
9. Support external U disk, monitor, printer, etc.


Host material
ABS
Mainframe weight
0.86kg
Host size
236x148x42mm
Screen size
7.0 inch
Available Languages
Chinese, English,Spanish,Russian,French,Portuguese
Support Probes
3.5MHz electronic convex array probe, 6.5MHz micro convex probe, 7.5MHz high frequency line array probe, 6.5MHz veterinary rectal line array probe, 4.0MHz veterinary rectal convex array probe, 3.5MHz backfat probe, 6.5Mhz sheep specific probe with handle
Display Mode
B,B+B,4B,B+M,M
Measurement Functions
Routine measurements, backfat measurements, cardiac measurements, obstetric measurements
