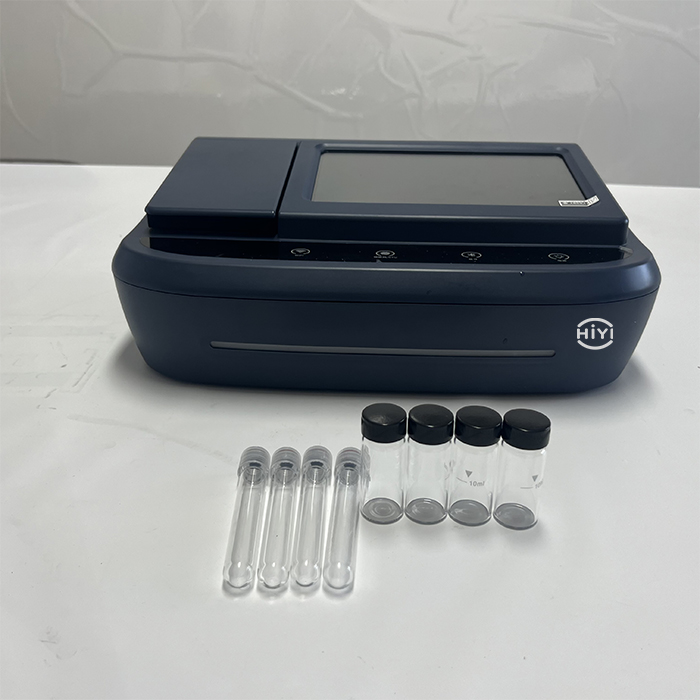

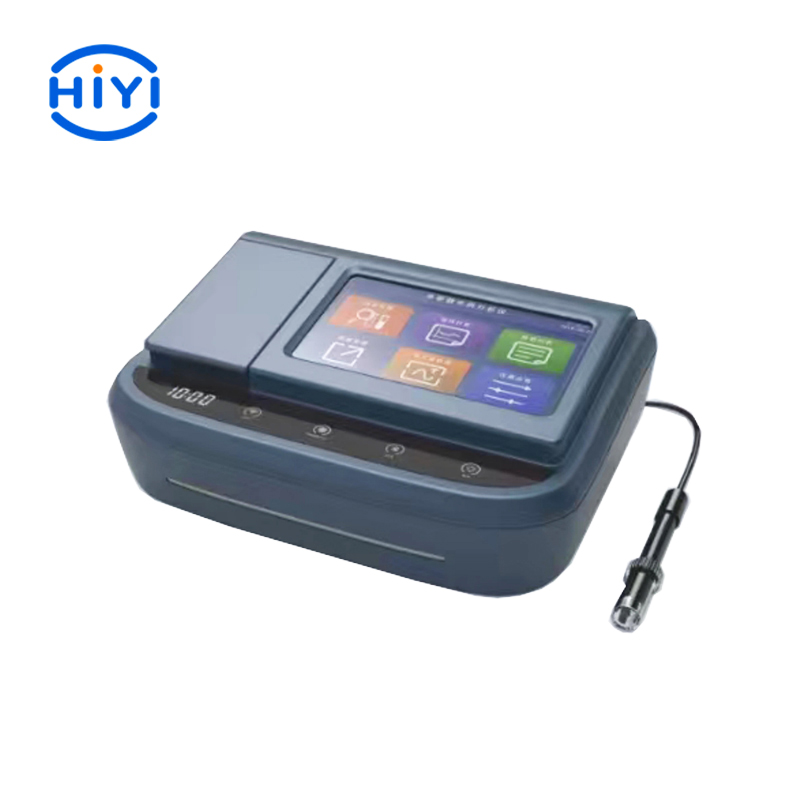

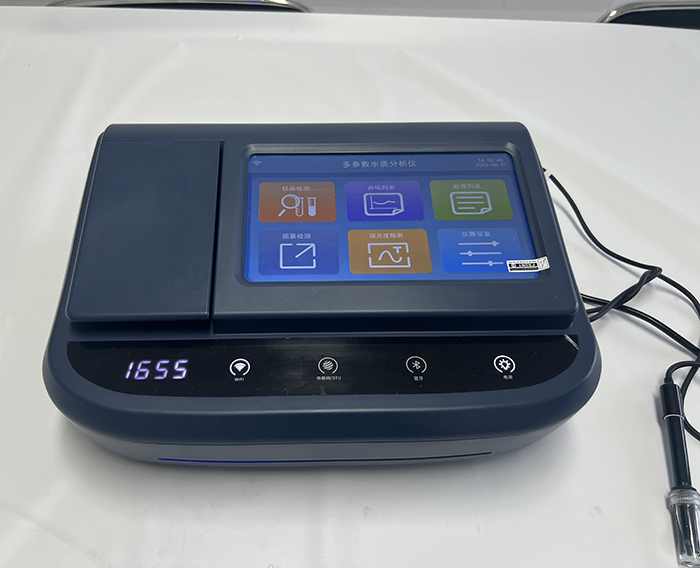

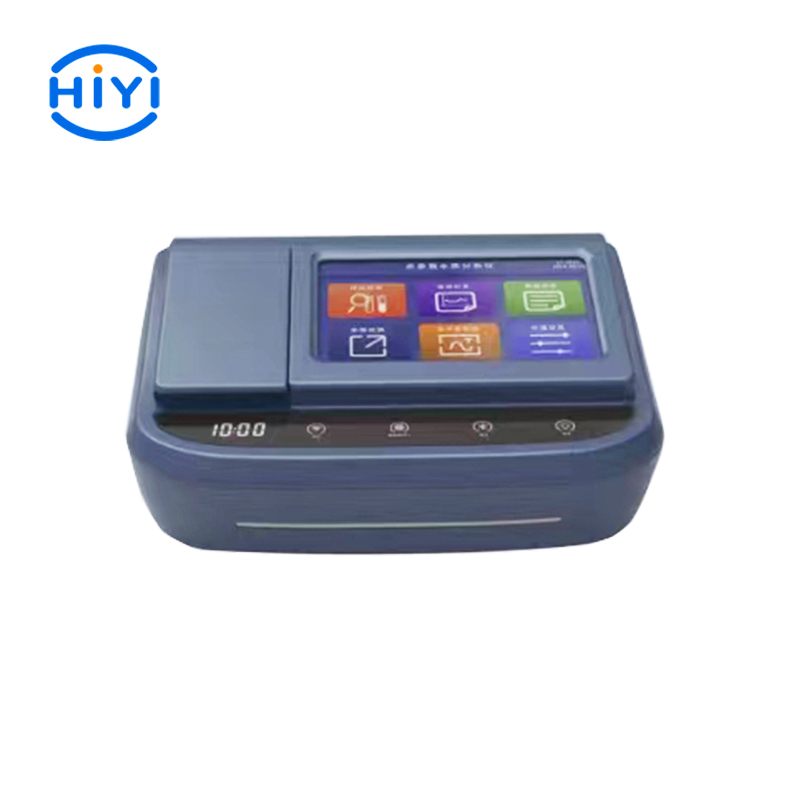

HY-360 Multi-parameter Water Quality Analyzer
HY-360 This instrument uses LED cold light source, stable performance, easy to operate, with 10-inch color touch operation screen, equipped with parallel light detection structure, with long life, low maintenance, high precision, fast detection, data accuracy and other characteristics.
IoT Remote Viewing
Dual mode transmission
10 inch touch color screen
Connectable to Bluetooth printers
External electrodes can be connected
LED cold light source
Parallel light detection
Self-developed instruments
Research Institutes, Environmental Monitoring, Dyeing & Textile, Leather & Garment, Metallurgy & Steel, University Laboratories, Wastewater Engineering, Paper & Printing, Petrochemicals, Biological Properties.
| Basic parameters |
| Product Power | DC 12V/5A |
| Filter Life | 5 Years |
| Light source life | 100,000 hours |
| Light Path Stability | ≤±0.002Abs/30min |
| Absorbance Resolution | 0.001Abs |
| Absorbance detection range | 0-3.5Abs |
| Operation Repeatability | ≤±0.005Abs |
| Use environment | Temperature 0-50°C, Relative humidity 0-90%(non-condensing) |
| PH temperature electrode measurement range | 0-14pH 0-80°C |
| pH temperature electrode measurement accuracy | ≤±0.05pH ≤± 0.5C |

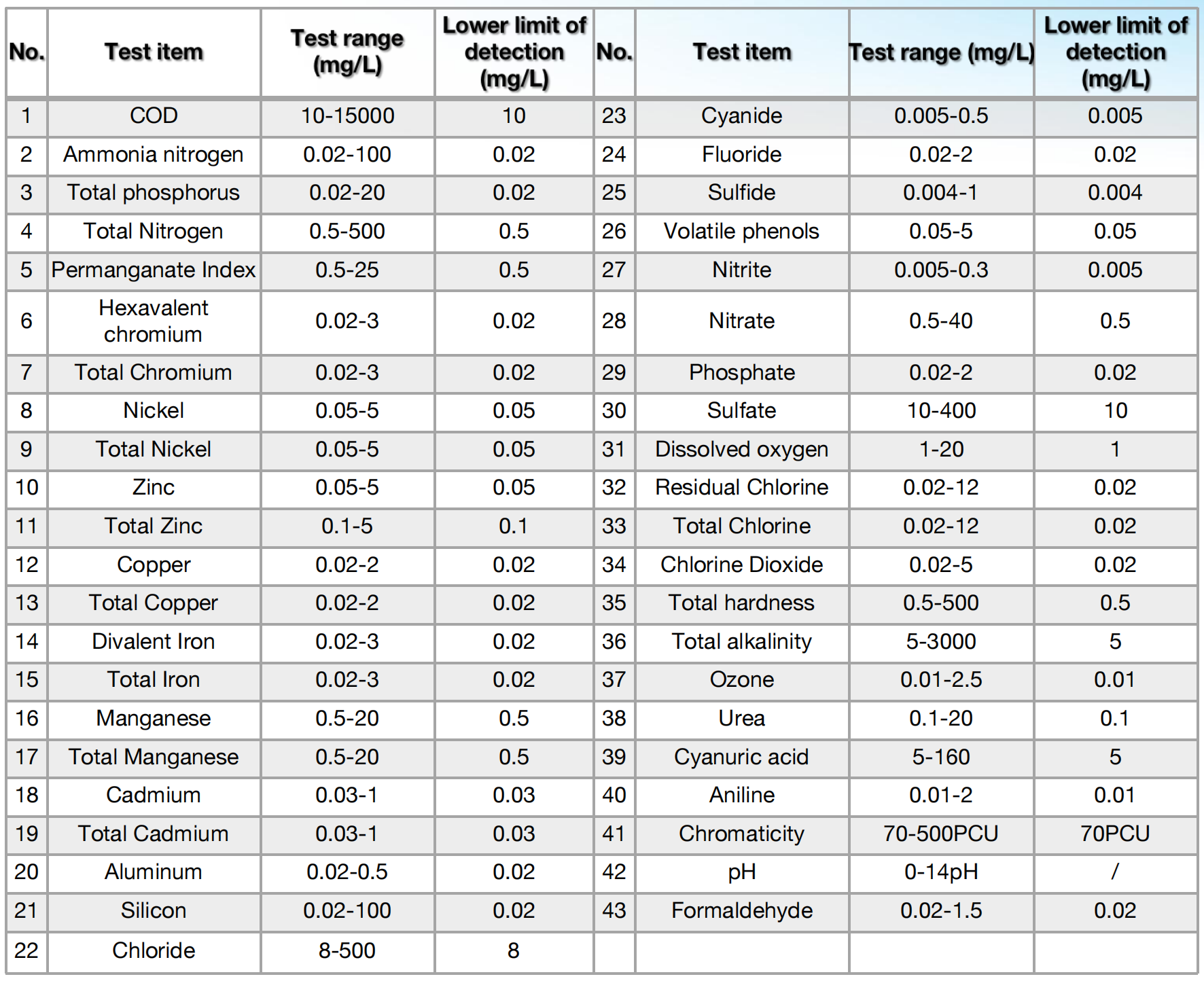

| Testing items | COD | Ammonia Nitrogen | Total phosphorus | Total Nitrogen |
| Test Method | Potassium dichromate method
potassium permanganate method | Salicylic acid method
Nascent reagent method | Ammonium molybdate method | Muscimol method |
| Detection range | 10-15000mg/L | 0.02-100mg/L | 0.02-20mg/L | 0.5-500mg/L |
| Lower limit of detection | 10mg/L | 0.02mg/L | 0.02mg/L | 0.5mg/L |
| Digestion temperature | 165℃, 20min | Non-dissolving | 150℃, 15min | 125℃, 30min |
| Measurement error | ≤±5% or ±4mg/l | ≤±5% or 0.1mg/l | ≤±5% or ±0.04mg/l | ≤±5% or ±0.4mg/l |
| Repeatability | ≤±3% | ≤±3% | ≤±3% | ≤±3% |
