High Speed Microhaematocrit Centrifuge With 24 Place Rotor

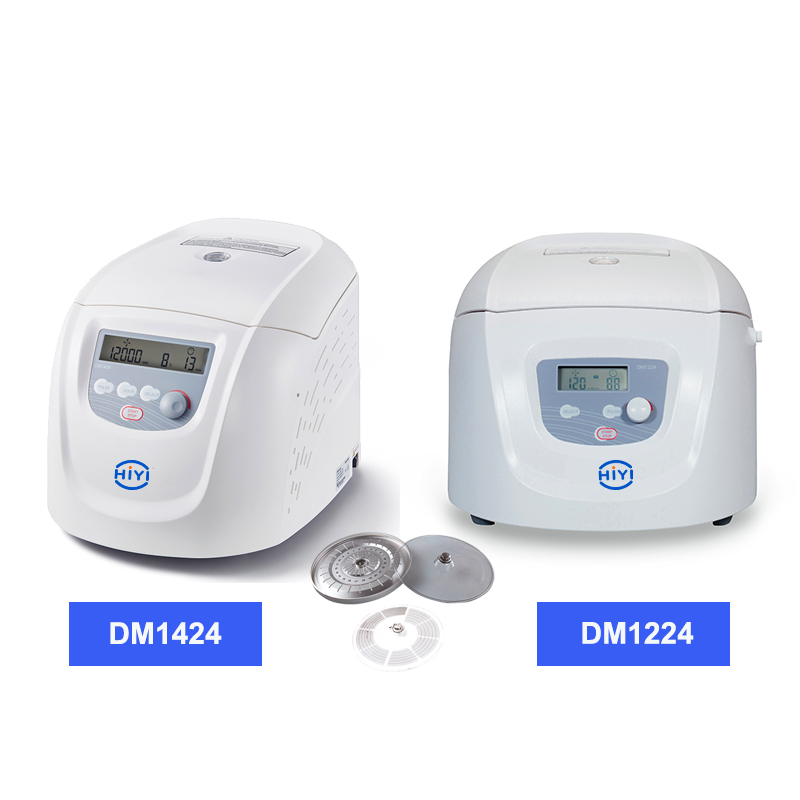

The DM1224 Hematocrit High Speed Digital Centrifuge with AC24P 24 place rotor (max speed 12,000rpm) is used for determination of volume fractions of erythrocytes in blood and also for separation of micro blood and solutions (PCV).
Features:
• High accuracy of speed, excellent performance
• CPU controls all operating parameters including speed and time
• RPM or G-force can be set and displayed
• Operation can be timed from 10 seconds to 99 minutes or continuous running
• Timer commences once the set speed is reached, so the separation time is more accurate
• Gentle braking at low speeds with efficient separation
• Parameters can be modified after the set speed is reached
• Quick spins are possible by pressing and holding PULSE key
• Manual release lid when operation has stopped
• Easy-to-read LCD processing display and sound alert

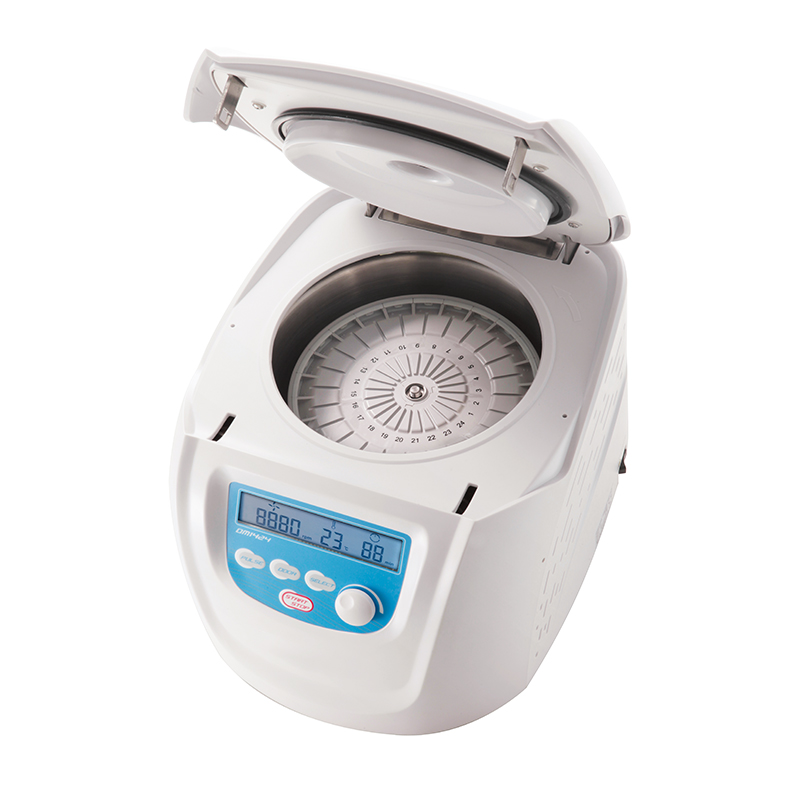

• High strength metal rotor and excellent balance technology for quiet and stable operation
• Brushless motor drive quickly and effortlessly accelerates the rotor to set speed
| Specifications | DM1224 |
| Speed Range | 500-12000rpm,
increment: 100rpm |
| Max. RCF | 13680×g |
| Speed Accuracy | ±100 |
| Rotor Capacity | 24x capillary tubes |
| Run Time | 10sec-99min/Continuous |
| Motor | Brushless DC moto |
| Display | LCD |
| Safety Devices | Door interlock |
| Acceleration/Braking time | 40s↑40s↓ |
| Power | Single-phase,
200V-240V,50Hz/60Hz, 5A;
380W |
| Dimension [D×W×H] | 280×364×213mm |
| Weight | 10kg |
| Certification | - |
| Advanced Features | Speed/RCF switch;Short-time run
function; sound-alert function |
