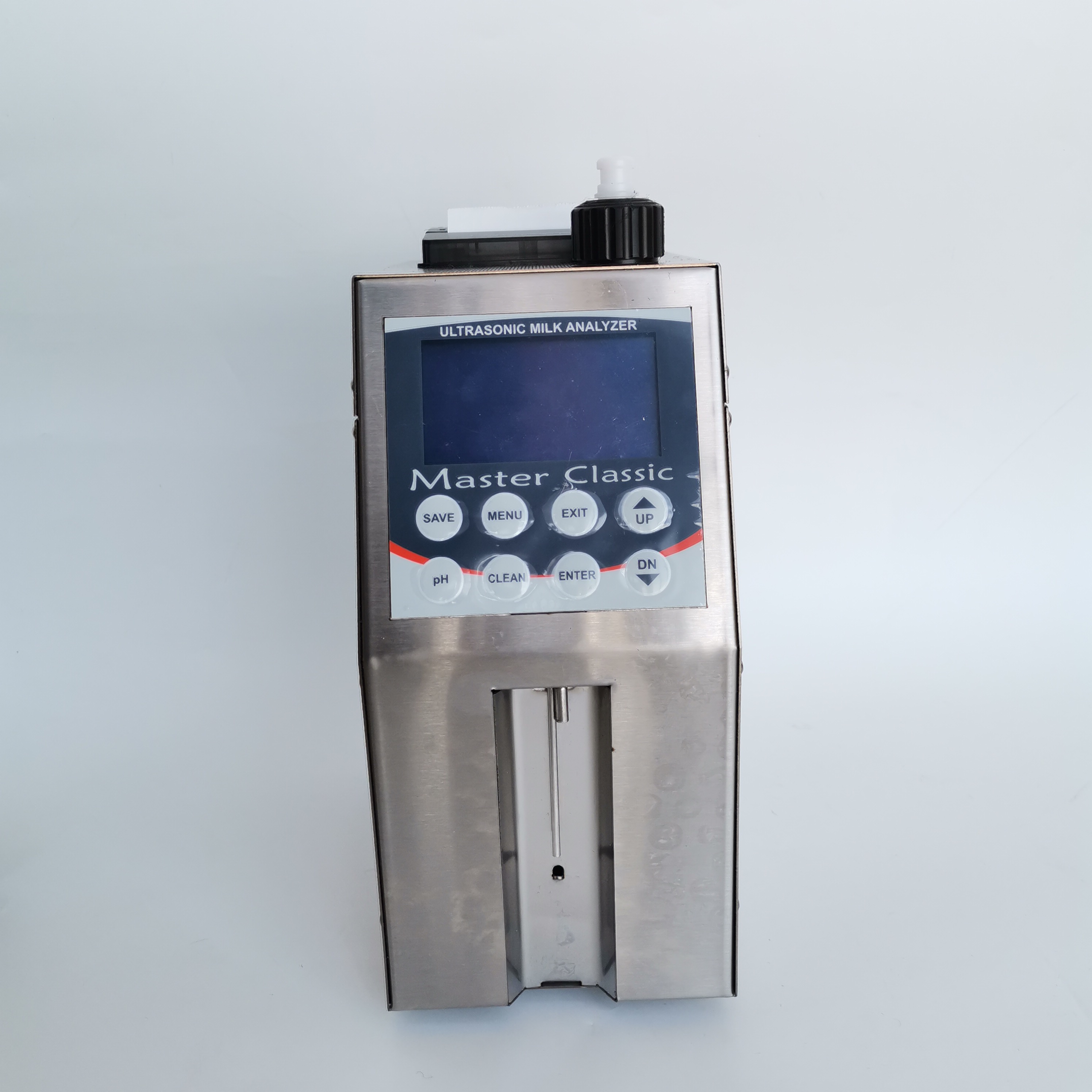

LM2 Ultrasonic milk analyzer is high-quality device for measuring the main 9 components of any type of animal milk. It is user friendly with simple operation and maintenance. LM2 is compact with durable stainless steel body. This milk analyzer is accurate and reliable, making it equally good choice for farms and dairy plants.
LM2 Ultrasonic milk analyzer is high-quality device for measuring the 11 components of any type of animal milk. It is user friendly with simple operation and maintenance. LM2 is compact with durable stainless steel body.
LM2 Analyzer can be connected to PC and easily transfer data to computer. The ultrasonic milk analyzers do not require the use of chemicals or reagents for testing milk. LM2 is excellent for dairy plants, collecting centers and any size of farms.
Products Features
Ultrasonic Technology
Very small quantity of milk needed
Memory for 50 measurements
pH (option)
Self calibration without computer
Low power consumption
1 x RS232 connection
1 x USB connection to PC
ESC POS Printer Support
Built-in keypad
Large graphic display
One year full waranty
Clock (time and date)
No acids or other chemicals are used
Peristaltic pump
Technical Parameters
Parameters
Sample vоlume
20 ml
Measurement speed
60/30 sec.
Sample temperature
5˚ C – ˚40 C
Humidity
0 – 80 % RH
Interface
RS 232 Port USB Port
Overall Size (W x D x H)
110/280/195mm
Mass/ kg
2 kg.
AC supply voltages
95-250 V
DC power supply
12V
Measuring Parameters
Component
Range
Accuracy
FAT
0% – 25%
±0.1%
SNF
3% – 40%
±0.15%
Density
1000 – 1160 kg/m³
±0.3 kg/m³
Protein
2% – 15%
±0.15%
Lactose
0.01% – 20%
±0.2%
Salts
0.4% – 4%
±0.05%
Added water
0% – 70%
±3%
Sample Temperature
1°C – 42°C
±1°C
Sample speed
60/30sec.
±0.1sec.
Freezing point
-0.4°C to -0.7°C
±0.005°C
Electrical conductivity *(Option)
2-14mS/cm
±0.1mS/cm
pH*(Option)
0-14
±0.05
HiYi Dairy Testing Solution

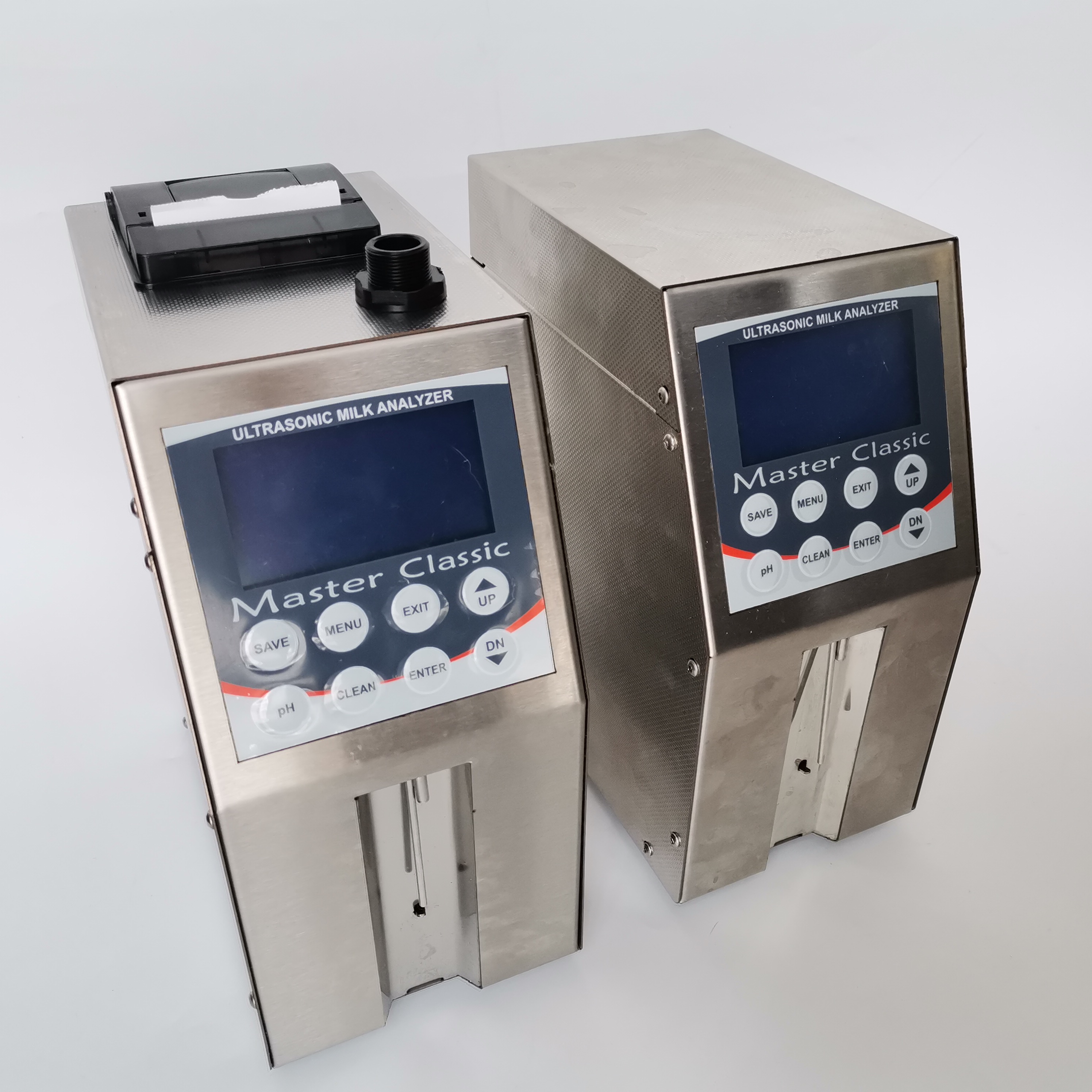

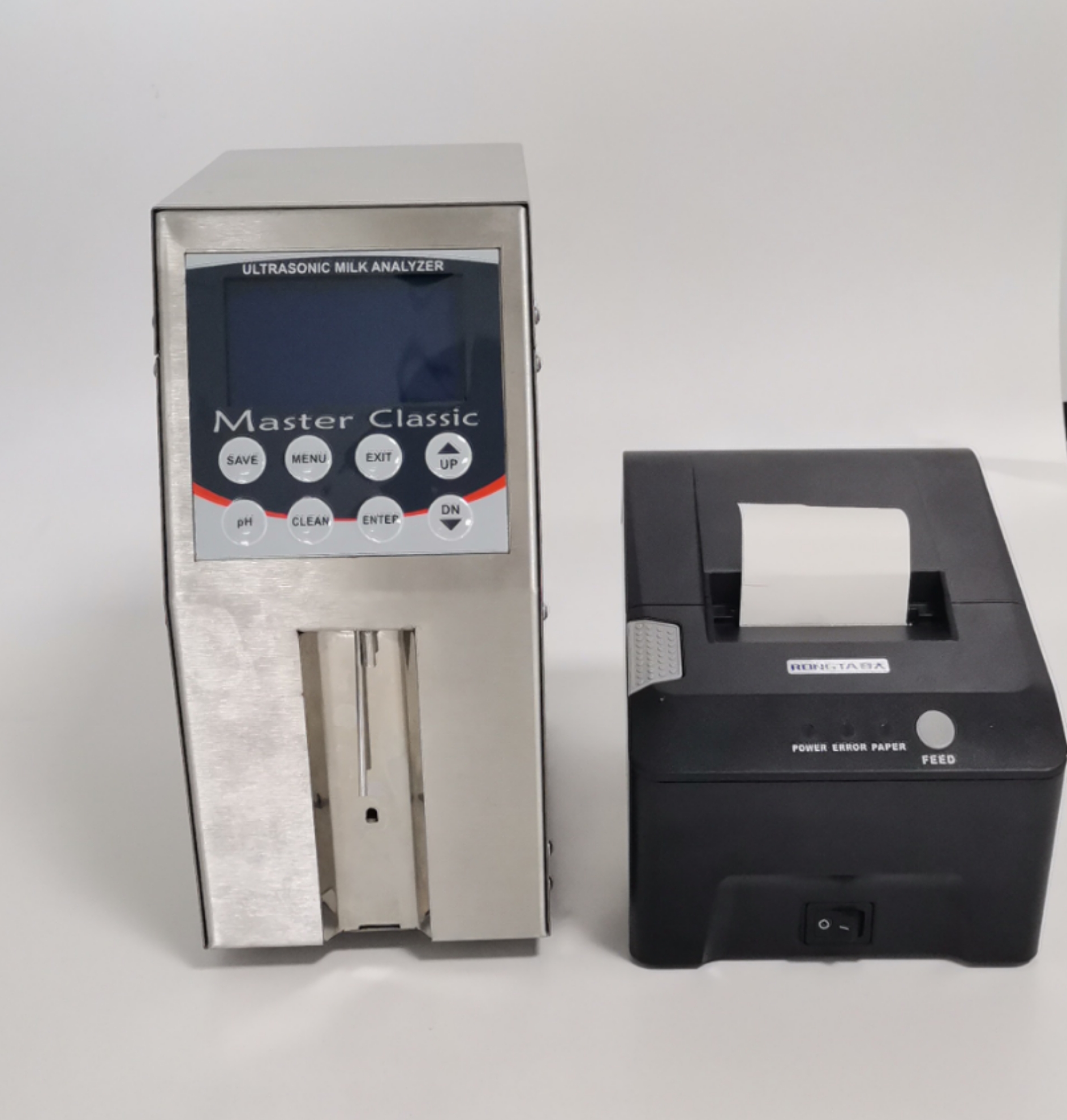

LM2 Milk Analyzer with pH/Conductivity/Built-in Printer
