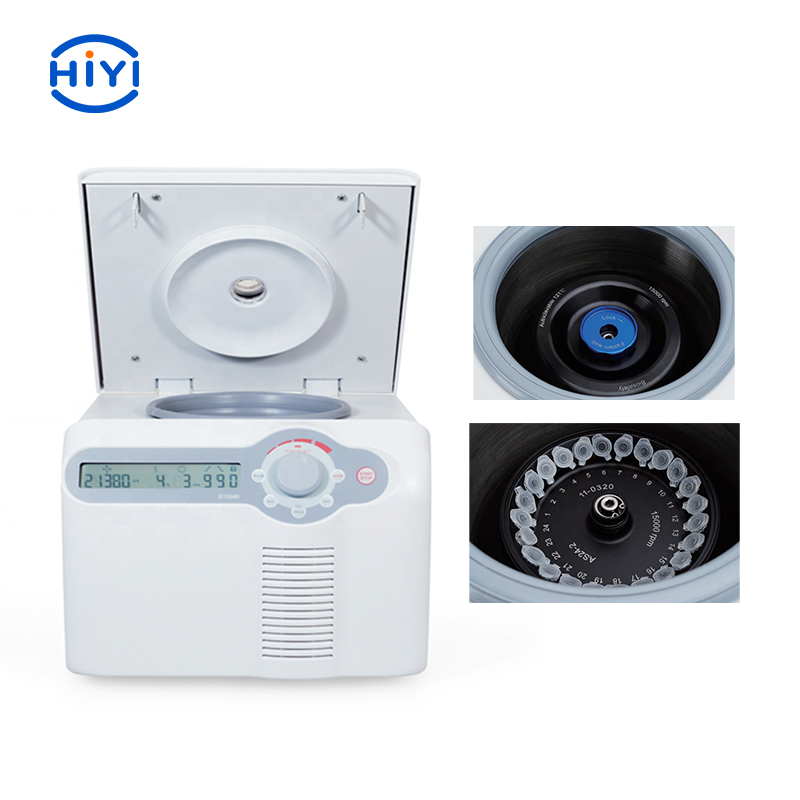

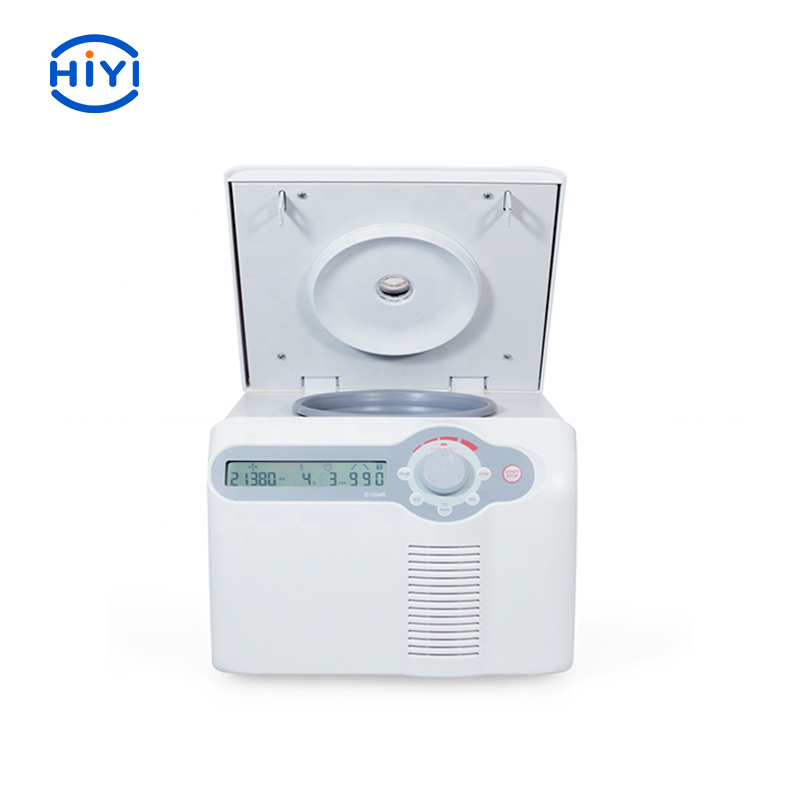

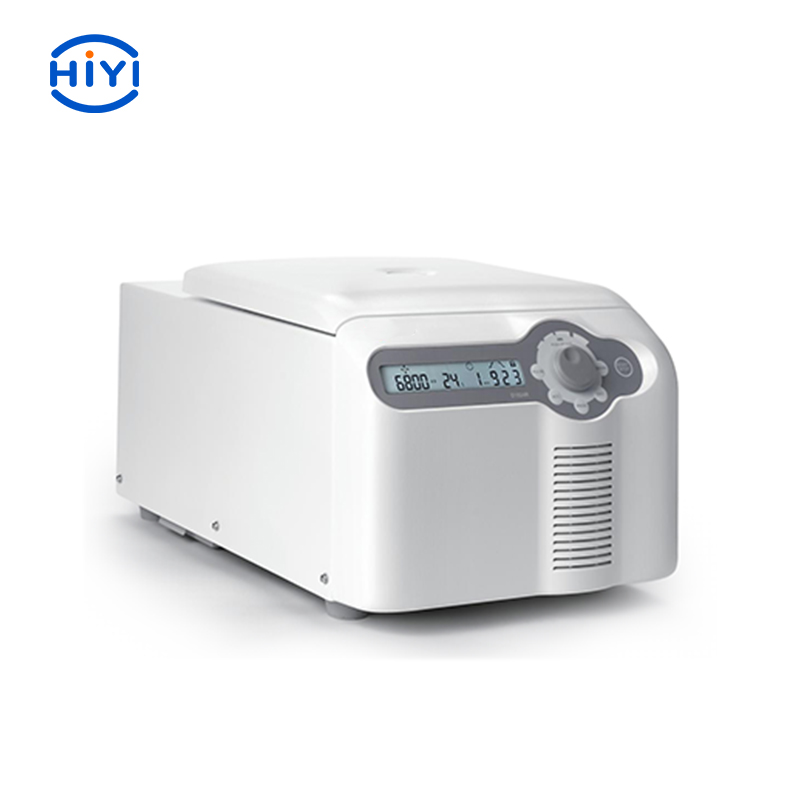

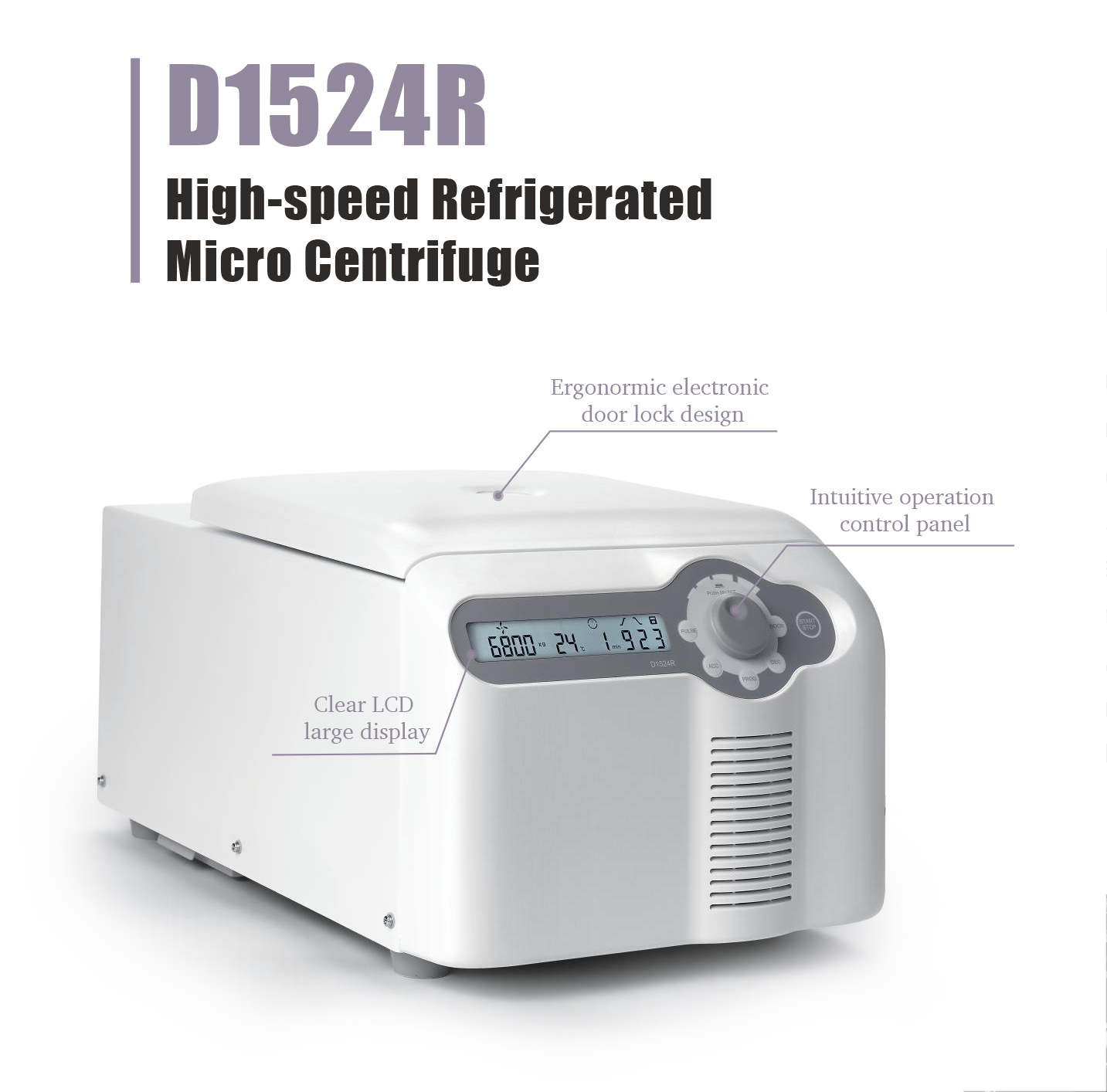

D1524R High-speed
Refrigerated Micro Centrifuge
Features:
* Electronic Magnetic door locking system - the lid can be closed with one fugure touch
* Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
* Sound indicator at the end of running.
* Temperature range -20℃ to 40℃
* Short pre-cooling time of only 7minutes from room temperature to 4℃
* Up to 9 program storage capacity

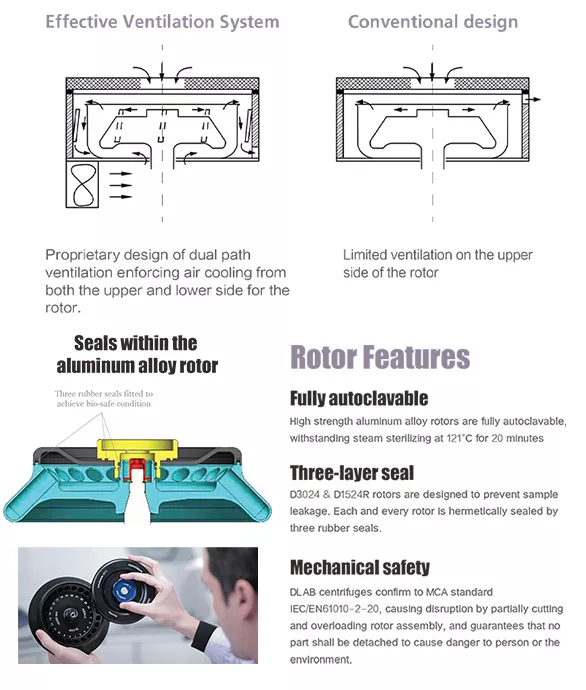

* 3-layer sealed rotors ensure safe centifugation
* High-strength aluminum alloy rotor can be fully autoclavable at 121℃
* Rotor imbalance detection alarm
* Acceleration/ deceleration in 9 steps， allows gentle braking at low speed for better separation

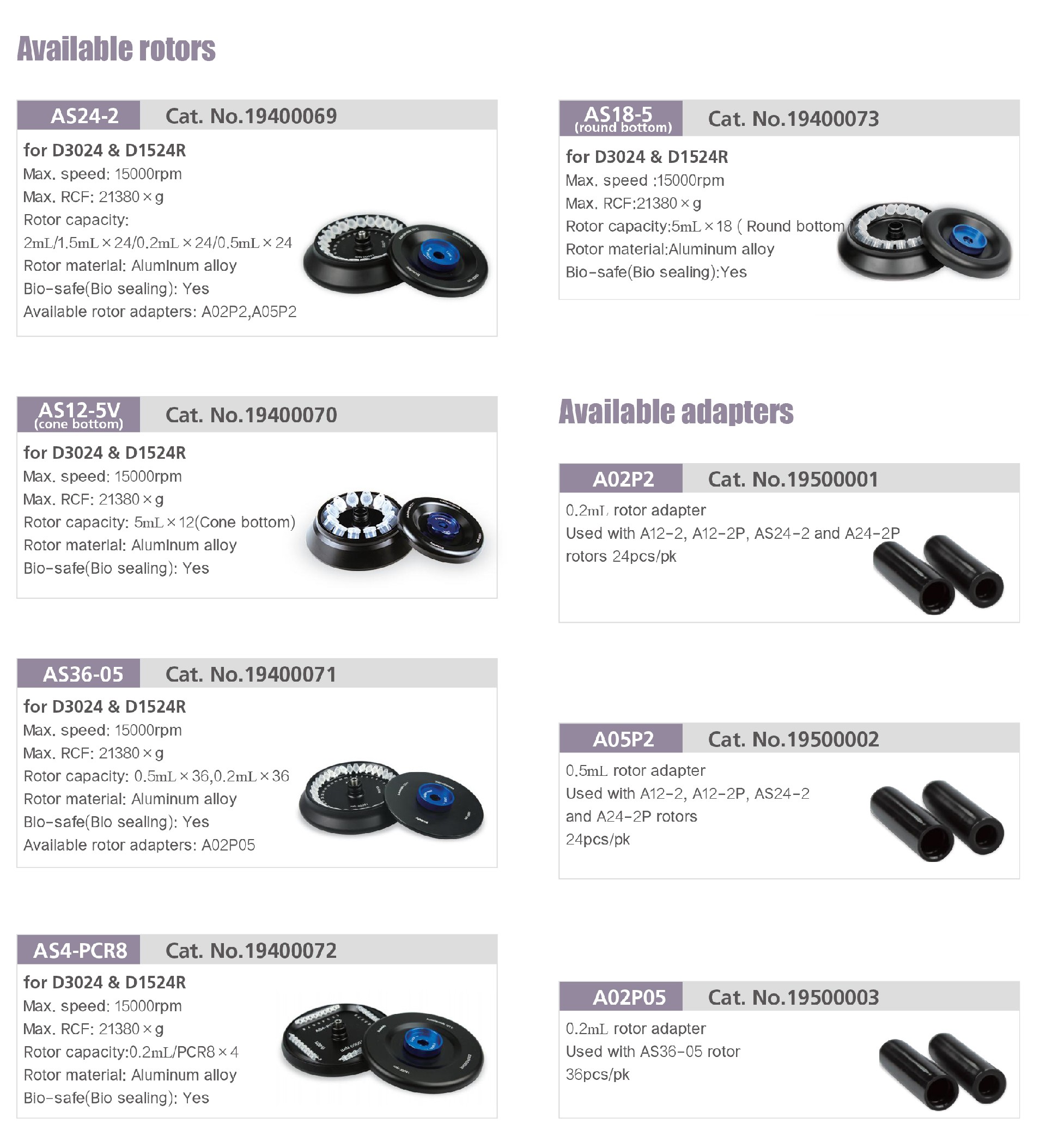

* Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
* An external condensation tank prevents water accumulation within centrifuge chamber
Application:
Ideal for centrifugation of temperature sensitive samples, such as live cells, animals or proteins. It allows them to be used in a multitude of applications, including pelleting of DNA and RNA samples, pelleting of PCR amplified nucleic acids, separation of antibody and protein precipitates, performing enzymatic tests, removing cell debris from cell homogenates, and achieving bacterial and yeast cell fractionation.
Specifications | D1524R |
Max. Speed | 15,000rpm (200-15,000rpm) in 100rpm increments. |
Max. RCF | 21,380×g, step: 10×g |
Capacity | 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18. |
Temperature setting | -20℃- 40℃ |
Timing | 30s-99 min; HOLD (continuous running) |
Motor Type | DC brushless motor |
Safety Performance | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system. |
Power Requirements | Single phase, 200-240V, 50Hz, 500W |
Dimensions(mm) | 332(Width) × 553(depth) × 283(height) |
Weight | 30kg |
Acceleration and deceleration time | 25s↑25s↓ |
Noise | ≤56dB |
Other functions | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps,
program storage capacity. |
