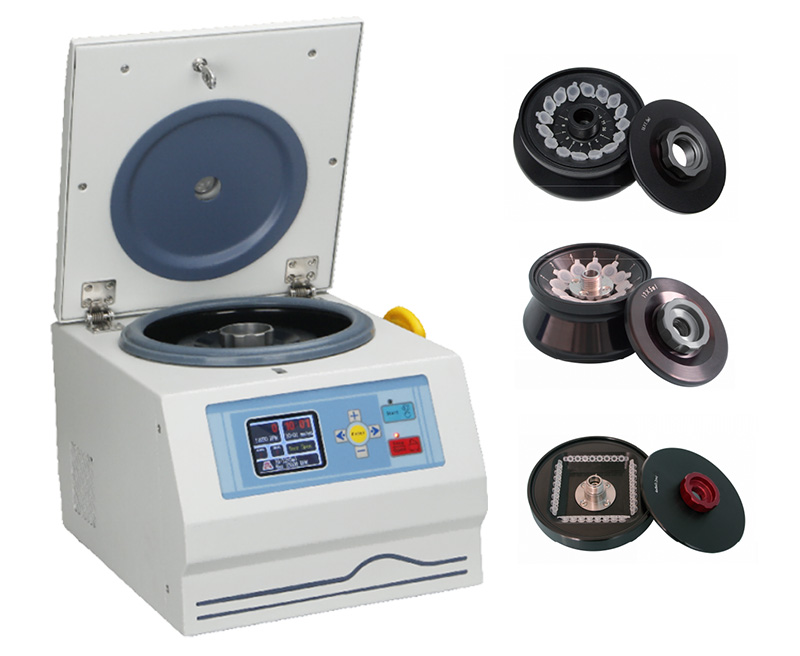

HY116C High Speed Table Centrifuge
◆ The microcomputer control system of the whole machine is driven by a large torque variable frequency motor, with faster lifting speed, more stable and quiet operation.
◆ The machine body adopts a three-layer special anti-collision protection structure, and special noise reduction technology is added to precisely protect the safety of the machine and personnel.
◆ The machine body is made of high-quality all steel structure, and the chamber in the centrifugal chamber is made of stainless steel with environmental protection anti-corrosion coating, which is corrosion resistant and acid and alkali resistant.
◆ Food grade silicone integrated seal ring, beautiful and durable, high temperature resistant, anti-aging, corrosion resistant, no deformation and cracking.
◆ Large capacity storage of 40 sets of program groups, convenient for one key exchange, automatic calculation and synchronous display of speed and centrifugal force values.
◆ Linear drive, 10 gear acceleration/deceleration control, which can be set according to different sample attributes to ensure the best separation effect of samples.
◆ HD 2.8 inch LCD display, synchronous display of setting parameters and operating parameters, easy to operate.
◆ It is equipped with overspeed, imbalance, door cover protection, overcurrent, rotor fault and other protection functions to ensure personal and machine safety.
Technical Parameter：
| Model | HY116C |
| Max Speed | 16500rpm | Voltage | AC 220±22V 50Hz 10A |
| Max RCF | 21615×g | Power | 350W |
| Max Capacity | 12×5ml | Noise Level | ≤ 62dB(A) |
| Timer | 1s～99min59s | Size | 360×270×250 (mm) |
| Revolutions/min | ±10r/min | Net Weight | 19kg
|
Technical Parameter：
| Rotor Name | Rotor NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor | 1 | 16×1.5/2.0ml | 16500rpm | 20880×g |
| 2 | 12×5ml | 15000rpm | 18036×g |
| 3 | 24×1.5/2.0ml | 15000rpm | 21615×g |
| 4 | 4×8×0.2ml PCR Row | 15000rpm | 14866×g |
| 5 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g |
| 6 | Capillary rotor 24 hole | 12000rpm | 13845×g
|
