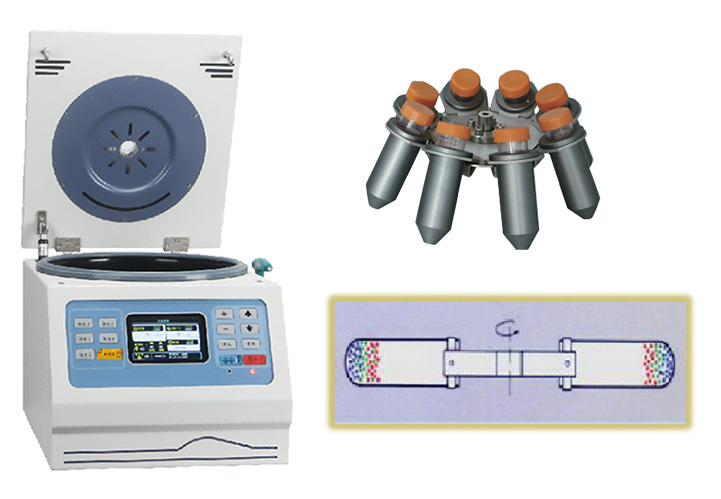

HY318C Laboratory High Speed Table Centrifuge
Intelligent Control System
◆ Program group shortcut key, large storage space, can store 99 program groups, easy to call at any time
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation
◆ Long press the start/instantaneous key to realize instantaneous centrifugation
◆ Linear drive, 10 gear acceleration, 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
Excellent kernel performance
◆ High-definition LCD large display, user-friendly interface, intuitive display, simple and convenient operation. The centrifugal force, speed,time, etc. are displayed on the same screen, and the parameters can be modified at any time during operation without shutdown.
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆The rotor automatic identification system prevents personnel from misoperation, and centrifugation is safer.
◆ The electromagnetic induction door protector with super sensitivity and double electronic door lock catch design are adopted, and the door cover protection, over-speed, over temperature, imbalance and other multiple early warning protection functions are provided to ensure safe operation.
◆ The fuselage is protected by three layers of high-quality all steel structure, and the centrifugal inner chamber is treated by professional environmental protection anti-corrosion process, which is corrosion
Model | HY318C |
Max Speed | 18000rpm | Power | 1200W |
Max RCF | 31115×g | Noise Level | ≤ 60dB（A） |
Max Capacity | 4×100ml | Dimensions (L x W x H) | 480×360×330(mm) |
Timer | 1s～99h59min | Net Weight | 38kg |
Revolutions/min | ±10r/min | Automatic rotor identification | Yes |
Voltage | AC 220±22V 50Hz 15A | / | / |
Rotor Name | Rotor No. | NO. | Rotor Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 24×1.5/2.0ml | 18000rpm | 31115×g |
2 | 2 | 12×5ml | 15000rpm | 18306×g |
3 | 3 | 32×1.5/2.0ml | 14000rpm | 19940×g |
4 | 4 | 8×8×0.2ml PCR | 14000rpm | 15032×g |
5 | 5 | 48×1.5/2.0ml | 13000rpm | 18327×g |
6 | 6 | 12×10ml | 13000rpm | 15228×g |
7 | 7 | 6×50ml(round bottom) | 13000rpm | 17146×g |
8 | 8 | 6×50ml( Conical/round bottom) | 12000rpm | 16227×g |
9 | 9 | 12×15ml (Conical bottom) | 11000rpm | 13730×g |
10 | 10 | 4×100ml | 11000rpm | 14298×g |
Swing-out rotor | 11 | 11 | 24×1.5/2.0ml | 13000rpm | 16816×g |
12 | 12 | 4×100ml | 4500rpm | 3010×g |
13 | 13 | Micro-plate 2×2×96 hole | 4000rpm | 2057×g |
14 | 14 | 8×50ml( Conical/round bottom) | 4000rpm | 2680×g |
