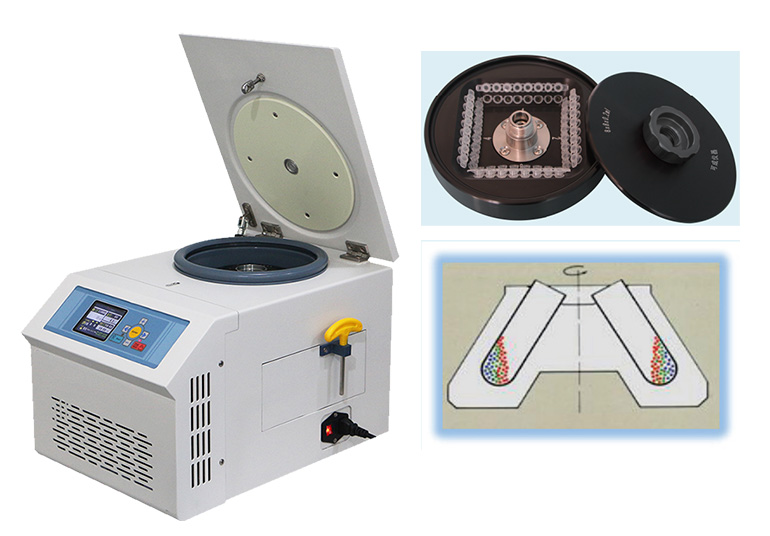

HYR116C High Speed Table Refrigerated Centrifuge
◆ The microcomputer control system of the whole machine is driven by a large torque variable frequency motor, with faster lifting speed, more stable and quiet operation.
◆ The machine body adopts a three-layer special protection structure to precisely protect the safety of the machine and personnel.
◆ The machine body is made of high-quality all steel structure, and the centrifugal chamber is made of stainless steel, which is safer and more durable.
◆ Food grade silicone integrated seal ring, beautiful and durable, high temperature resistant, anti-aging, corrosion resistant, no deformation and cracking.
◆ Large capacity storage of 40 sets of program groups, convenient for one key exchange, automatic calculation and synchronous display of speed and centrifugal force values.
◆ Linear drive, 10 gear acceleration/deceleration control, which can be set according to different sample attributes to ensure the best separation effect of samples.
◆ HD 2.8 inch LCD display, synchronous display of setting parameters and operating parameters, easy to operate.
◆ It is equipped with overspeed, imbalance, door cover protection, overcurrent, rotor fault and other protection functions to ensure personal and machine safety.
◆ The electronic traction structure design with ultra-high safety protection is adopted, with low noise and higher safety.
Technical Parameter：
Model | HYR116C |
Max Speed | 16500rpm | Voltage | AC 220±22V 50Hz 10A |
Max RCF | 21615×g | Power | 550W |
Max Capacity | 12×5ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99min59s | Size | 460×335×330 (mm) |
Revolutions/min | ±10r/min | Net Weight | 48kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 16500rpm | 20880×g |
2 | 2 | 12×5ml | 15000rpm | 18036×g |
3 | 3 | 24×1.5/2.0ml | 15000rpm | 21615×g |
4 | 4 | 4×8×0.2mlPCR Row | 15000rpm | 14866×g |
5 | 5 | 8×8×0.2mlPCR Row | 14000rpm | 15032×g |
6 | 6 | Capillary rotor 24 hole | 12000rpm | 13845×g |
