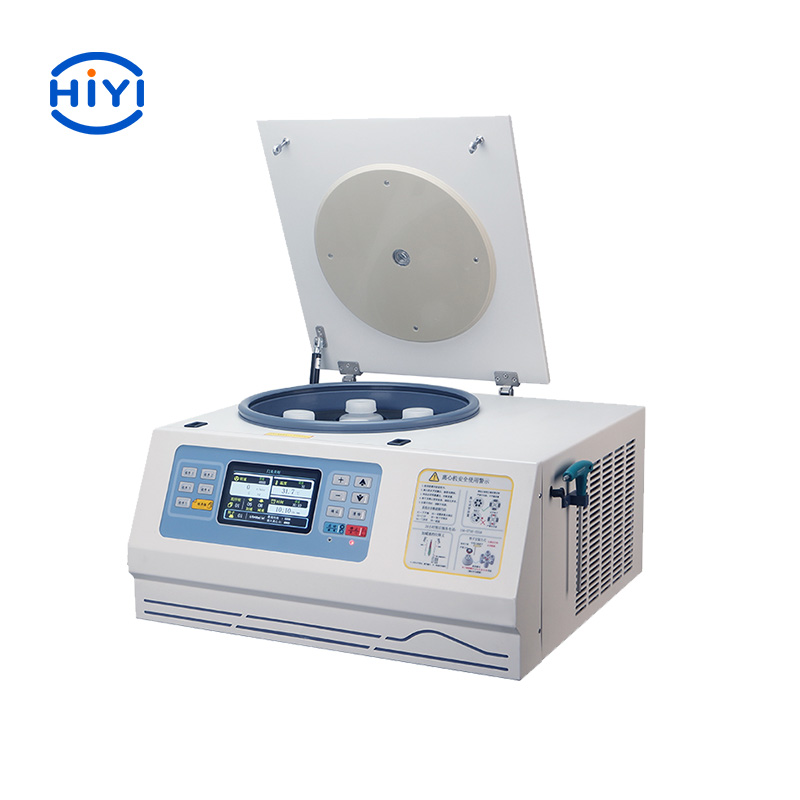

HYR36C Low Speed Table Refrigerated Centrifuge
Intelligent control system
◆ The operation interface is equipped with five groups of user-defined preset programs that can be called by one key, and the humanized design function can make the centrifugal operation easier.
◆ Program group shortcut key, large storage space, it can store 99 program groups, convenient to use at any time.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Linear drive have 10 gear acceleration and 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
◆ Two kinds of modes can be set: start timing or arrival revolution timing.
Careful and safe care
◆ The rotor automatic identification system prevents personnel from misoperation and makes centrifugation safer.
◆ The fuselage is protected by three layers of high-quality all steel structure, and the centrifugal inner chamber is treated by professional environmental protection anti-corrosion process, which is corrosion resistant.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system provides more comfortable experimental environment for experimenters.
Technical Parameter：
Model | DTR36C |
Max Speed | 6500rpm | Voltage | AC 220±22V 50Hz 10A |
Max RCF | 5091×g | Power | 1000W |
Max Capacity | 4×250ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min | Size | 595×660×365 (mm) |
Revolutions/min | ±10r/min | Net Weight | 89kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |

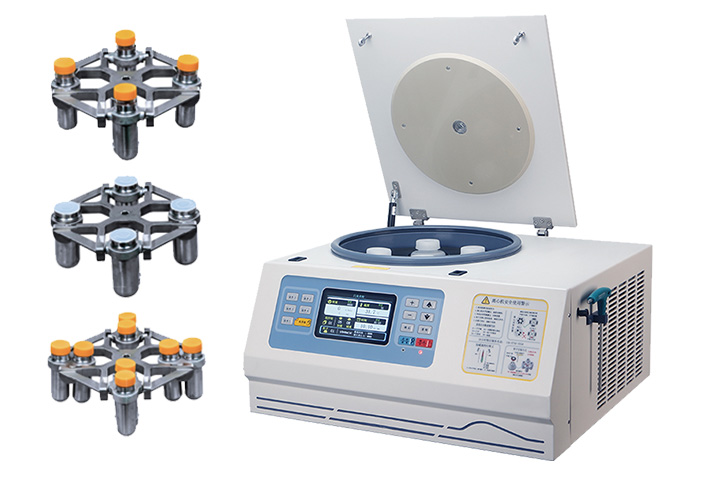

Rotor parameters：
| Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor(W) | 1 | 1 | 6×50ml | 6500rpm | 5091×g |
| 2 | 2 | 40×15ml | 5000rpm | 4919×g |
| Swing-out rotor body | 3 | 3 | It shall be used together with pipe rack |
| Pipe rack | 3 | 4 | 4×50ml | 4200rpm | 3254×g |
| 5 | 4×100ml |
| 6 | 8×50ml | 4200rpm | 3254×g |
| 7 | 8×100ml |
| 8 | 16×10/15ml Optional |
| 9 | 24×10/15ml Optional |
| 10 | 32×10/15ml Optional |
| 11 | 48×2~7ml(blood collection) |
| 12 | 64×5ml(blood collection) |
| Swing-out rotor | 4 | 13 | 4×250ml(round cup) | 4200rpm | 3352×g |
| 14 | 4×250ml(round cup)
(with biosafety lid) | 4200rpm | 3352×g |
| 15 | 4×250ml(Oval cup) | 4200rpm | 3352×g |
| Swing-out rotor body | 4 | 16 | Swing-out rotor body 4×250ml |
| Pipe rack | 4 | 17 | 56×5ml(blood collection) | 4200rpm | 3352×g |
| 18 | 16×50ml(sharp/round type) | 4200rpm | 3352×g |
| 19 | 36×15ml | 4200rpm | 3352×g |
| Swing-out rotor | 5 | 20 | Micro-plate 2×2×96 hole | 4200rpm | 2267×g
|
