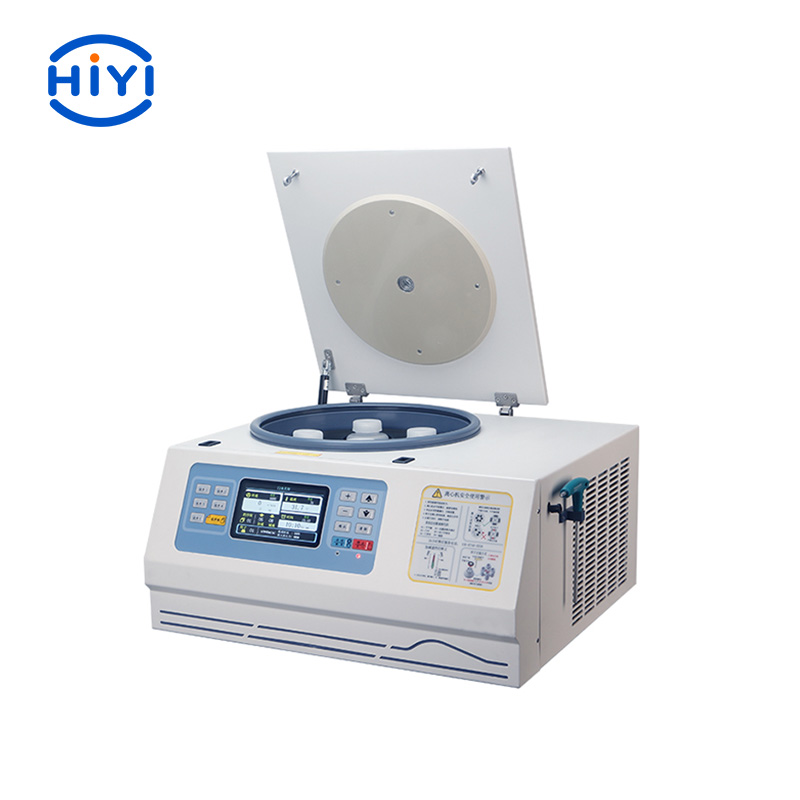

HYR46C Low Speed Table Refrigerated Centrifuge
Intelligent control system
◆ The operation interface is equipped with five groups of user-defined preset programs that can be called by one key, and the humanized design function can make the centrifugal operation easier.
◆ Program group shortcut key, large storage space, it can store 99 program groups, convenient to use at any time.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Linear drive have 10 gear acceleration and 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
◆ Two kinds of modes can be set: start timing or arrival revolution timing.
Careful and safe care
◆ The rotor automatic identification system prevents personnel from misoperation and makes centrifugation safer.
◆ The fuselage is protected by three layers of high-quality all steel structure, and the centrifugal inner chamber is treated by professional environmental protection anti-corrosion process, which is corrosion resistant.
◆ The electromagnetic induction door protector with super sensitivity and double electronic door lock catch design are adopted, and the door cover protection, over-speed, over temperature, imbalance and other multiple early warning protection functions are provided to ensure safe operation.
Intimate detail design
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system provides more comfortable experimental environment for experimenters.
Technical Parameter：
| Model | HYR46C |
| Max Speed | 6500rpm | Voltage | AC 220±22V 50Hz 15A |
| Max RCF | 5952×g | Power | 1500W |
| Max Capacity | 4×750ml | Noise Level | ≤ 60dB(A) |
| Timer | 1s～99min | Size | 660×730×445 (mm) |
| Revolutions/min | ±10r/min | Net Weight | 123kg |
| Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
| Temp Accuracy | ±1.0℃ | / | / |

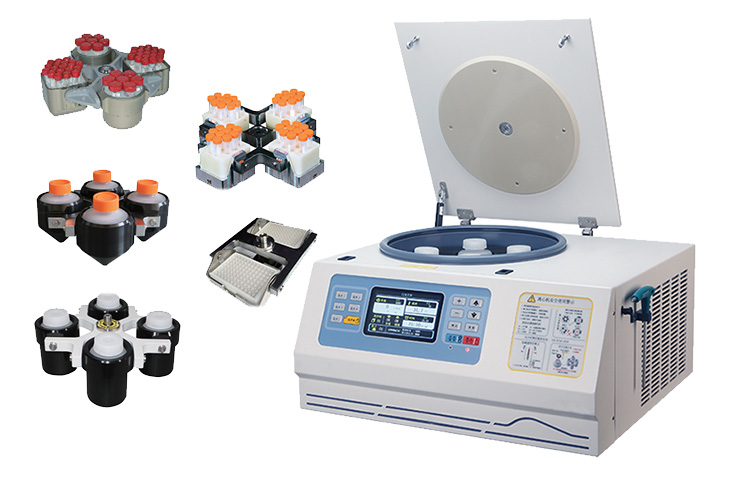

Rotor parameters：
| Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor(W) | 1 | 1 | 6×50ml | 6500rpm | 5091×g |
| Angle rotor(W) | 2 | 2 | 40×15ml | 5500rpm | 5952×g |
| Swing-out rotor | 3 | 3 | 96×2~7ml(blood collection) | 4200rpm | 3510×g |
|
| 4 | 100×2~7ml(blood collection) | 4200rpm | 3510×g |
|
| 5 | 120×2~7ml(blood collection) | 4200rpm | 3510×g |
| Swing-out rotor | 4 | 6 | 4×750ml round basket | 4200rpm | 3648×g |
|
| 7 | 4×750ml round basket/ (with biosafety lid) | 4200rpm | 3648×g |
|
| 8 | 4×750ml(Square basket) | 4200rpm | 3648×g |
| Swing-out rotor | 5 | 9 | 4×500ml(round basket) | 4200rpm | 3510×g |
|
| 10 | 4×500ml(round basket)/ (with biosafety lid) | 4200rpm | 3510×g |
|
| 11 | 4×500ml(Square basket) | 4200rpm | 3510×g |
|
| 12 | 4×500ml(Sharp type) | 4200rpm | 3510×g |
| Swing-out rotor | 6 | 13 | 4×250ml(round basket) | 4200rpm | 3352×g |
|
| 14 | 4×250ml(round basket)/ (with biosafety lid) | 4200rpm | 3352×g |
|
| 15 | 4×250ml(Square basket) | 4200rpm | 3352×g |
|
| 16 | 4×250ml(Sharp type)( | 4200rpm | 3352×g |
|
| 17 | 6×250ml(round basket) | 4200rpm | 3352×g |
| Swing-out rotor body | 6 | 18 | Swing-out rotor body 4×250ml |
| Pipe rack | 6 | 19 | 56×5ml(blood collection) | 4200rpm | 3352×g |
|
| 20 | 16×50ml(sharp/round type) | 4200rpm | 3352×g |
|
| 21 | 36×15ml | 4200rpm | 3352×g |
| Swing-out rotor | 7 | 22 | Micro-plate 4×2×96 hole | 4200rpm | 3046×g |
Swing-out rotor Square basket | 7 | 23 | Square basket include: Adapter 4×10×15ml(sharp type) Adapter 4×4×50ml(sharp type) | 4200rpm | 3046×g |
| basket |
| 24 | Micro-plate basket 4×2×96 hole | 4200rpm | 3046×g |
| Swing-out rotor | 8 | 25 | Micro-plate 2×2×96 hole | 4200rpm | 2267×g |
