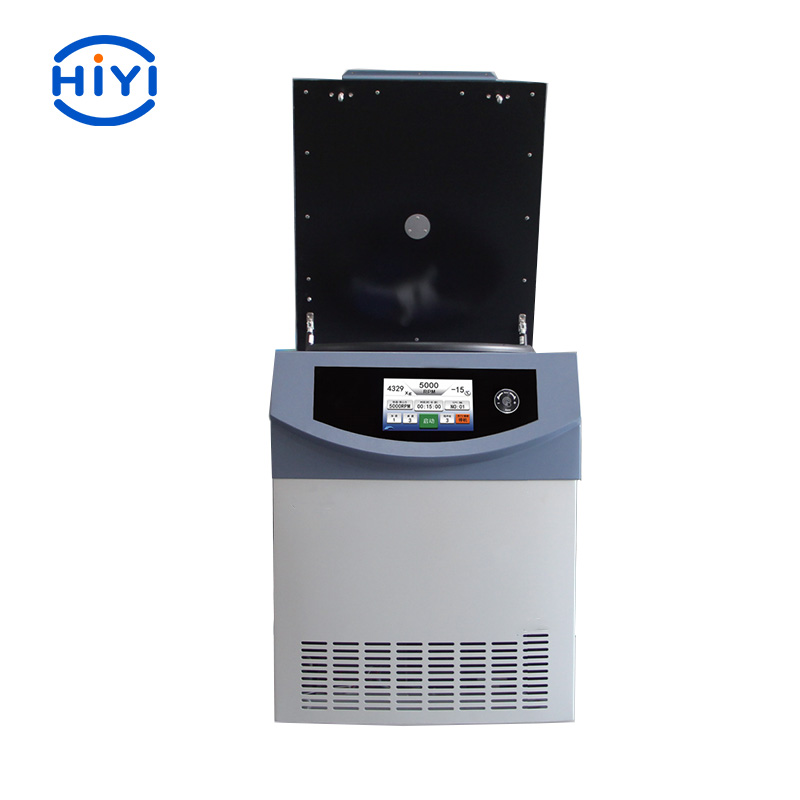

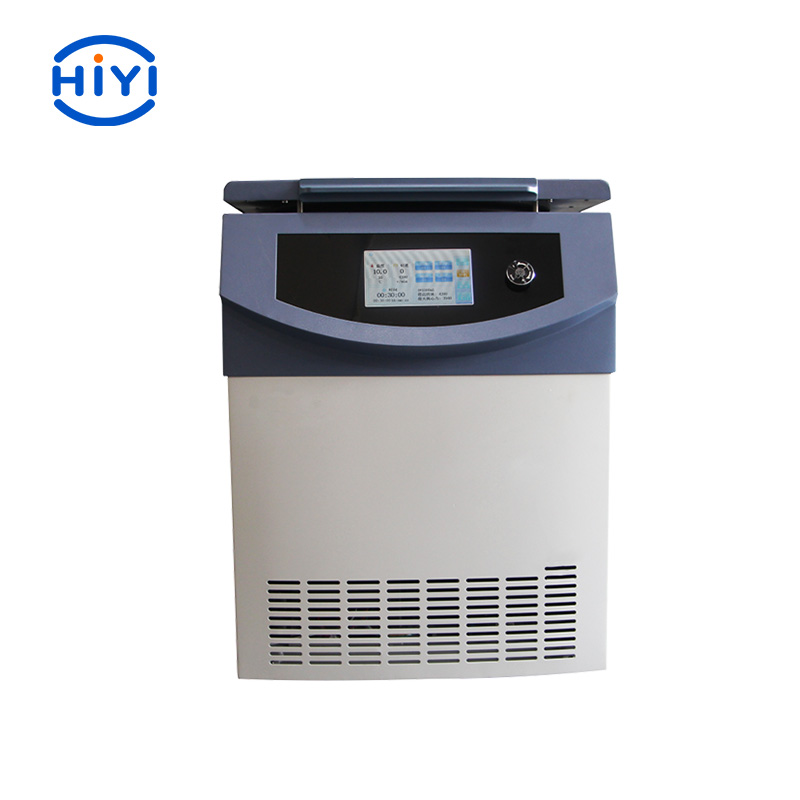

HYR16D Floor High Speed Refrigerated Centrifuge
◎ 3D high-definition LCD full touch screen plus multi-function knob Home key can be used to set and modify parameters independently, with a simple and clear interface and clear parameters.
◎ 15 kinds of speed rise and fall curves can be selected, and at least 10 differential gradient centrifugation curves can be customized.
◎ Password locking function, the user can set the password to lock the host or parameters to prevent misoperation.
◎ Speed, centrifugal force and temperature curves can be displayed on the same screen during operation to meet various centrifugal requirements. Centrifugal force is automatically converted without conversion, and the change relationship is clear.
◎ One key precooling and instantaneous centrifugation functions are provided.
◎ Large storage space, can store 99 program groups, and 99 use records and fault records can be traced.
◎ Two timing modes are available, starting timing and reaching speed timing.
◎ The electronic self-priming door lock can close the door cover with a slight press, which is protected by a steel door cover.
◎ Outward exhaust heat dissipation design, the internal circuit of the host can effectively dissipate heat, and the temperature rise in the chamber is superior to the industry standard, ensuring the safety of the sample.
◎ High quality hydraulic rod, imported damping seal, hydraulic damping will not decay for ten years.
◎ Food grade integrated silicone sealing ring, with better sealing performance.
◎ Full automatic identification system of magnetic rotor can automatically match the corresponding rotor program to prevent the rotor from overspeed use and ensure centrifugal safety.
◎ Unique noise reduction system, quieter operation.
◎ Self diagnosis function voice and text prompt and display the solution at the same time, which is more stable and reliable with electronic instructions for easy use.
◎ Adopt high torque variable frequency motor, free of maintenance for life, faster acceleration and deceleration, and improve the use efficiency.
◎ Ultra quiet refrigeration compressor unit, external heat dissipation design, efficient heat dissipation of the internal circuit of the host, and the temperature can be controlled below - 5 ℃ under the upper limit speed.
Technical Parameter：
| Model | HY16D |
| Max Speed | 16000rpm | Voltage | AC 220±22V 50Hz 20A |
| Max RCF | 27762×g | Power | 2300W |
| Max Capacity | 4×1000ml | Noise Level | 65dB(A) |
| Timer | 1s~99h59min59s | Size | 560×750×820mm |
| Revolutions/min | ±10r/min | Net Weight | 155Kg |
| Temp Range | -20℃~40℃ | Rotor
automatic recognition | Yes |
| Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
| Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor | 1 | 1 | 48×1.5/2.0ml(Double row) | 16000rpm | 27762×g |
| 2 | 2 | 30×1.5/2.0ml(Single row) | 15500rpm | 26859×g |
| 3 | 3 | 18×5ml(Single row) | 15000rpm | 22010×g |
| 4 | 4 | 8×50ml(sharp/round type) | 12000rpm | 18160×g |
| 5 | 5 | 6×100ml | 11000rpm | 14745×g |
| 6 | 6 | 12×50ml(sharp/round type) | 10000rpm | 15383×g |
| 7 | 7 | 6×250ml | 10000rpm | 15093×g |
| Swing-out rotor | 8 | 8 | 4×1000ml | 4200rpm | 3940×g |
| Adapter | 8 | a | Micro-plate basket 4×2×96 hole | 4200rpm | 3940×g |
| b | 4×10×50ml(sharp/round type) |
| c | 4×24×15ml(sharp/round type) |
| d | 4×750ml (round type) |
| e | 4×500ml (round type) |
| f | 4×500ml sharp type |
| g | 4×250ml sharp type |
| h | 8×250ml (round type) |
| i | 140×10ml(blood collection) |
| j | 196×2-7ml(blood collection) |
