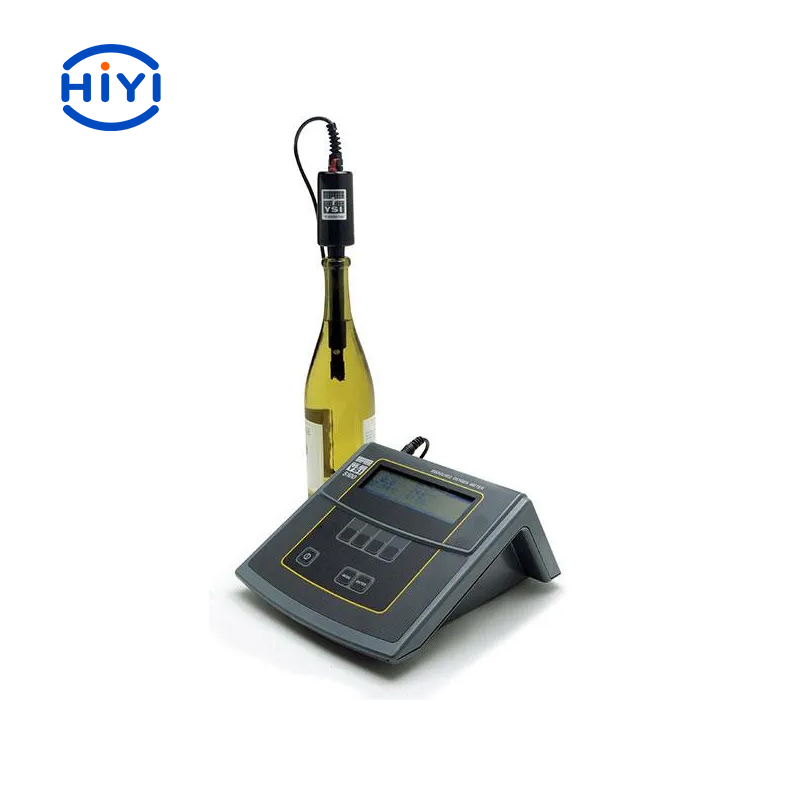

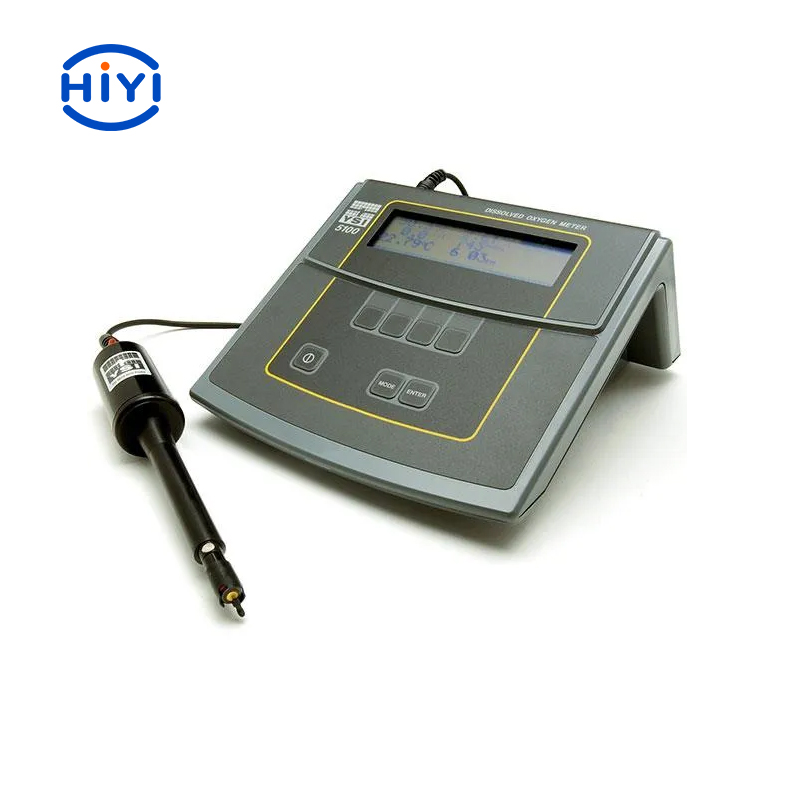

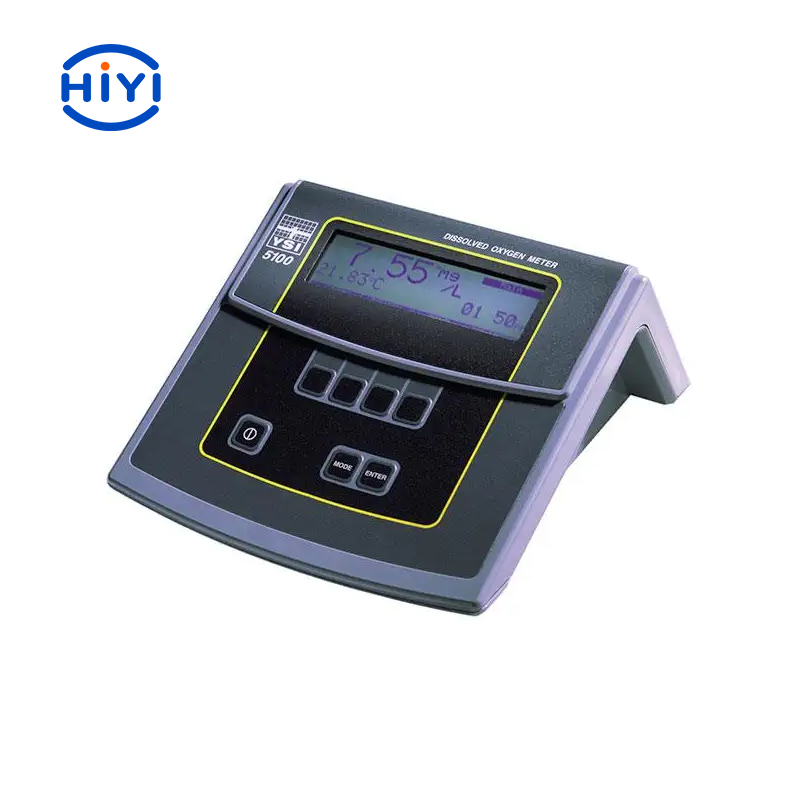

YSI-5100 Dissolved Oxygen Instrument
The YSI 5100 features a built-in barometer, programmable auto-stabilization, membrane integrity function, bar code compatibility, and real-time clock. The full-featured 5100 instrument offers even greater performance and flexibility with one-button auto calibration and built-in SOUR software to meet U.S. EPA 503 regulations for safe use of biosolids. OUR (Oxygen Uptake Rate) and SOUR (Specific Oxygen Uptake Rate) are also valuable process control tools because they indicate the biological activity of microorganisms used in treatment.
Features:
* Menu-driven software
* Dissolved oxygen and temperature measurement
* Large LCD display
* Automatic calibration
* 100 data-point memory with date/time stamp
Benchtop | Yes |
| Equipment used with | 5010 |
| Measurement Method / Channels | BOD, OUR/SOUR Tests |
| Measurement Range | Barometric Pressure: 450 to 825 mmHg (600 to 1100 mbar), Dissolved Oxygen (%): 0.0 to 600.0% air saturation, Dissolved Oxygen
(mg/L): 0.0 to 60.0 mg/L, Dissolved Oxygen (mbar): 0 to 1500, Temperature: -5.0 to 50.0°C |
| Power | The Model 5000 & 5100 are powered by an AC adapter or 4 C-size alkaline batteries. A new set of alkaline batteries will power the
selected instrument for approximately 30 hours (not including stirring). |
| Unit of Measure | mbar, Temperature: °C, mg/L, Barometric Pressure: mmHg, Dissolved Oxygen: % air saturation |
| User Calibratable | Yes |
| Warranty | 2-year instrument |
| Waterproof | The Model 5000 and 5100 are designed exclusively for indoor use and are NOT waterproof. |
