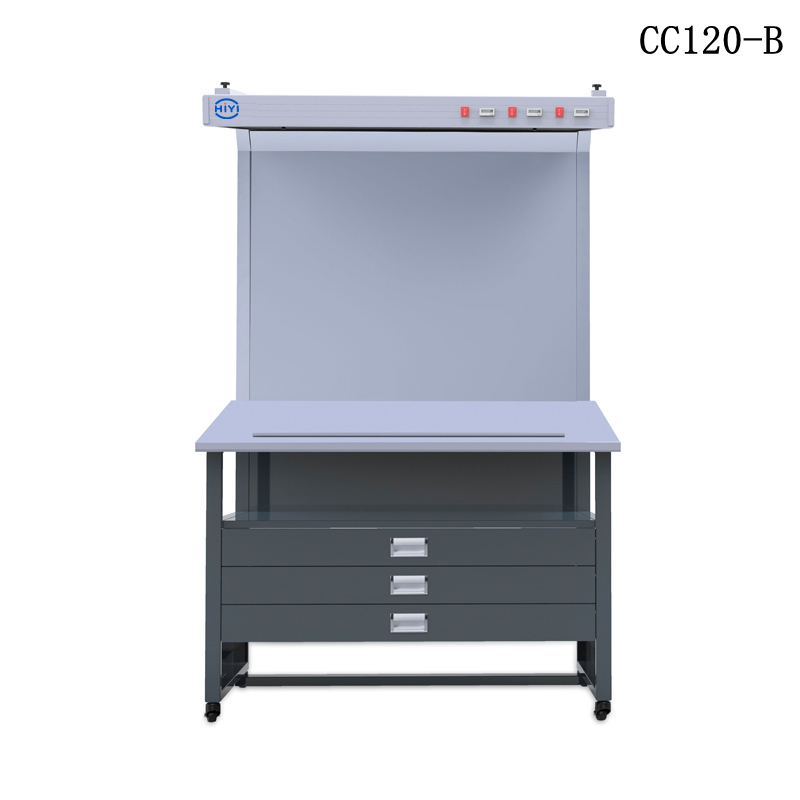

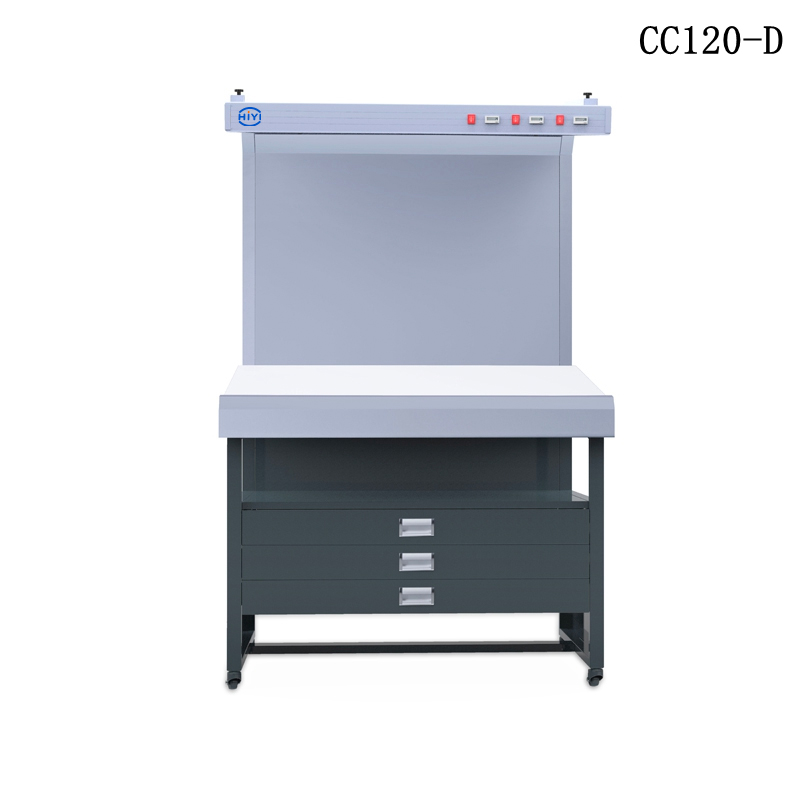

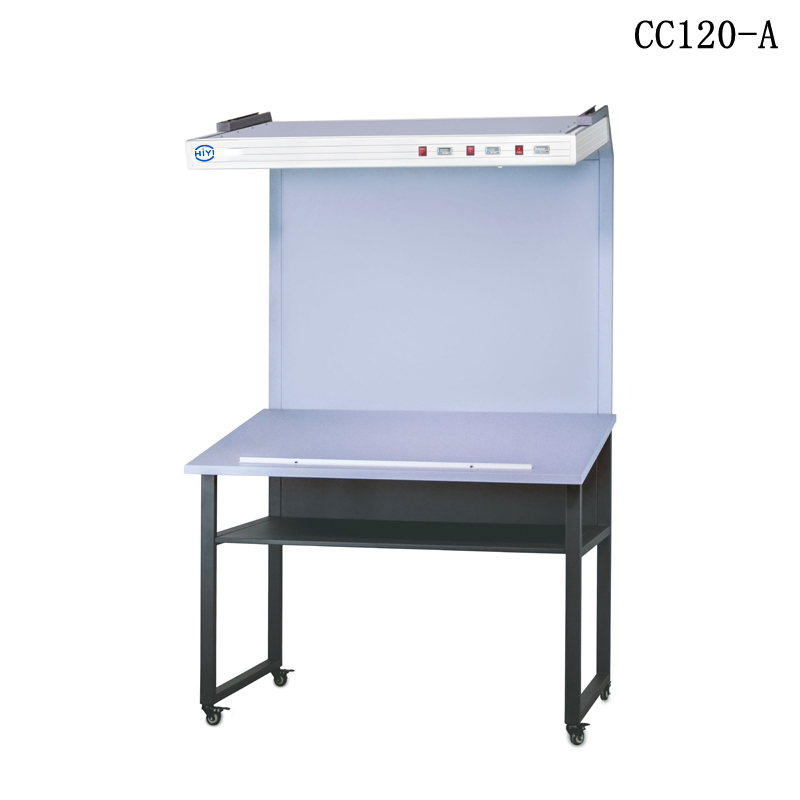

CC120 Series Color Viewer Light Table

We offer standard light sources commonly used in the printing industry to meet ISO 3664:2009 standards.
CC120 vertical standard light source color viewer is suitable for the printing workshop or proofing center with high environmental requirements. It can be applied to the printing factory with beautiful appearance, offset printing, flexo printing and gravure printing. It is also directly able to see the reflective manuscript.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video


Boundary dimension130 cm x 76 cm x 10 cm (length) x (width) x (height)
MaterialReal aluminium alloy material
frame materialsAluminum alloy profile streamlined design beautiful and elegant imported reflector Uniform light coverplate and illumination
Uniform light coverplateOpenable uniform light coverplate for easy lamp replacement
Hanging materialHooks at the back and a load-bearing steel chain that can be hung directly to the ceiling or fixed to the rack
Light SourceConforms to ISO3664 international standard
Color temperatureD50 (5000K) or D65 (6500K)
Lamp seriesGraphica for the exclusive use of imported printing machine
Color rendering indexD50: CRI ≧ 95 or CRI = 98 D65: CRI ≧ 90 or CRI = 95
Number of lamps36Wx4 (pcs) - with light source timer
