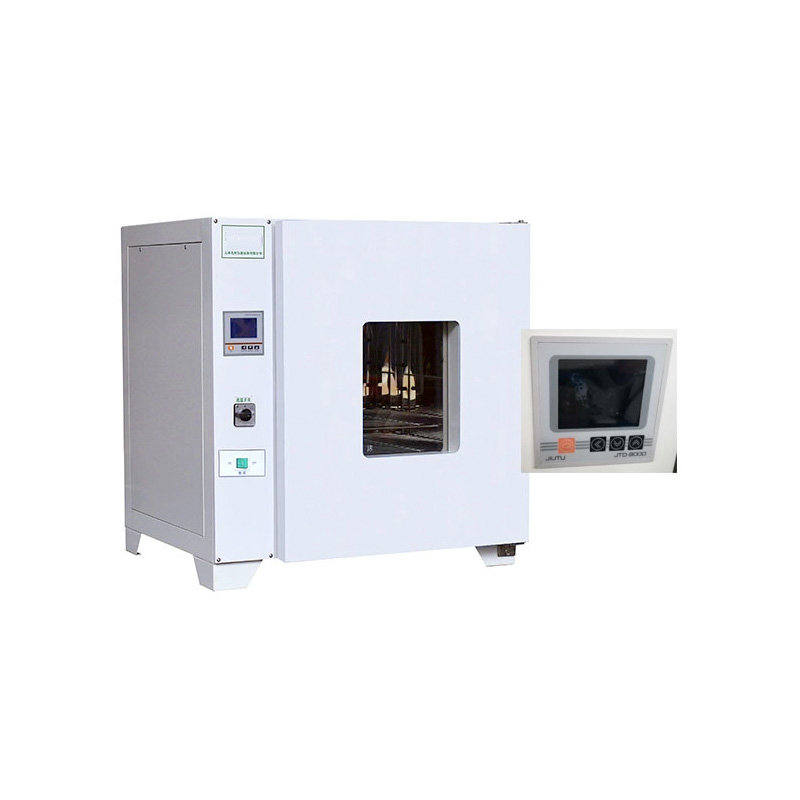

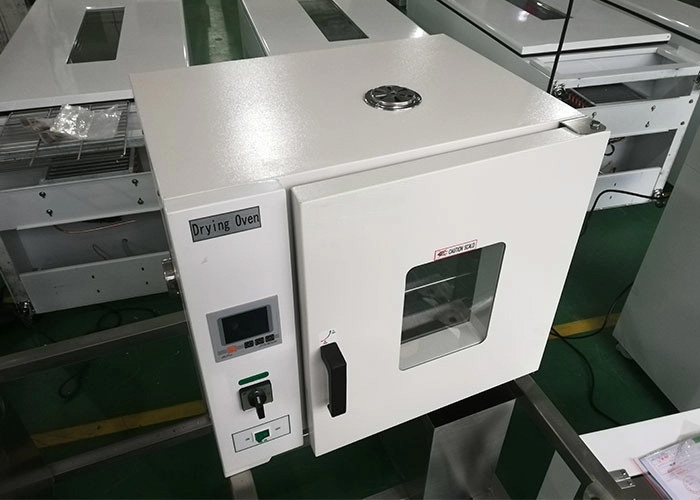

LDO/LDO-A Stainless Steel Drying Laboratory Oven
Electric Chamber
Microprocessor controller(with temperature correction and timing function), accurate and reliable.
Large LCD screen display.

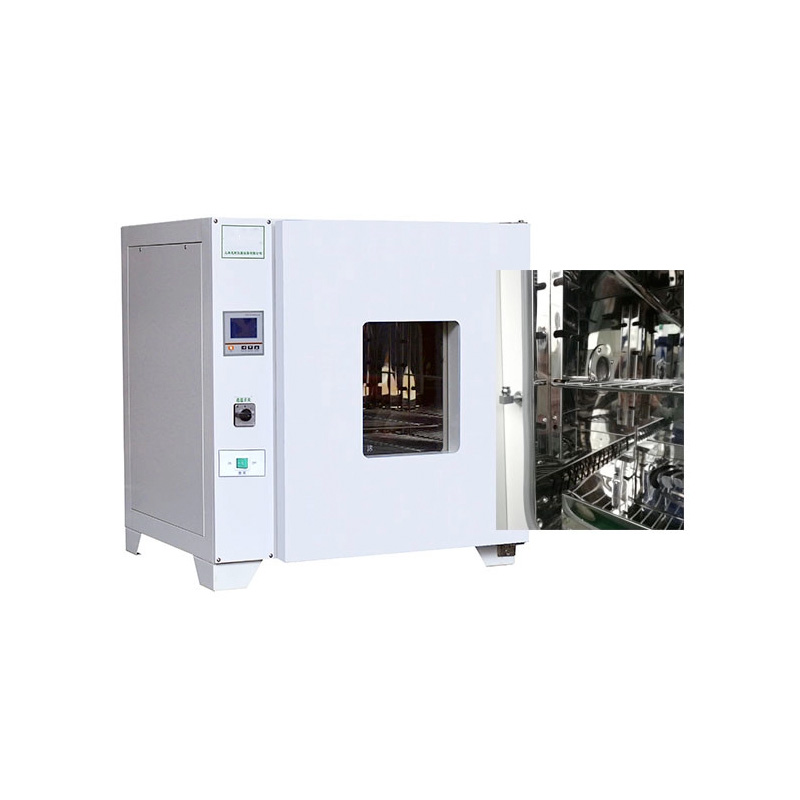

High quality stainless steel chamber, removable shelf, easy-to-clean.
Equipped with multiple sets of heaters.(For LDO-101 Series)
Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature. (For LDO-101 Series)
Silicon sealing ring for reliable sealing.
Equipped with leakage protection.
Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.
Optional printer or RS485 interface which can print or connect computer for remote control and alarm.
Anti-hot handle
Options:1. Multi-segment programmable control；2. Built-in Printer；3. RS485 interface
| Model | Volume (L) | Chamber Size (W×D×H) cm | Exterior Size(W×D×H) cm | Package Size (W×D×H) cm | Power Rating(W) | Temp. Range(℃) | Shelf | Net/ Gross (kg) | Power Supply |
Shape |
| LDO-101-0 | 43 | 35×35×35 | 64×50×60 | 75×63×77 | 1300 | RT+10～300 | 2 | 40/60 | AC 220V 50HZ | Horizontal |
| LDO-101-1 | 81 | 45×40×45 | 73×53×69 | 85×66×86 | 2000 | 2 | 55/85 |
| LDO-101-2 | 138 | 50×50×55 | 78×69×80 | 90×76×98 | 2500 | 2 | 80/115 |
| LDO-101-3 | 252 | 60×60×70 | 88×73×95 | 100×86×110 | 3500 | 2 | 110/150 |
| LDO-101-4 | 640 | 80×80×100 | 108×93×125 | 120×108×143 | 5500 | 3 | 170/250 | AC 380V 50HZ |
| LDO-101-5 | 960 | 100×80×120 | 128×98×145 | 142×108×165 | 7000 | 3 | 250/340 |
| LDO-9023A | 25 | 30×30×28 | 58×50×45 | 70×60×60 | 320 | RT+10～200 | 2 | 29/36 | AC 220V 50HZ | Horizontal |
| LDO-9053A | 54 | 42×37×35 | 71×56×42 | 82×66×69 | 600 | 2 | 35/43 |
| LDO-9123A | 138 | 50×50×55 | 83×61×72 | 95×76×98 | 1200 | 2 | 45/55 |
| LDO-9203A | 252 | 60×60×70 | 88×78×82 | 98×78×95 | 1600 | 2 | 60/69 |
| LDO-9030A | 31.5 | 30×30×35 | 45×47×70 | 53×53×77 | 700 | RT+10～200 | 2 | 29/37 | AC 220V 50HZ | Vertical |
| LDO-9070A | 72 | 40×40×45 | 55×60×80 | 59×61×84 | 1000 | 2 | 45/52 |
| LDO-9140A | 136 | 45×55×55 | 64×73×90 | 65×76×94 | 1600 | 2 | 45/56 |
| LDO-9240A | 225 | 50×60×75 | 88×72×93 | 83×86×123 | 2000 | 2 | 62/70 |
| LDO-9420A | 429 | 60×55×130 | 78×71×170 | 93×81×178 | 2600 | 3 | 130/153 | AC 380V 50HZ |
| LDO-9620A | 624 | 80×60×130 | 98×80×178 | 113×86×188 | 3600 | 3 | 168/186 |
| LDO-9036A | 31.5 | 30×30×35 | 45×47×70 | 53×53×77 | 950 | RT+10～300 | 2 | 29/37 | AC 220V 50HZ |
| LDO-9076A | 72 | 40×40×45 | 55×60×80 | 59×61×84 | 1400 | 2 | 40/50 |
| LDO-9146A | 136 | 45×55×55 | 64×73×90 | 65×76×94 | 2000 | 2 | 45/56 |
| LDO-9246A | 225 | 50×60×75 | 69×77×114 | 83×86×123 | 2600 | 2 | 62/70 |
| LDO-9426A | 429 | 60×55×130 | 78×71×170 | 93×81×178 | 3500 |
|
