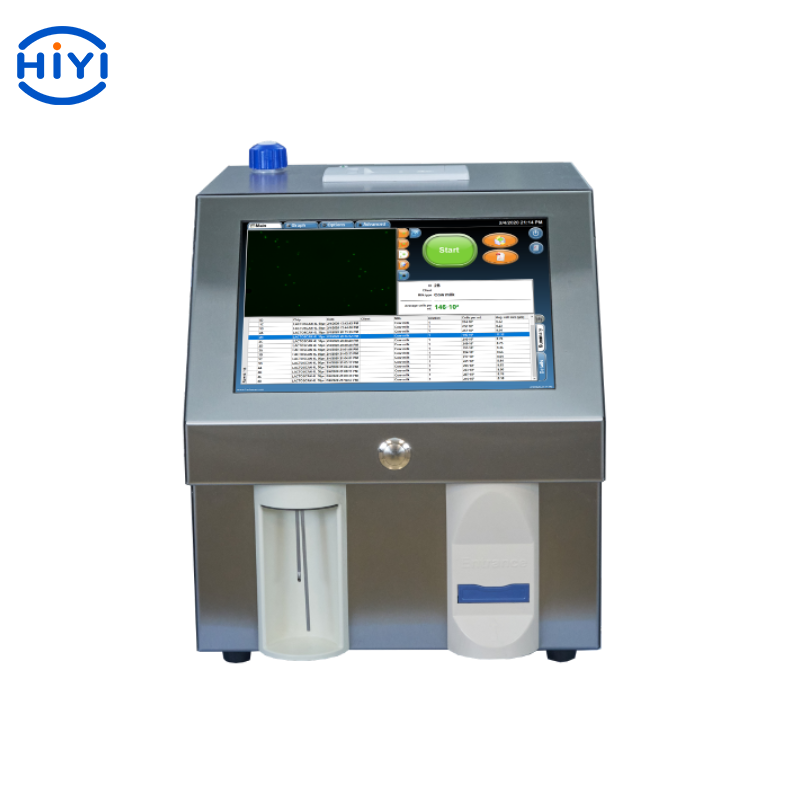

LACTOSCAN MCC COMBO Somatic cell counter is based on fluorescent image cytometry for counting cells in milk. It fully comply with the ISO 13366-1 IDF 148-1 Enumeration of somatic cells - Microscopic method (Reference method) with regard to the staining of cells, in the definition of cells to be counted depending on the size and the methodology of the counting. The somatic cell counter offers visual control for excluding accidental errors. The measuring range of the counter is 2 to 30 µm and the results are expressed as number of cells per mL. The results are available within 20 to 60 seconds depending on the type of analysis. There is no need of calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per requirements of ISO 13366-1:2008 (IDF 148-1:2008) Milk -- Enumeration of somatic cells -- Part 1: Microscopic method (Reference method).
Somatic cell counter specification:
High-end automated fluorescent microscope with fast autofocus and cell counting software;
Fast, accurate, reliable somatic cells analysis of cow, sheep, goat, buffalo and human milk.;
Possibility of reference analysis;
Detects subclinical and clinical mastitis;
Lowest cost per test of Somatic Cell Counts;
Easy readable results within 20 to 60 seconds;
Takes a maximum of 64 images by computer controlled X:Y movements and then processes these by the image analysis software;
Stores unlimited number of record in the database;
Results are color coded;
Automatic software update and remote service;
Portable and compact design;
Use of 4 channels disposable LACTOCHIPS;
Milk analyzer specification:
User-friendly ultrasonic milk analyzer: simple in operation, maintenance, calibration and installation;
Cleaning with peristaltic pump;
Portable and compact design;
Very small quantity of milk required;
Low power consumption;
No use of hazardous chemicals;
Measuring accuracy adjustment can be done by the user RS232 Interface;
Two samples self-calibration;
Easily readable results;
Possibility of connecting pH probe;
Integrated pH and conductivity measuring;
SOMATIC CELL COUNTER SPECIFICATIONS
Number of cell/mL | *CV% |
---|---|
100 000 | 5% |
400 000 | 3% |
600 000 | 2% |
Parameter | Measuring range | Accuracy |
---|---|---|
Fat | 0.01-45% | ±0.06% |
SNF | 3-40% | ±0.15% |
Density | 1000-1160 kg/m3 | ±0.3km/m3 |
Protein | 2-15% | ±0.15% |
Lactose | 0.01-20% | ±0.2% |
Added water | 0-70% | ±3.0% |
Temperature | 5-40°C | ±1°C |
Freezing point | -0.4 to -0.7°C | ±0.005°C |
Salts | 0.4-4% | ±0.05% |
pH | 0-14 | ±0.05% |
Conductivity | 2-14mS/cm | ±0.05(mS/cm) |
Kg | 0-150 kg | ±0.025 kg |
Total solids | 0-50% | ±0.17% |
