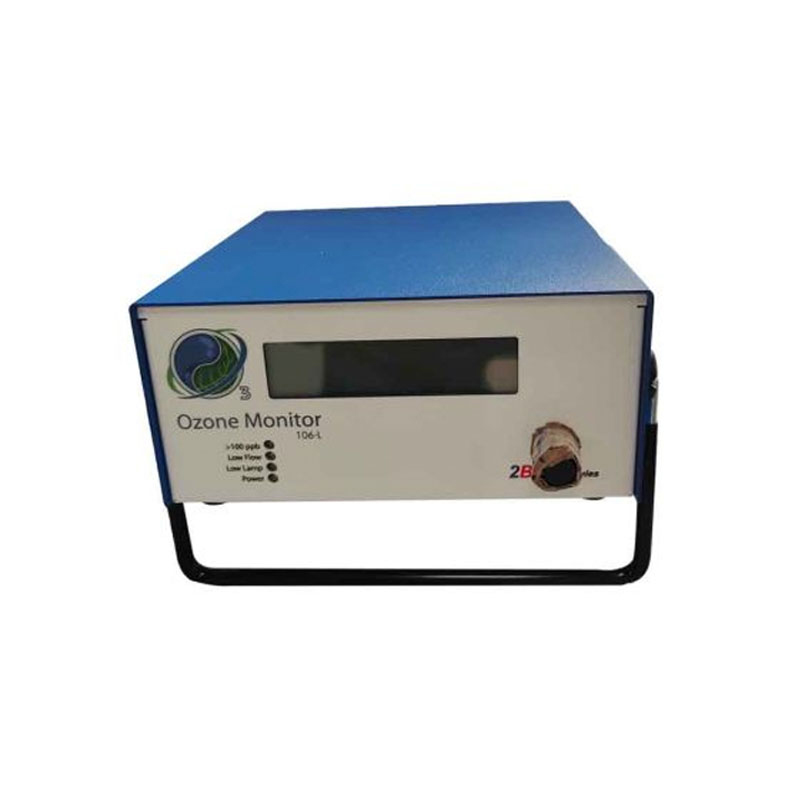

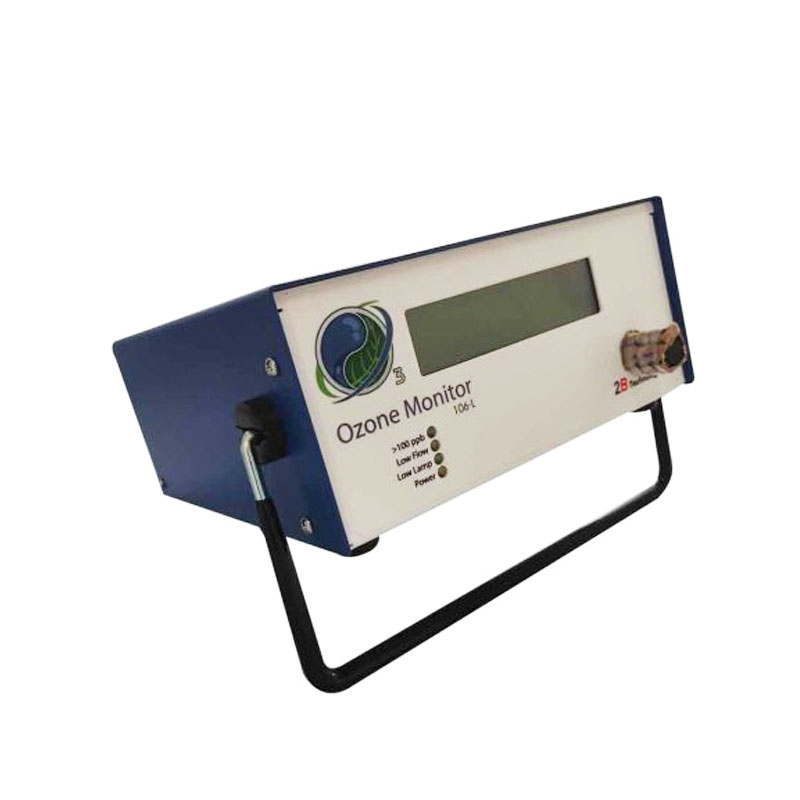

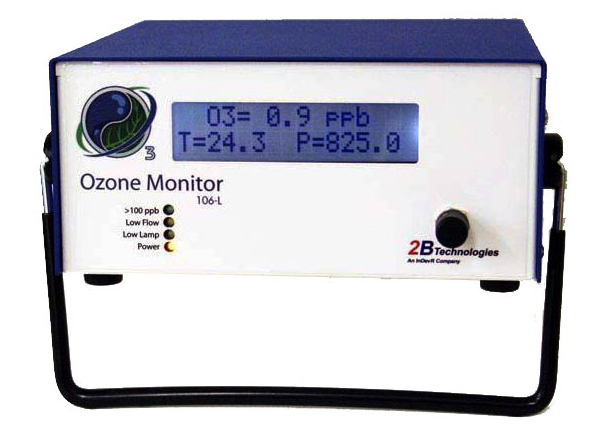

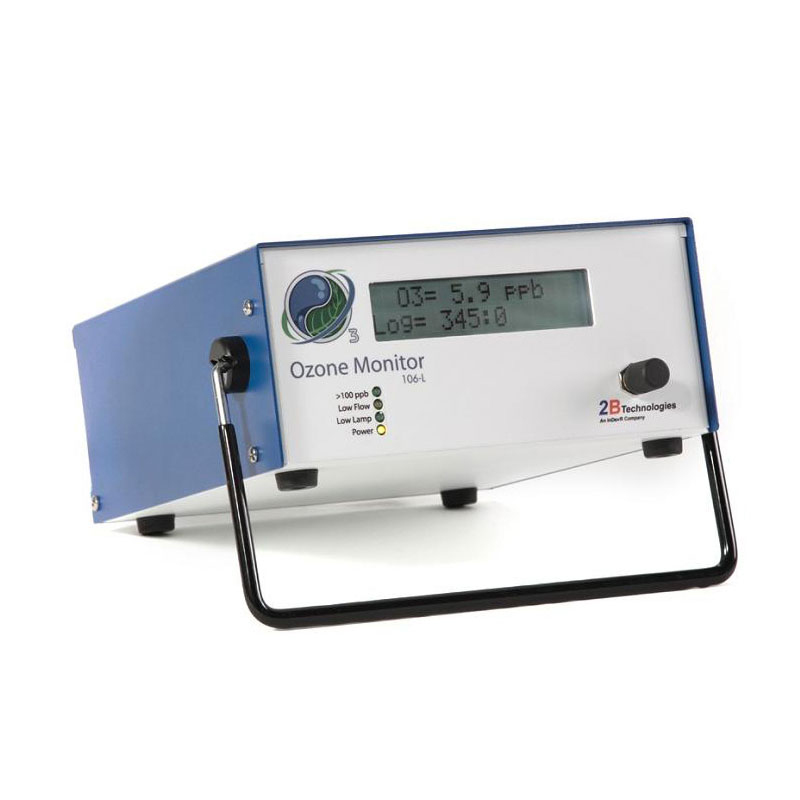

M106 UV Ozone Analyzer
Features:
The M106 UV ozone analyzer is used in environmental ozone, pharmaceutical, water treatment, health appliances, food, disinfection, etc. For this purpose, the 106-L, 106-M and 106-H ozone analyzers are available, where L, M and H refer to low (0-100 ppm), medium (0-1000 ppm) and high (0-20%) ozone concentrations, respectively. . The instruments are available in different optical path lengths to accommodate an extremely wide range of ozone tests, covering more than 8 orders of magnitude. In addition, the 106-H is measured online through a path designed to allow pressurized flow with the ozone generator.
Application:
The M106 UV ozone analyzer is used in environmental ozone, pharmaceutical, water treatment, health appliances, food, disinfection, ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, pool disinfection industry, flavor synthesis industry and other industries using ozone generator. etc.
Measurement principle | nm 254 UV light source |
Measurement interval | 10 seconds (data averaging options: 10 seconds, 1 minute, 5 minutes, 1 hour) |
Flow rate
| 1L/min |
Units | ppb, ppm, pphm, µg m -3, mg m -3 (& mol %, wt % for 106H) |
Data output methods | USB, RS232, 0-2.5 V mode, 4-20 mA, LCD display |
Power supply | 12 V, 3.5 Watt |
Dimensions | 3.75 x 7.5 x 8.5 inches (10 x 19 x 22 cm) |
