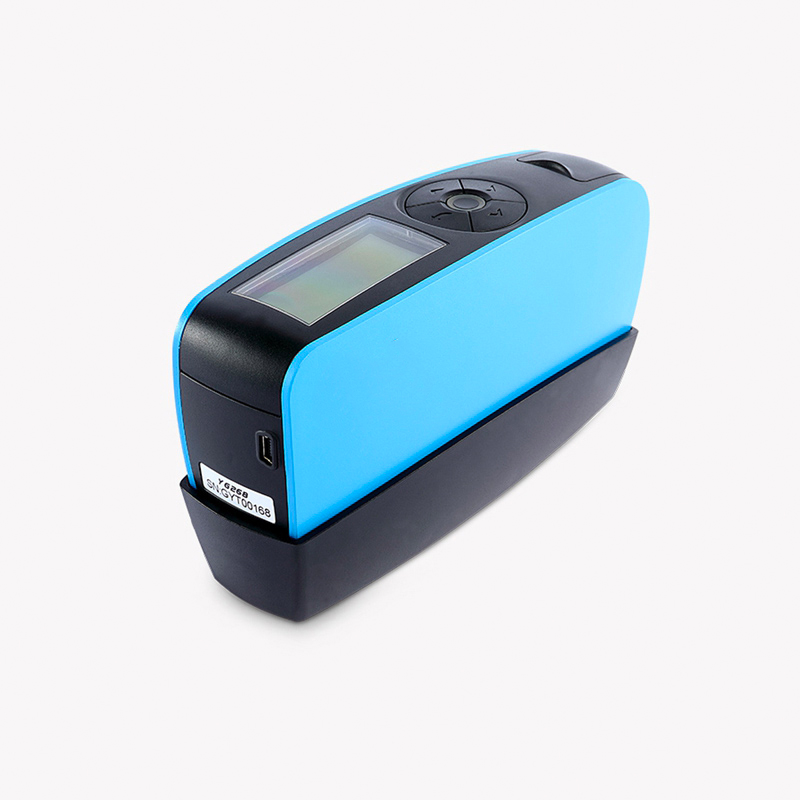

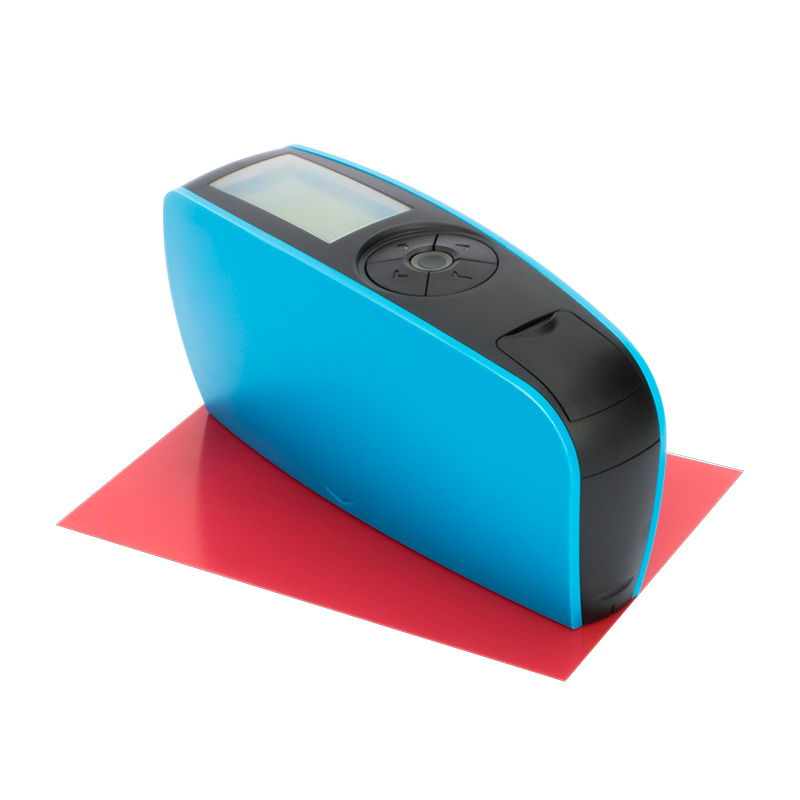

| Model | YG268 Tri-angle Gloss Meter |
| Measuring Angle | 20° 60°85° |
| Measuring Area | 20°: 0-2000GU
60°: 0-1000GU
85°: 0-160GU |
| Division Value | 0.1GU |
| Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
| Measuring Time | 0.5S |
| Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 first grade requirements of gloss meter |
| Auto Power-off Time | Within 30s-120s |
| Long-time Calibration | Automatically check and made the calibration |
| Language | Chinese & English |
| Storage | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
| Display | 2.3 inch white and black screen |
| Size | 160*52*84mm |
| Weight | About 300g |

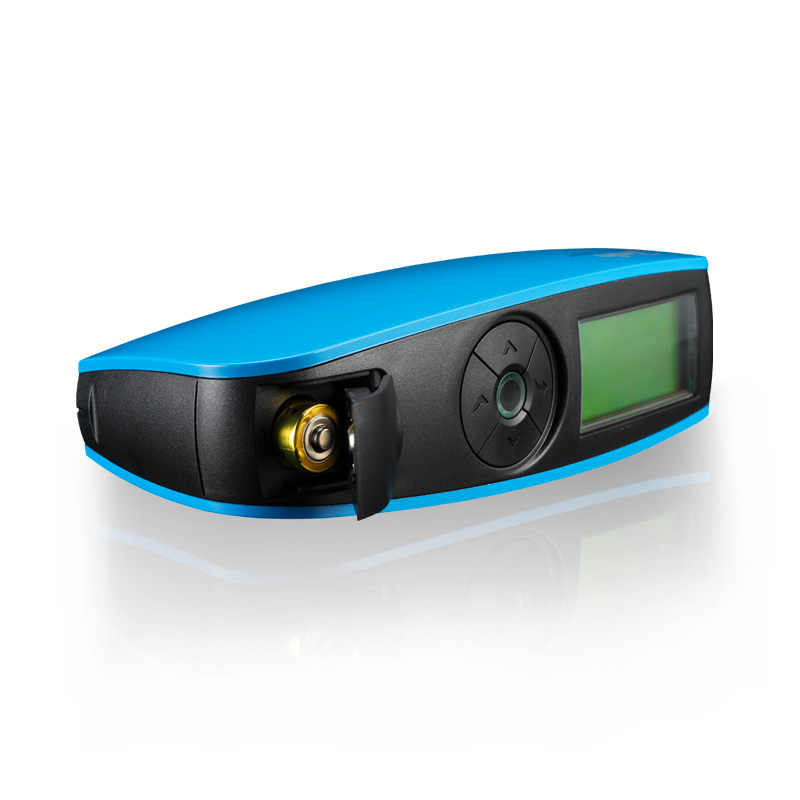

| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Interface | USB & Bluetooth 2.1 version |
| PC Software | GQC6 QC software can printing testing report and with more extended functions |
| Operation Temperature Range | 0-40℃（32-104° F） |
| Storage Temperature Range | -20-50℃（-4-122° F） |
| Humidity Range | < 85% RH, without condensation |
| Standard Accessories | USB cable, user manual, calibration plate, QC software |
| Optional Accessories | Miniature printer |
| Notification: the technical parameter is only for reference |
