1.Double standard ISO & ASTM
Can meet the test standard requirements of different users; meet the standards: ASTM D1003/1044,ISO 13468，ISO 14782，GB/T 2410, JJF 1303-2011，CIE 15.2，GB/T 3978,ASTM E308，JIS K7105，JIS K7361，JIS K 7136
2.Multiple observation light sources

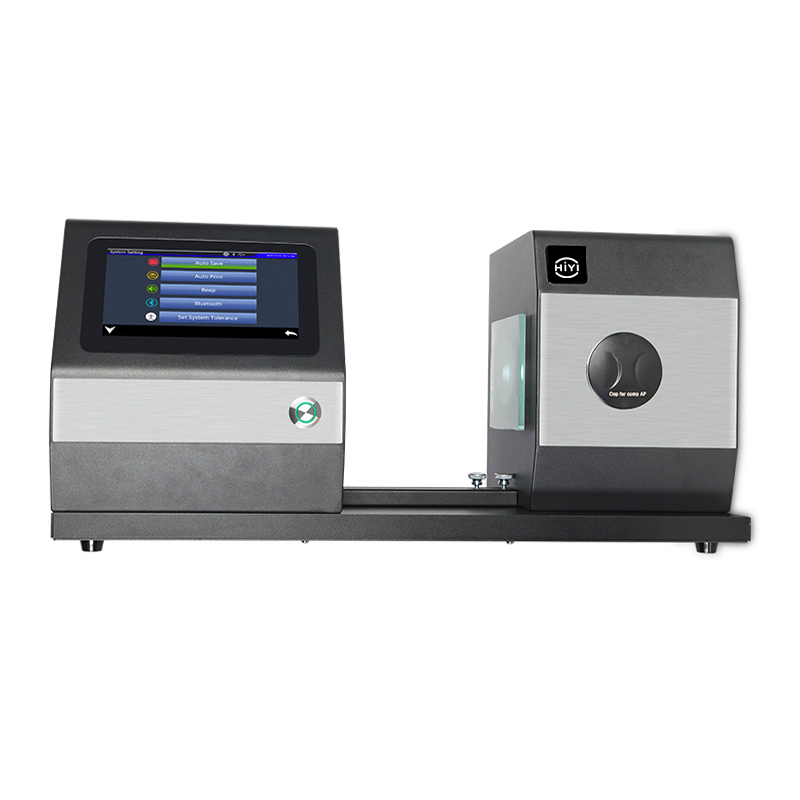

The YH1810 color haze meter provides CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy color space, as well as D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30 observation light sources, which can meet the special measurement needs under different measurement conditions.
3.Easy operation and faster and more accurate measurement

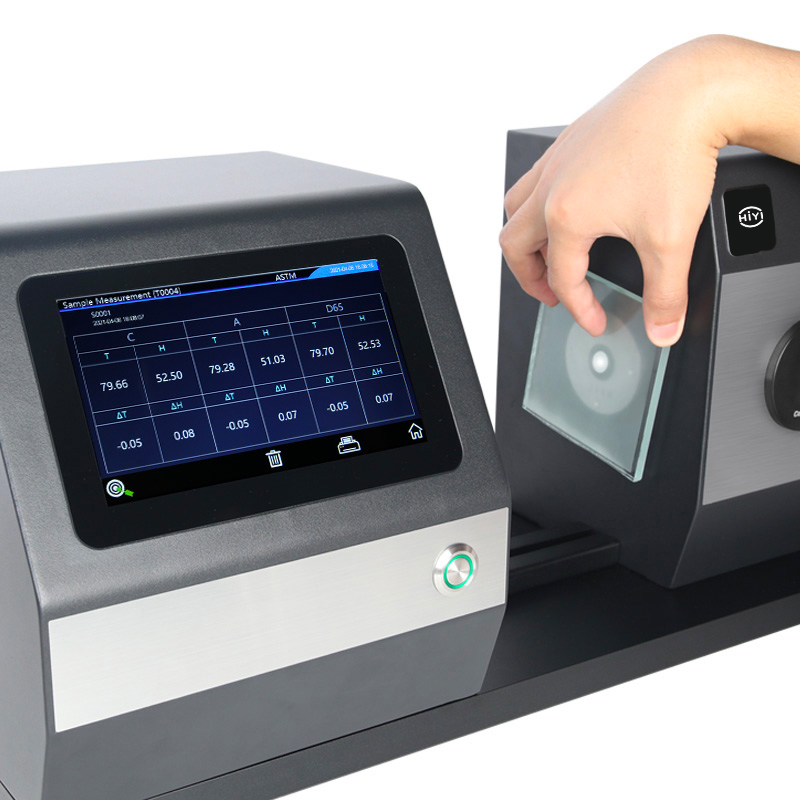

The YH1810 color Haze Meter is equipped with a large-size touch control screen, which is easy and convenient to operate. The 256 pixel dual array CMOS image sensor can realize high accuracy and repeatable transmittance and haze measurement. USB data output unit that interfaces with the laboratory system.
4.Compensation port to make the measurement data more accurate
Meet the standard of ASTM D1003 non-compensation method, ISO 13468 compensation method, it can do full light transmittance, haze test, definition test, and provide more accurate test results
5.Dynamic measurement
Independent light source detector and temperature sensor to monitor the light source and environmental changes at all times to ensure reliable test data
6.Convenient measurement and wide sample adaptation

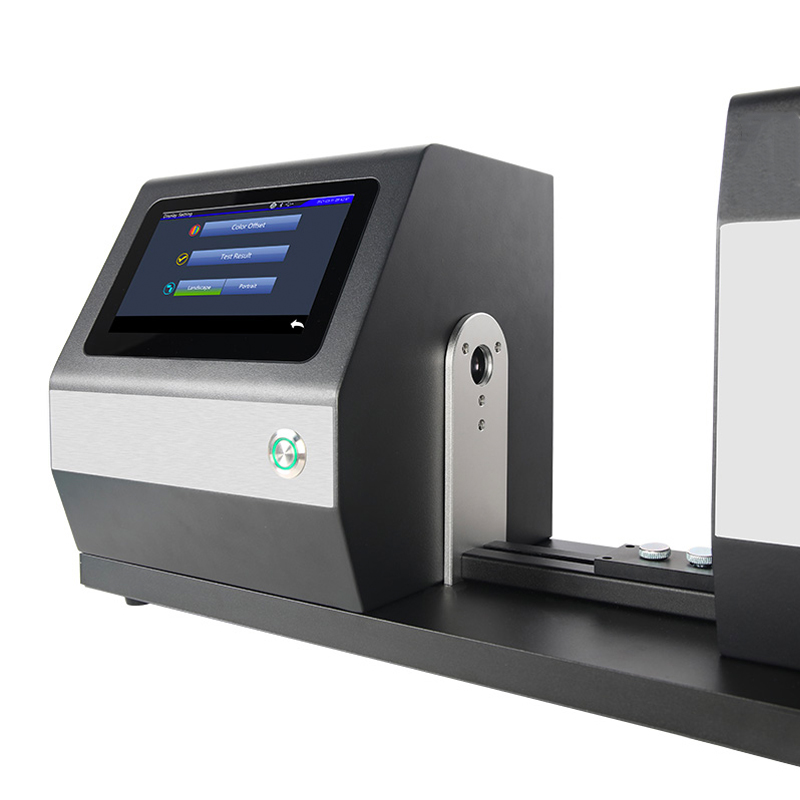

Open measurement area for vertical and horizontal testing to accommodate more samples under test
7.Quality management software
It provides powerful software for measuring and analyzing haze, color and light transmittance, which is suitable for quality monitoring and tabulating management of haze, light transmittance and color data in various industries. Data the management of users on the PC computer, compare the haze, transmittance and color differences, generate test report forms, facilitate customer customization and management.
Application
YH1810 Color Haze Meter is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects.
