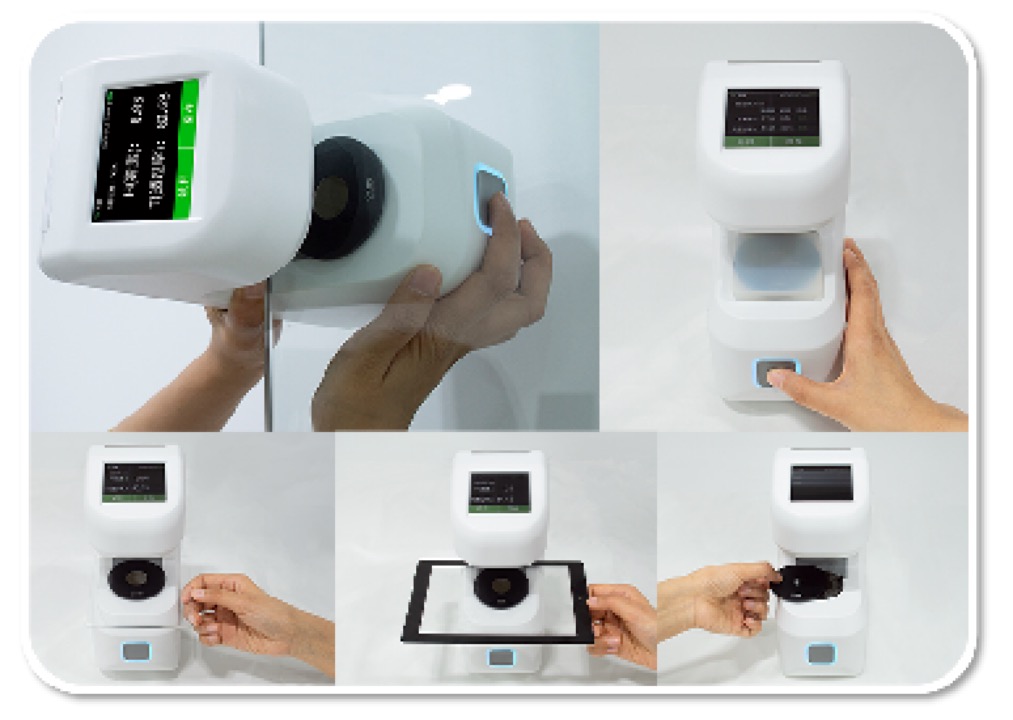

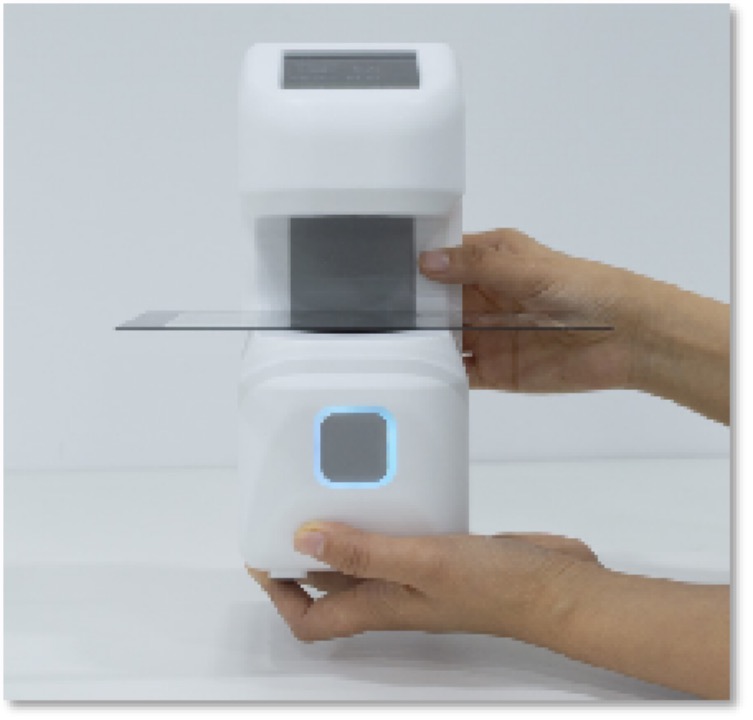

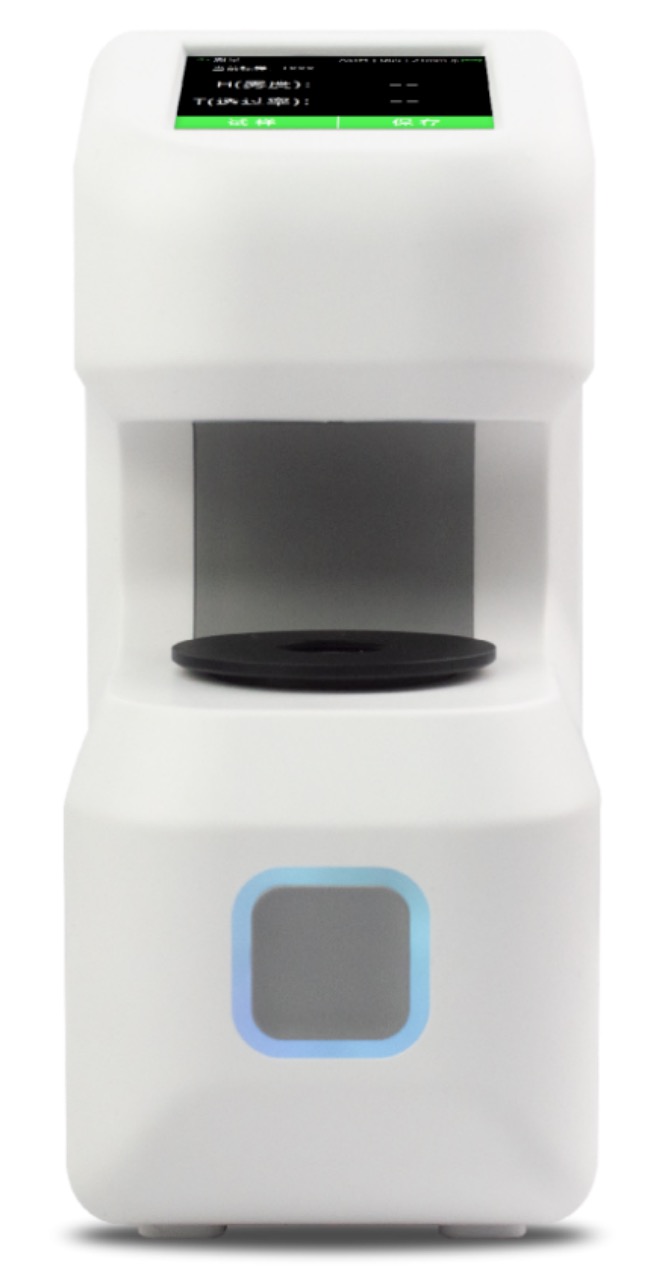

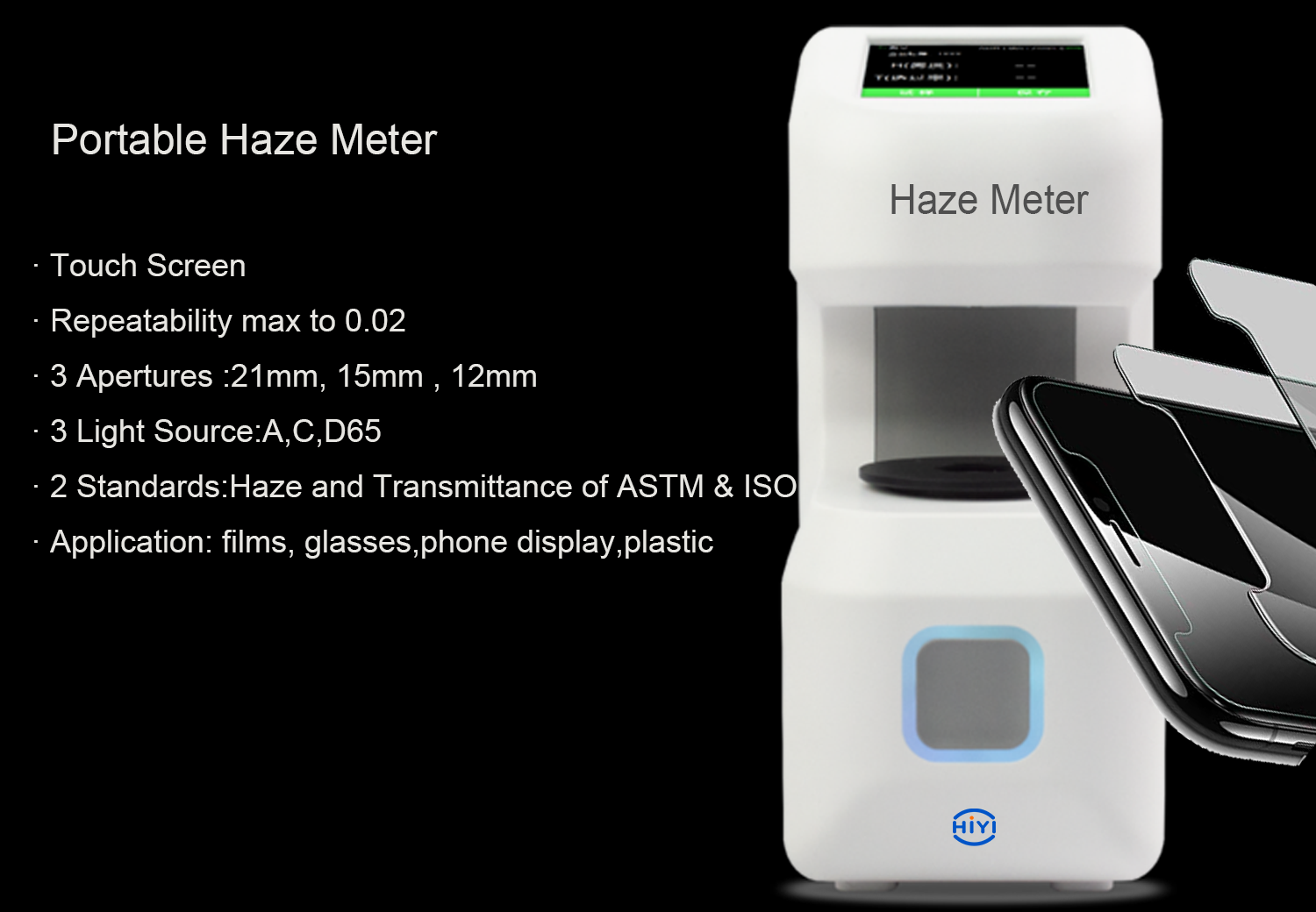

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance. Especially for the large glass, films, etc.

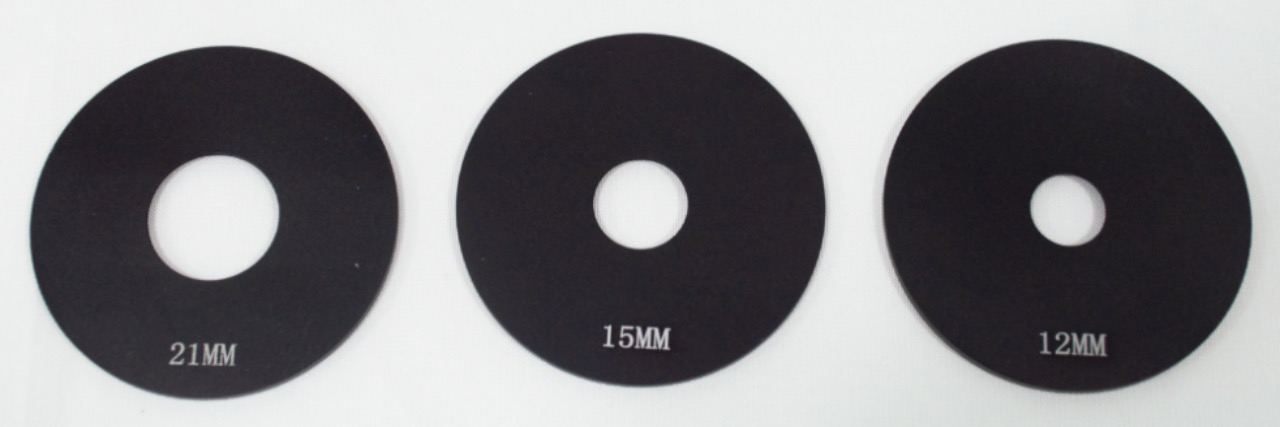

Supports 3 kinds of test apertures 21mm, 15mm & 12mm to measure the samples with different sizes
The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance. Especially for the large glass, films, etc.
It conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.
It adopted dual optical design to improved the accuracy and repeatability.
Easily do self-check regularly when it is in standby mode.
Supports 3 kinds of test apertures 21mm, 15mm & 12mm to measure the samples with different sizes.
Model
HM-10
HM-12
HM-13
Light Source
CIE-A,CIE-C,CIE-D65
CIE-A,CIE-C,CIE-D65
CIE-A,CIE-C,CIE-D65
Standards
ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Parameter
ASTM-haze/transmittance
ASTM & ISO -haze/transmittance
ASTM & ISO -haze/transmittance
Spectral Response
CIE The spectrum function Y/V(λ)
CIE The spectrum function Y/V(λ)
CIE The spectrum function Y/V(λ)
Geometry
0/d
0/d
0/d
Test Aperture
21mm
21mm, 15mm
21mm, 15mm, 12mm
Test Range
0-100%
0-100%
0-100%
Resolution
0.1%
0.01%
0.01%
Repeatability
0.1
0.05
0.02
Sample Size
Thickness ≤40mm
Thickness ≤40mm
Thickness ≤40mm
Display
2.8 inches touch screen
2.8 inches touch screen
2.8 inches touch screen
Data Storage
Mass Storage
Mass Storage
Mass Storage
Interface
USB
USB
USB
Power
DC 5V/2A
Rechargeable Lithium Battery
Rechargeable Lithium Battery
Working Temperature
5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation
5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation
5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation
Storage Temperature
-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation
-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation
-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation
