MS-H-ProT LCD Digital Magnetic
Hotplate Stirrer with Timer
Features:
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission

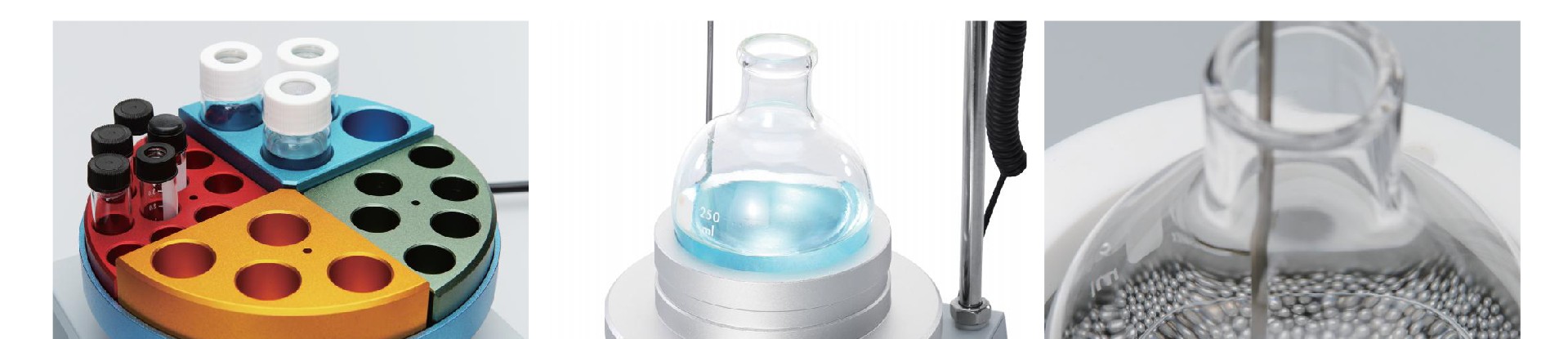

• A wide variety of accessories are available
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Specifications | MS-H-PROT |
Work plate dimension | φ135mm(5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor rating input | 18W |
Motor rating output | 10W |
Power | 550W |
Heating output | 500W |
Voltage | 100-120/200-240V 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity[H2O] | 20L |
Max. magnetic bar[length] | 80mm |
Speed range | 100-1500rpm
resolution±1rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room temp.-340°C, increment 1°C |
Temperature control accuracy | ±1°C(<100°C)
±1%(>100°C) |
Over temperature protection | 420°C |
Temperature display accuracy | ±0.1°C |
External temperature sensor | PT1000 (accuracy ±0.2) |
"Hot" warning | 50°C |
Timer function | 1min to 99h 59min |
Data connector | RS232 |
Protection class | IP42 |
Dimension[WxDxH] | 160×280×85mm |
Weight | 2.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
