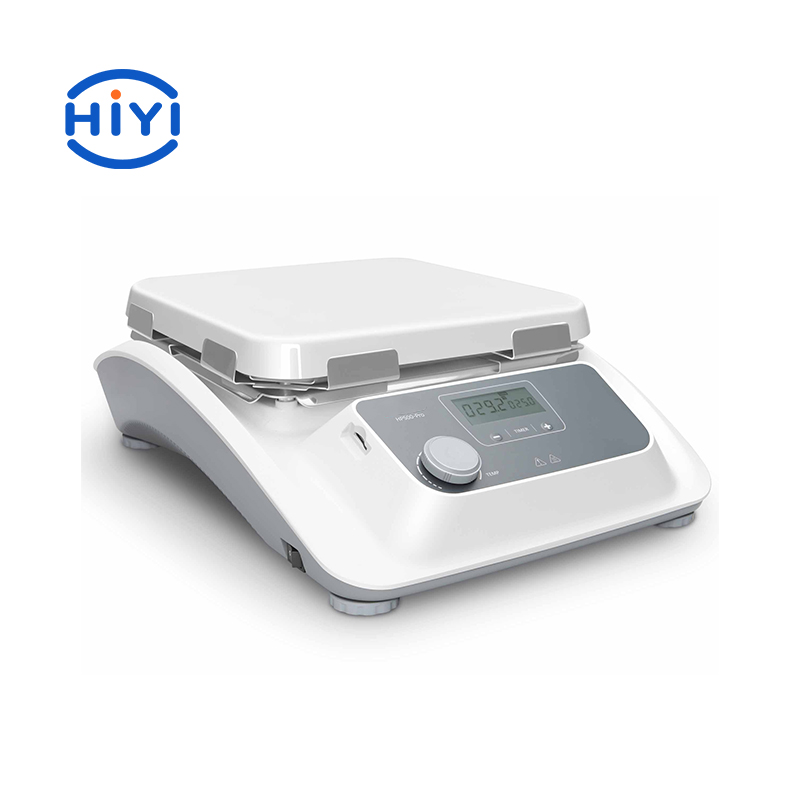

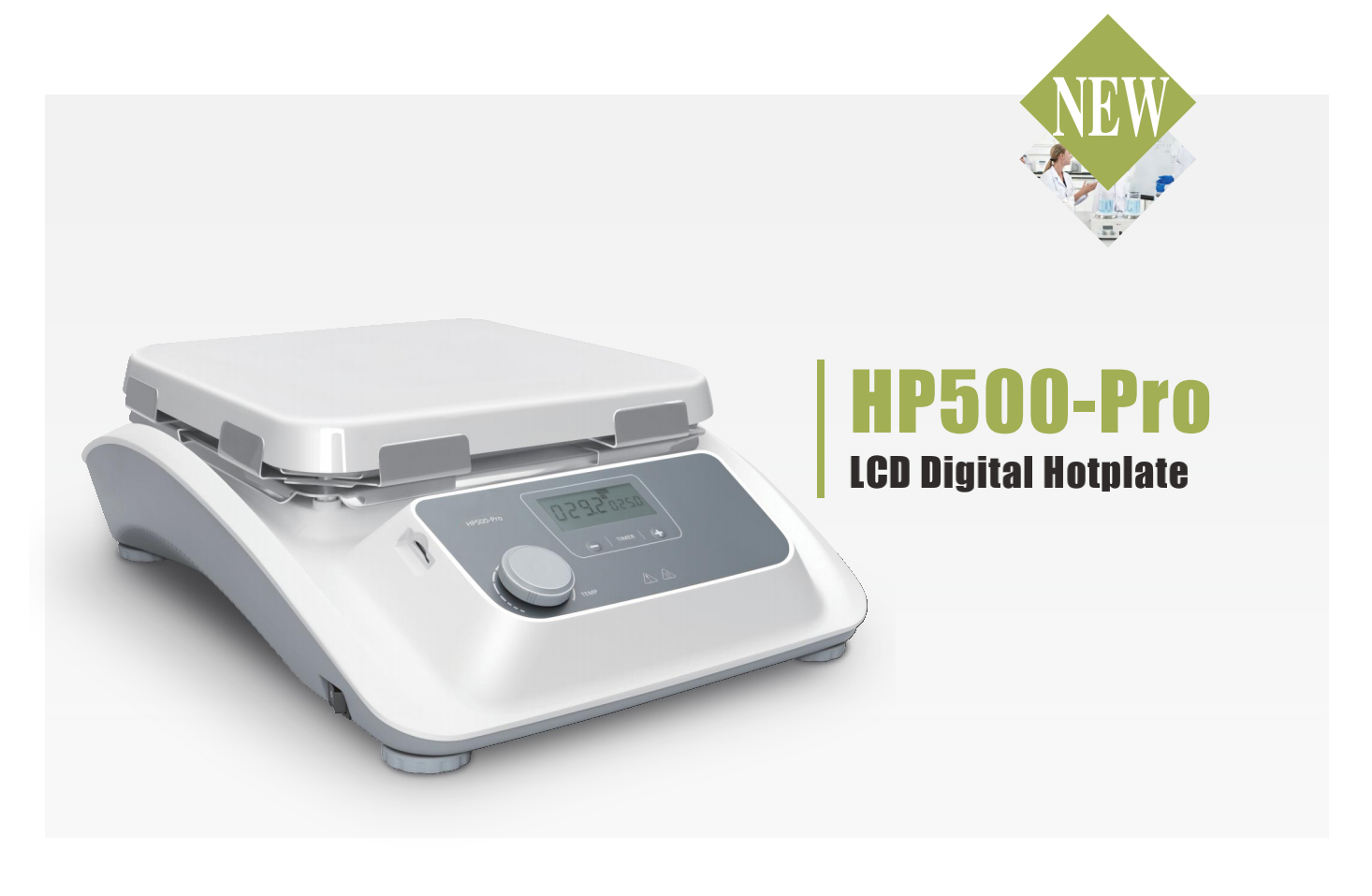

HP500-Pro LCD Digital Hotplate

Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
HiYi provides different series, heating range covers from 120°C-550°C.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

HP500-Pro LCD Digital HotplateHP500-Pro-内容1.jpg

Features:

  • LCD screen shows temperature,Max. temperature up to 500℃

  • 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer

  • External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.2°C

  • The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off

  • Heating temperature: room temperature ~ 500℃.

  • Data connector : The SD card also records the instrument's running data in real time.

  • Timing function: the running time of the instrument can be set.


Application:

Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.


Work plate Dimension [W x D]254x254mm(10 inch)
Work plate materialGlass ceramic
Heating position1
Heating temperature rangeRoom Temp.-500℃, increment 1℃
Temperature control accuracy±1℃ (<100℃)±1%(>100℃)
Safety temperature540℃
Temperature,time displayLCD
Timer function1min-99h59min
Temperature display accuracy±0.1℃
External temperature sensorPT1000(±0.2℃)
"Hot" warning        50℃
Protection classIP21
Power1400W
Heating output1350W
Voltage Frequency100-120/200-240V 50/60Hz
Dimension[WxDxH]328x424x138mm
Weight7.18kg
Permissible ambient temperature and humidity5-40℃,80%RH
