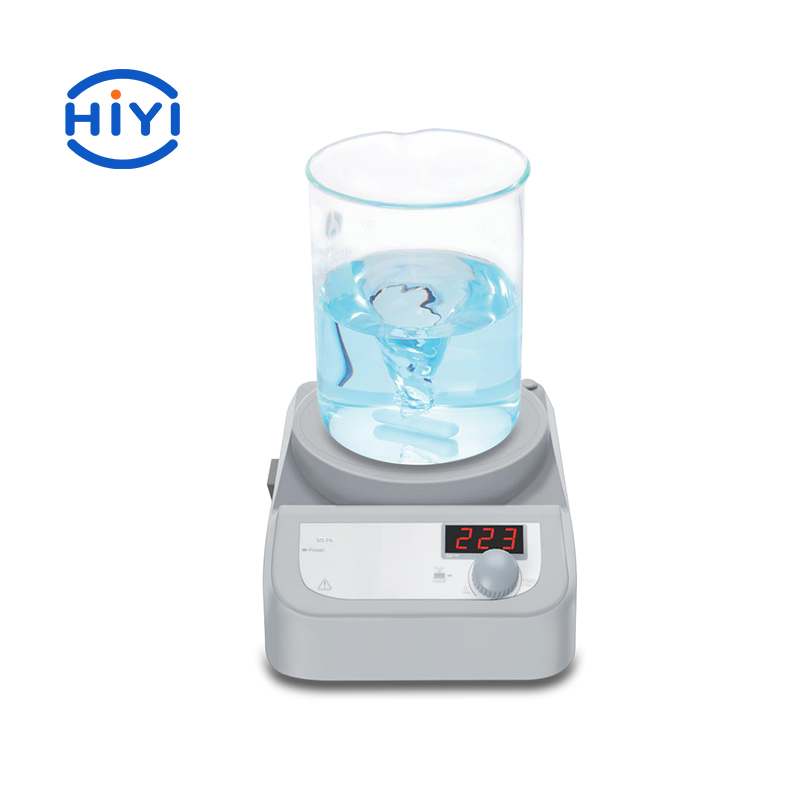

MS-PA LED Digital Magnetic Stirrer
Features:
• Digital speed control within the range of 100-1500rpm
• Max. stirring quantity of H2O at 3L
• LED display shows speed
• Nylon+GF housing provides a good performance of chemical resistance
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
| Specifications | MS-PA |
| Work plate dimension[WXD] | φ135mm(5 inch) |
| Work plate material | Nylon+GF |
| Motor type | Brushless DC motor |
| Motor input power | 5W |
| Motor output power | 3W |
| Power | 15W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 3L |
| Max. magnetic bar[length] | 50mm |
| Speed range | 0-1500rpm |
| Speed display | LED |
| Protection class | IP42 |
| Dimension [W x D x H] | 150×260×80mm |
| Weight | 1.8kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH
|
