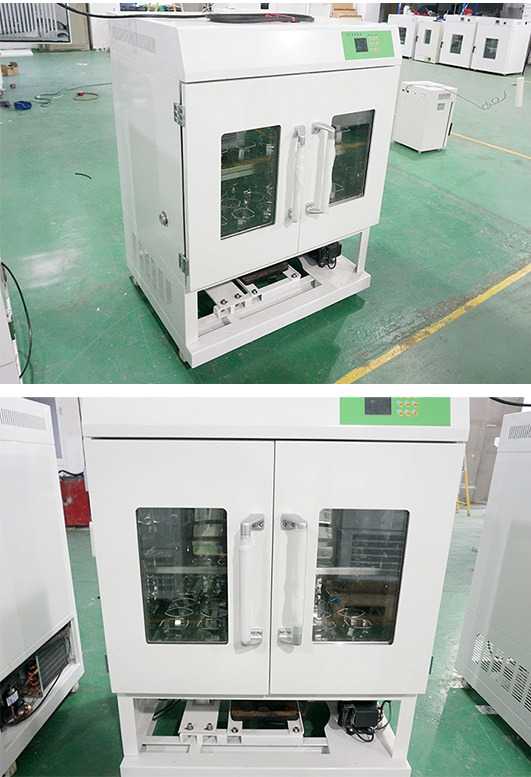

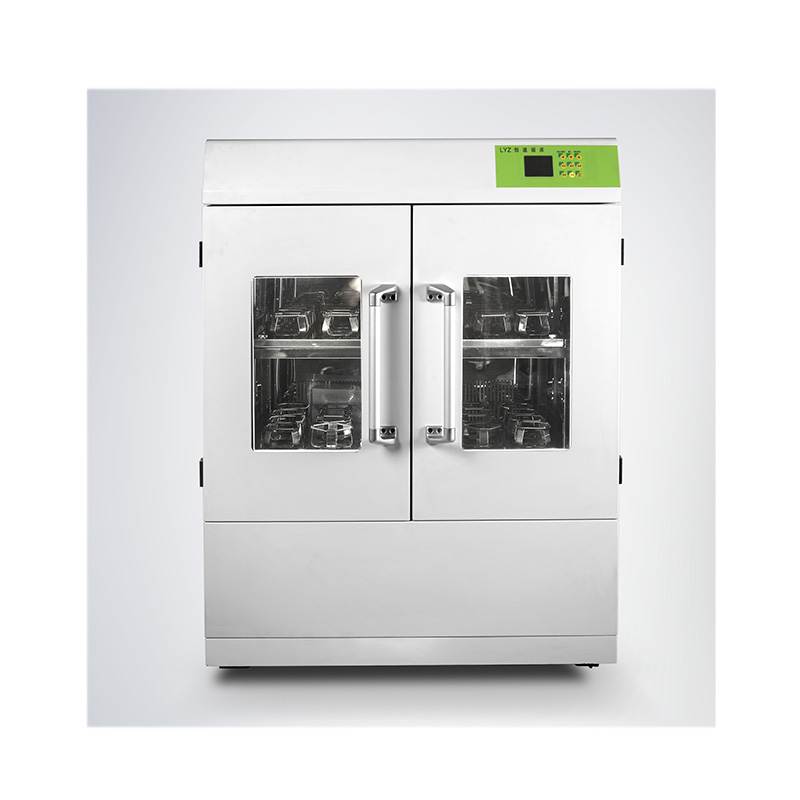

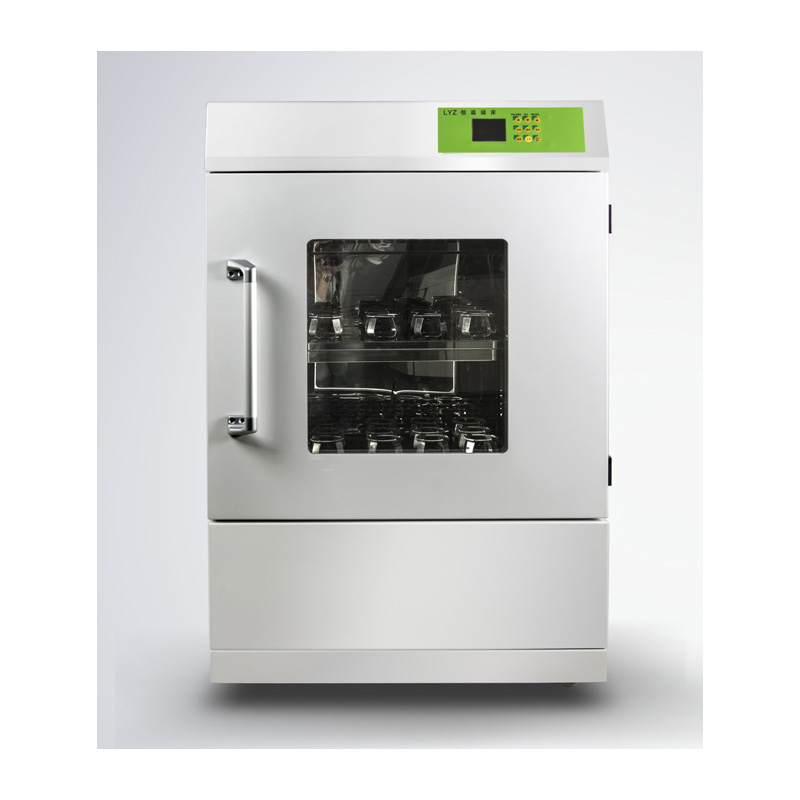

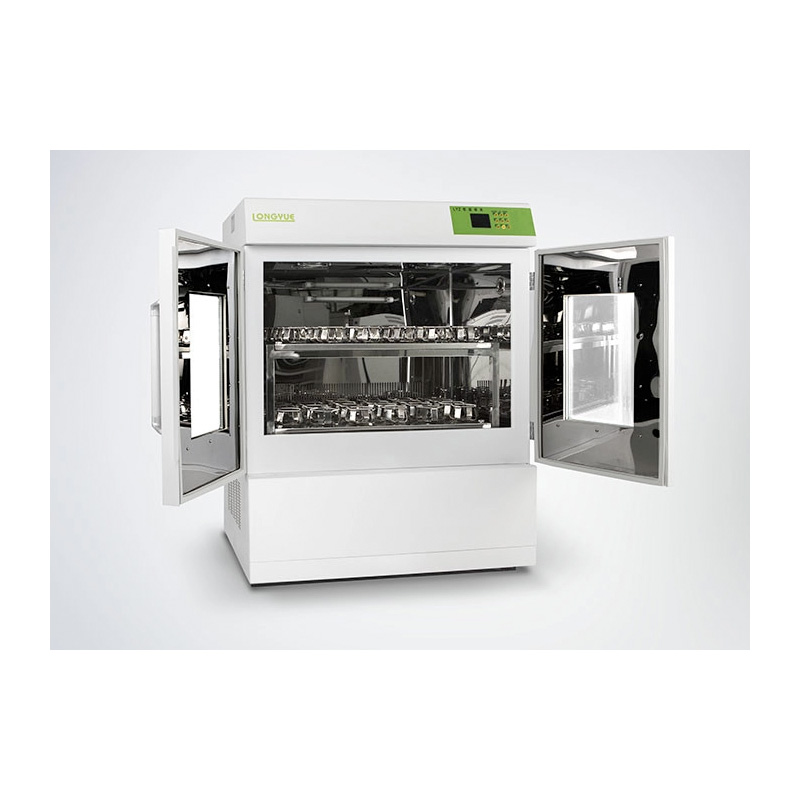

LYZ Series LCD Orbital Shaker Incubator Single Door 2 Tray Orbital /Double Door & Double Layer
Integrated with incubator and shaker to save space and cost.
High quality steel shell, polished stainless steel chamber.
Unique slope design panel with large LCD display, better visual effect.
With operation data memory and password locking function to eliminate faulty operation.
Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
When the measured temperature deviates from set temperature by 3Ȣ (can be set arbitrarily) will automatically stop heating and send out audible and visual alarms.
LYZ-2102C, LYZ-2102, LYZ-2112B equips with strong and fast refrigeration system for instant cooling requirements, automatic defrost.
The most advanced large torque motor to ensure continuous work without maintenance.
With large view window and built-in lighting for easy observation.
Low noise , luxury and beautiful appearance.
Equipped with leakage protection.
Options: 1. Universal Tray 2. Stainless steel fask clamp (50ml,100ml,250ml,500ml,1000ml,,2000ml,3000ml,5000ml available)
| Model | LYZ-2102C (Single door) | LYZ-1102C (Single door) | LYZ-2102 (Double door) | LYZ-1102 (Double door) | LYZ-2112B (Double door) | LYZ-1112B (Double door) |
| Shaking Speed(rpm) | 40-300 |
| Speed Accuracy(rpm) | ±1 |
| Swing Amplitude(mm) | Φ26 |
| Standard Configuration | 250ml×24 | 250ml×35 or 500ml×24 | 250ml×45 or 500×37 |
| Maximum Capacity | 100ml×48 or 250ml×24 or 500ml×18 or 1000ml×12 | 250ml×70 or 500ml×48 or 1000ml×24 or 2000ml×8 | 250ml×90 or 500ml×74 or 1000ml×36 or 5000ml×8 |
| Tray Size(mm | 500×350 | 740×460 | 970×760 |
| Power Rating(W) | 550 | 380 | 750 | 550 | 1420 | 1150 |
| Temperature Range(℃) | 4-60 | RT+5-60 | 4-60 | RT+5-60 | 4-60 | RT+5-60 |
| Temperature Accuracy (℃) | ±0.1 |
| Temperature Uniformity(℃)) | ±1 |
| Timing Range | 1-9999min |
| Display | LCD |
| Power Supply | AC220V～240V±10% , 50～60HZ |
| Tray Included | 2 |
| Volume W×D×H(mm) | 66×44×65(170L) | 84×52×64(280L) | 109.5×62.5×85(582L) |
| Exterior Size(W×D×H)mm | 70×56×126 | 95×70×126 | 120×82×160 |
| Net Weight(kg) | 165 | 140 | 240 | 220 | 425 | 456 |
