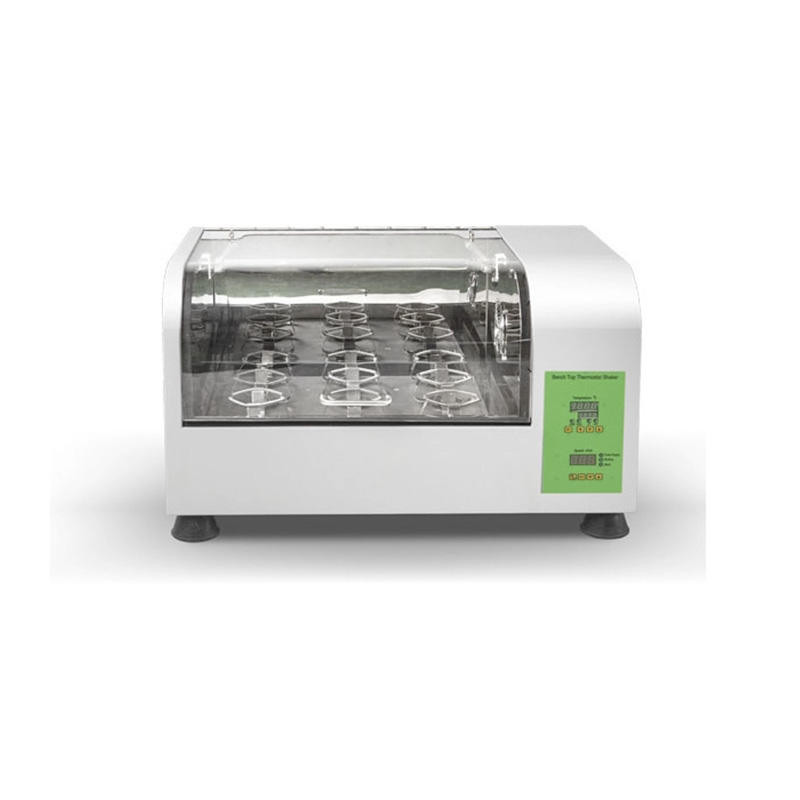

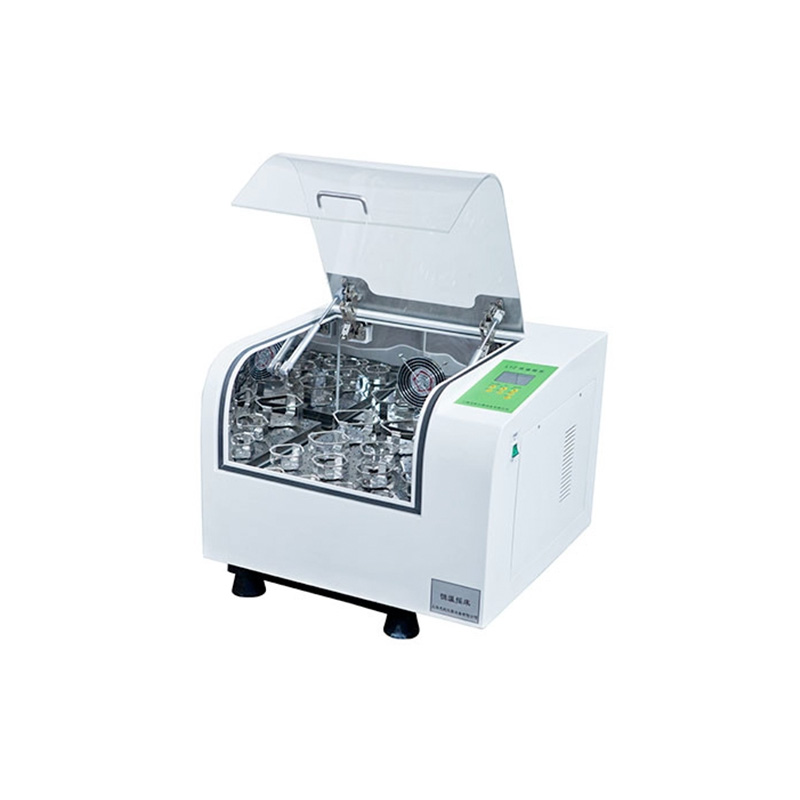

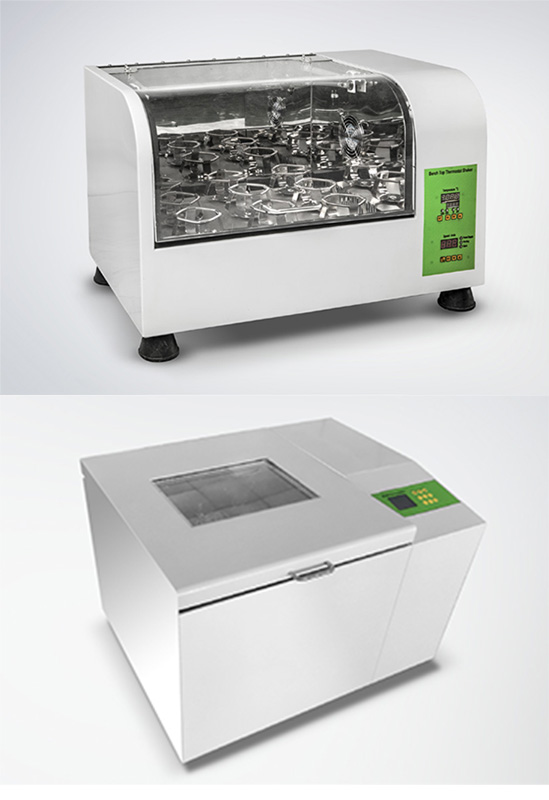

LYZ-B Laboratory Desktop Constant Temperature Shaker Incubator
Imported brand compressor (LYZ-200B).
Integrated with incubator and shaker to save space and cost.
ABS shell, polished stainless steel chamber.
Large LCD screen to display temperature and shaking speed.
With operation data memory function to eliminate faulty operation.
Auto-recovery after power interruption as originally programmed.
Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
Brushless DC motor, more stable and reliable.
Equipped with leakage protection.
APPLICATION:
This combined shaker and incubator is ideal for scientists doing cell culturing procedures, especially suspension culture applications. It is compact enough to be positioned on the laboratory bench.
| Model | LYZ-103B | LYZ-100B | LYZ-200B |
| Shaking Speed (rpm) | 20-300 |
| Speed accuracy (rpm) | ±1 |
| Swing amplitude(mm) | Φ26 |

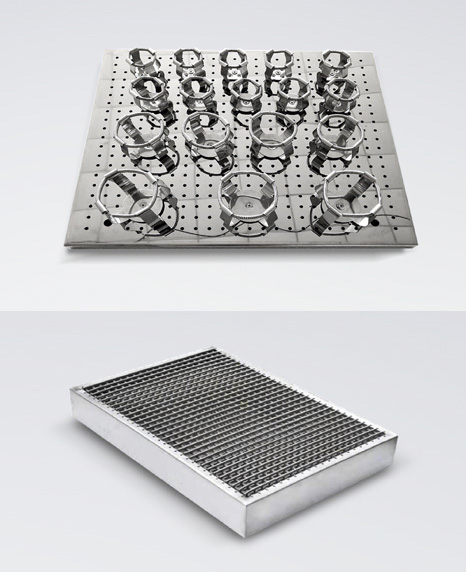

| Standard configuration | 100ml×9 | 50ml×4, 100ml×4 ,250ml×3, 500ml×3 | 50ml×5, 100ml×5 ,250ml×4, 500ml×3 |
| Maximum capacity | 50ml×12,100ml×9 | 50ml×20 or 100ml×16 or 250ml×12 or 500ml×9 | 100ml×20 or 250ml×16 or 500ml×12 or 1000ml×5 or 2000ml×4 |
| Tray Size(mm) | 295×253 | 400×370 | 450×410 |
| Timing Range | 1-9999min |
| Temperature Range(℃) | RT+5～60 | RT+5～60 | 4～60(Cooling) |
| Temperature Accuracy (℃) | ±0.1 |
| Temperature uniformity(℃) | ±1 |
| Display | LCD |
| Tray Included | 1 |
| Exterior Size(W×D×H)mm | 440×410×390 | 600×580×510 | 780×682×560 |
| Package Size (W×D×H)mm | 580×530×540 | 740×700×660 | 920×800×610 |
| Net/Gross weight(kg) | 31/41 | 72/88 | 100/125 |
| Volume (W×D×H)mm | 320×295×190 | 440×405×270 | 480×450×320 |
| Power Rating | 220W | 320W | 580W |
| Power Supply | AC 220～240V, 50～60Hz
|
