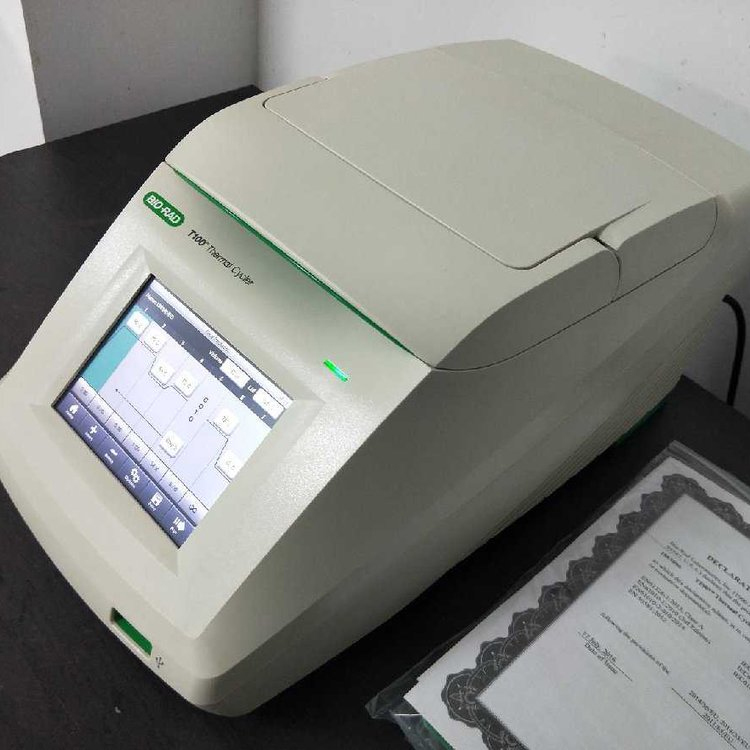

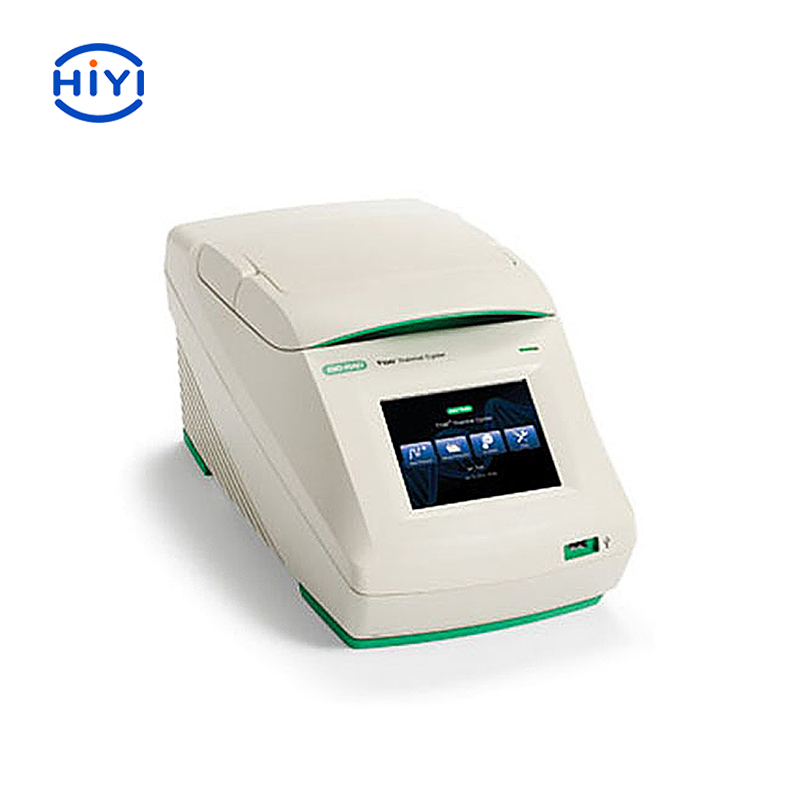

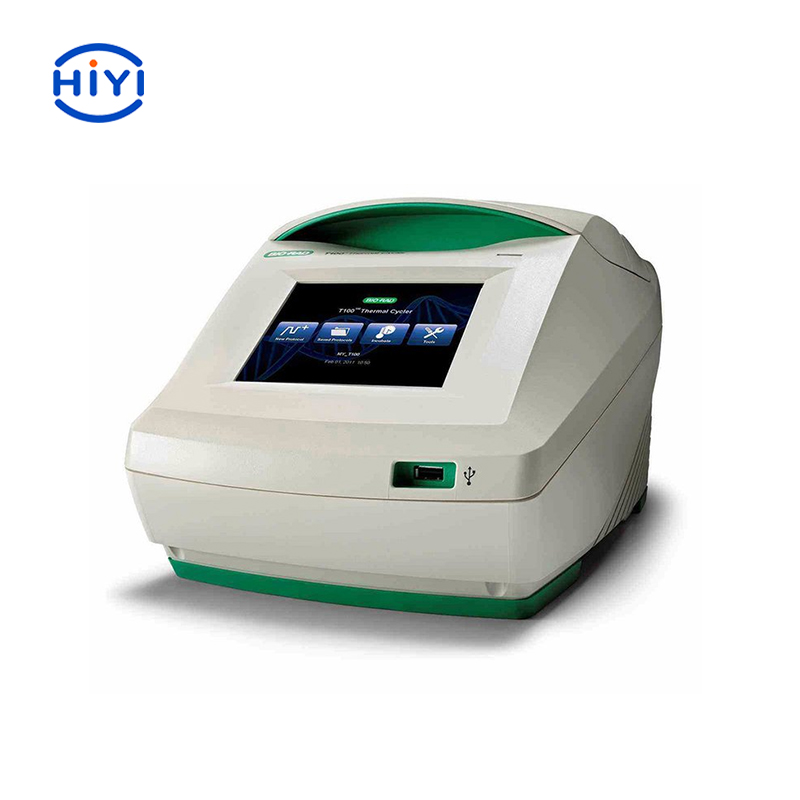

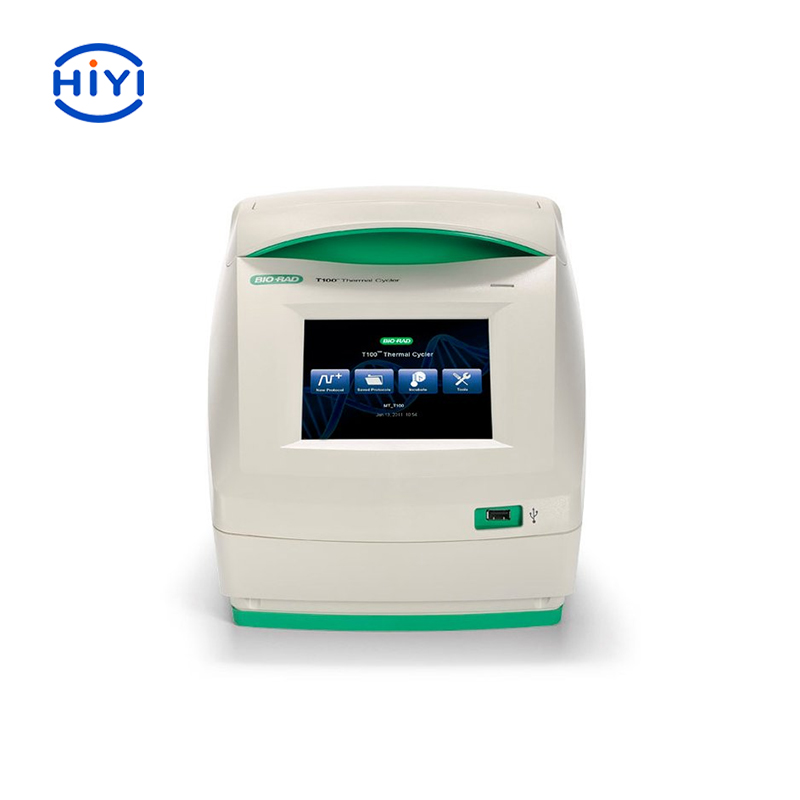

Bio-Rad T100 Thermal Cycler
The T100 thermal cycler is a small thermal cycler offering a comprehensive set of convenient features in a small footprint. This compact thermal cycler features an intuitive touch-screen user interface to make running PCR easy. Thermal gradient technology allows you to quickly optimize your reaction in a single run. With its robust design, the T100 system is a reliable personal thermal cycler that delivers exceptional performance for years — Launch the System Tour to test drive the T100 thermal cycler now.
Intuitive touch screen — easy programming using a large color touch screen and intuitive interface
Consistent results — robust design ensures effective and consistent performance run to run
Easy optimization — this gradient thermal cycler allows fast PCR optimization using a unique thermal gradient
Easy protocol management — protocols can be organized using personalized folders or a USB flash drive
Small space-saving footprint — the T100 is a compact thermal cycler that fits in any laboratory
Applications and Uses for the T100 Thermal Cycler
| Sample capacity | 96 x 0.2 ml tubes, 0.2 ml tube strips, or 1 x 96-well plate |
| Maximum ramp rate, °C/sec | 4 |
| Average ramp rate, °C/sec | 2.5 |
| Temperature range | 4–100°C |
| Temperature accuracy | ±0.5°C of programmed target |
| Temperature uniformity | ±0.5°C well-to-well within 30 sec of arrival at target temperature |
| Input power | 100–150 VAC, 50–60 Hz; 220–240 VAC, 50–60 Hz; 700 W maximum |
| Display | 5.7'' VGA color touch screen |
| Port | 1 USB A |
| Memory | 500 typical programs; unlimited with USB flash drive expansion |
| Dimensions (W x D x H) | 26 x 47 x 23 cm (10 x 18 x 9'') |
| Weight | 9 kg (20 lb) |
| Gradient range | 30–100°C |
| Temperature differential range | 1–25°C |
