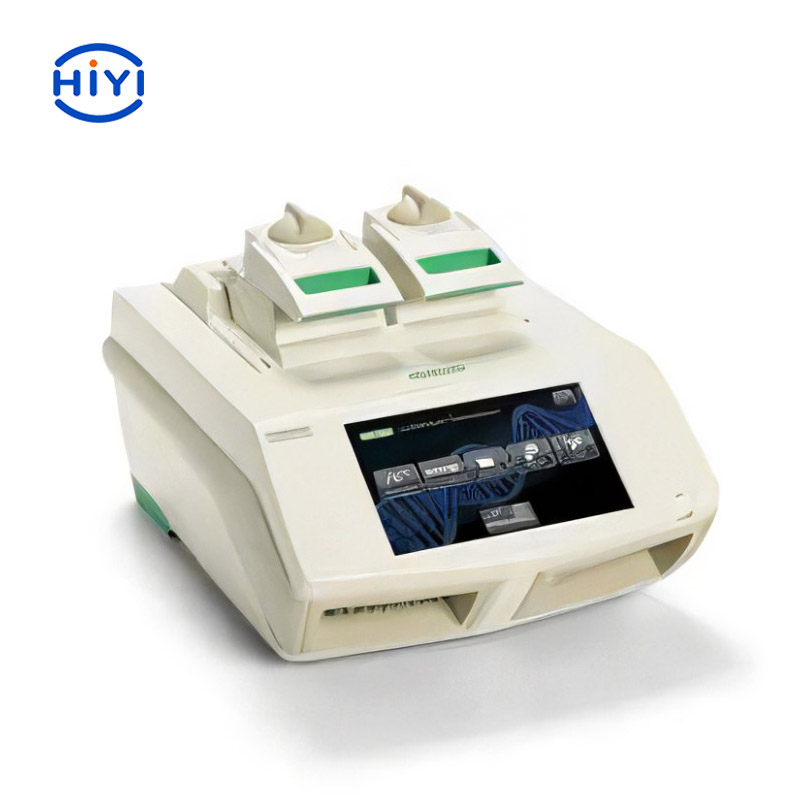

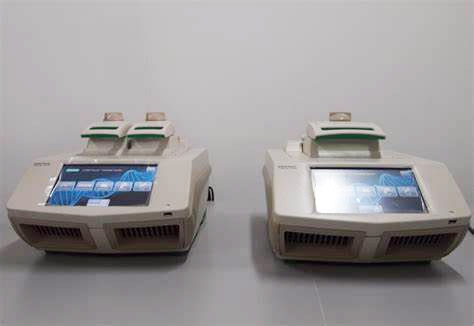

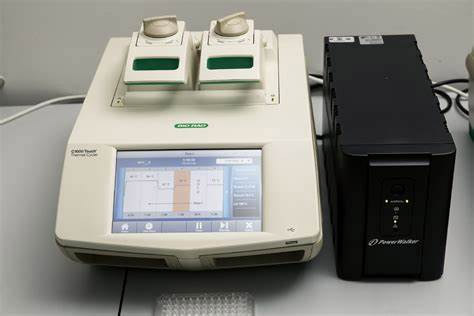

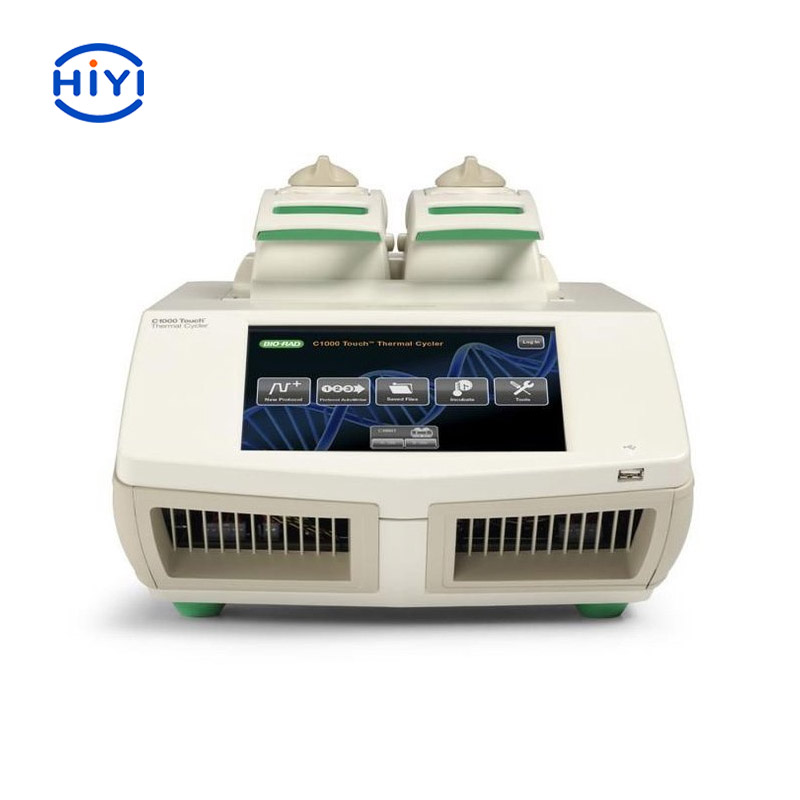

Bio-Rad C1000 Touch Thermal Cycler
The C1000 Touch thermal cycler offers superior performance and a large color touch screen for easy programming. This fully modular platform is able to accommodate different throughput needs with easily interchangeable reaction modules that swap in seconds without tools. Each PCR module has a fully adjustable heated lid that supports a wide range of vessels and sealers, including low-profile and standard-height PCR plates.
Quick and easy protocol programming — 2 programming options, including the Protocol Autowriter, which automatically generates customized standard, fast, and ultrafast protocols
Easy protocol editing — the large color touch screen and redesigned navigation make editing and running protocols easy
Flexible platform — increase throughput capability by linking up to 3 additional S1000 thermal cyclers or adding PC control for up to 32 cyclers
Convenient file management — keep protocols organized using personalized folders or a USB flash drive
Thermal gradient — quickly and easily identify optimal annealing temperatures by using the programmable temperature gradient
Applications and Uses:
Amplification/PCR
Cloning
Cycle sequencing
Gene expression studies
Mutagenesis
| Thermal Cycler | C1000 Touch™ |
| Input power, W, maximum | 850 |
| Frequency, Hz, single phase | 50–60 |
| High resolution color display, cm | 12 x 9 |
| Ports (USB A / USB B) | 5/1 |
| Fuses — 2 (A/V/mm) | 10/250/20 |
| Onboard memory, protocols | >1,000 |
| Dimensions (W x D x H)、cm/in | 33 x 46 x 20/13 x 18 x 8 |
| Weight, kg/lb | 10/23 |
| Temperature control modes | Calculated and block |
| Security features (password protection, optional log-in, and secure mode) | Yes |
| Reporting (exportable run logs and system error logs) | Yes |
| Onboard software, Windows CE 6.0 | Yes |
| PC compatibility (Windows XP or higher) | Yes |
| USB peripheral compatibility (mouse, USB flash drive, bar code reader) | Yes |
| Real-time PCR upgrade | Yes |
| Instant incubate | Yes |
