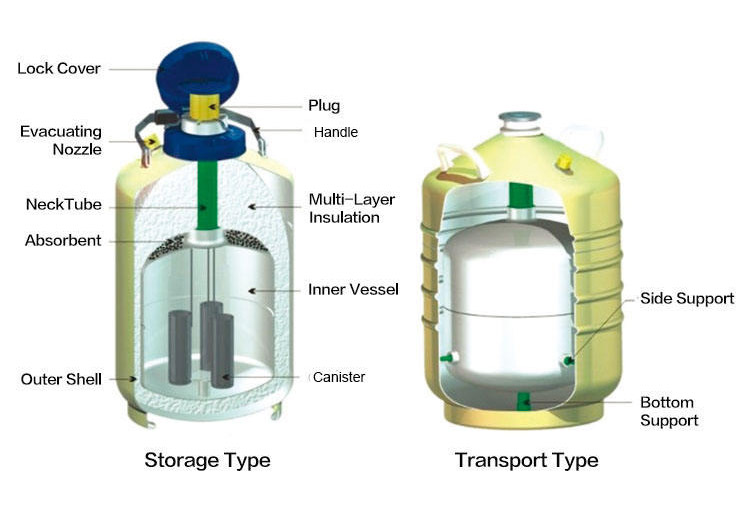

Liquid nitrogen tanks are generally divided into liquid nitrogen storage tanks and liquid nitrogen
transportation tanks.
The storage tank is mainly used for the static storage of indoor liquid nitrogen, which is not suitable for long-distance transportation under working conditions; in order to meet the transportation conditions, the liquid nitrogen transportation tank has a special shock-proof design.
Besides static storage, it can also be used for transportation when filled with liquid nitrogen, but
severe collisions and vibrations should also be avoided.
YDS Series Liquid Nitrogen Biological Container
1. Great brand advantage
The introduction of foreign technology, strictly in accordance with the international standard, established a long-term cooperation relations with many universities and scientific research departments, technical ability is approved.
2. product quality in zero risk
Formal authorization, every liquid nitrogen tank is high-quality product, no defective goods or second-hand refurbishment tanks.
3. lightweight, Made of high strength aviation aluminum alloy
High vacuum multilayer insulation design, Optional lock cover to protect the safety of samples stored in the container, Optional pallet transporter to facilitate product movement indoors, It is equipped with a protective sleeve to prevent the product from being bumped during use.
4. Standard protective cases and pail
other parts such as lock lid, hand knead pressurized liquid nitrogen pump, Pedal liquid nitrogen pump, level ruler, carrier, liquid nitrogen storage straw, 2 ml standard cryopreserved tubes, large diameter liquid nitrogen tank basket, low liquid level alarm, freely selected.
5. Accept OEM special specification
Company is customer-oriented, with a complete range of models and big production & sales volume, provide OEM as requirements of customers.
6. Application scenario
Molicue Food, Animal husbandry industry, Medical and scientific research, Beauty industry, Stage effects, Cryogenic treatment etc.
Product Number | Volumn | Neck | Outside | Height | Empty | Liquid Nitrogen Storage Days | Liquid Nitrogen | ||
Diameter | Diameter | Weight | Evaporation | ||||||
L | ≤mm | ≤mm | ≤mm | ≤kg | Qualified | Excellence | Qualified | Excellence | |
YDS-2 | 2.5 | 30 | 224 | 370 | 2.8 | 20 | 25 | 0.12 | 0.1 |
YDS-3 | 3.15 | 50 | 224 | 420 | 3.4 | 26 | 31 | 0.12 | 0.1 |
YDS-6 | 6 | 50 | 305 | 460 | 4.5 | 52 | 63 | 0.12 | 0.1 |
YDS-10-210 | 11.2 | 210 | 305 | 550 | 7 | 13 | 18 | 0.7 | 0.6 |
YDS-15 | 16 | 50 | 365 | 600 | 9 | 134 | 161 | 0.12 | 0.1 |
YDS-20 | 21 | 50 | 365 | 610 | 9.5 | 170 | 210 | 0.12 | 0.1 |
YDS-30-80 | 32 | 80 | 446 | 670 | 14.5 | 147 | 174 | 0.26 | 0.22 |
YDS-30-125 | 32 | 125 | 446 | 670 | 14.6 | 90 | 112 | 0.371 | 0.3 |
YDS-35-80 | 35.5 | 80 | 446 | 695 | 17 | 159 | 187 | 0.25 | 0.2 |
