Master Pro Touch gives many possibilities for operation with its extremely easy and user-friendly design and software. You can transfer data to PC in Microsoft Excel with this milk analyzer. You can input fast and easily customers and liters data using the on-screen keypad. Master Pro Touch gives full review of the stored results in spreadsheet.

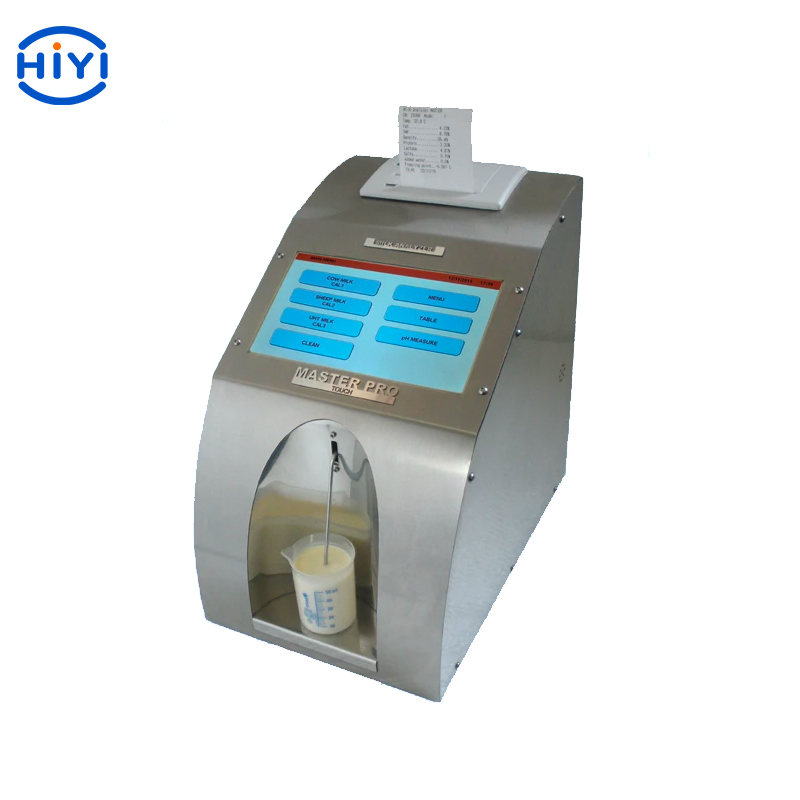

Master Pro Touch Milk Analyzer
MASTER PRO TOUCH – the ultrasonic milk analyzer with touch screen. Innovative technology ensures easy and efficient operation with the device. Master Pro Touch is new generation milk analyzer equipped with 7’ touch screen graphic display.
Advantages
Fast and easy overview of the records saved in electronic table directly on the analyzers’ display, without using a PC.
Data transfer option to PC in Microsoft Excel is available for Master Pro Touch.
Fast and easy input of parameters for calibration and corrections directly on the buttons as well as on-screen keypad for entering customers and liters data.
7‘ display allows the sample measurement results to be visible on the screen until next analysis is in process.
Available options (by customers’ request only) – conductivity, built-in printer, USB flash memory stick, second peristaltic pump for automatic cleaning, PH, accumulator, weighting scales, remote display.
Three calibration channels are available. Standard calibrations for milk analyzer MASTER PRO TOUCH are for Cow milk, Sheep milk, UHT.
The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
Highlights
Default options:
1. Integrated clock with date.
2. Bilingual menu.
3. Three factory preset calibrations and option for calibrations on customer's request.
4. Laser engraved inscription.
5. Memory for 500 measurements.
6. USB 2.0 for PC connection.
7. RS 232 port printer support.
Options on customers request:
1. pH system
2. Conductivity system
3. Flash drive support
4. Bluetooth support
5. Second peristaltic pump for automatic cleaning
6. Inbuilt printer
7. Electronic scale - 130 kg max capacity
8. External display
9. Inbuilt battery
Component | Range | Accuracy |
FAT | 0% – 35% (option to 45%) | ±0.06% |
SNF | 3% – 40% | ±0.15% |
Density | 1000 – 1160 kg/m³ | ±0.3 kg/m³ |
Protein | 2% – 15% | ±0.15% |
Lactose | 0.01% – 20% | ±0.2% |
Salts | 0.4% – 1.5% | ±0.05% |
Added water | 0% – 70% | ±3% |
Sample Temperature | 5°C – 40°C | ±1°C |
Sample speed | 60/30sec. | ±0.1sec. |
Freezing point | -0.4°C to -0.7°C | ±0.005°C |
Electrical conductivity * | 2-14mS/cm | ±0.05mS/cm |
pH* | 0-14 | ±0.05 |
*Optional parameter
Parameter | Range |
Milk Fat of the Milk Tester | Standard range is between 0% and 35%. But you could have the option to increase it to 45%. |
Solids-Non-Fat (SNF) | Range of measurement of Master Pro Touch milk tester is between 3% and 40%. |
Milk Density | This milk tester measures density in the range 1000 – 1160 kg/m³. |
Protein in Milk Measurement | This particular milk tester can detect protein in the scope of 2% – 15%. |
Lactose Measurement | The range of Master Pro Touch milk tester is between 0.01% – 20%. |
Added Water in Milk | Master Pro Touch can detect the added water in milk in the range 0% – 70%. Approximate accuracy of the measurement is +/-3%. |
pH of Milk | This milk tester can be equipped additionally with a pH probe and can measure milk pH in the range 0 – 14. |
Electrical Conductivity Testing | This milk analyzer can be purchased with an additional option module: conductivity tester. |
