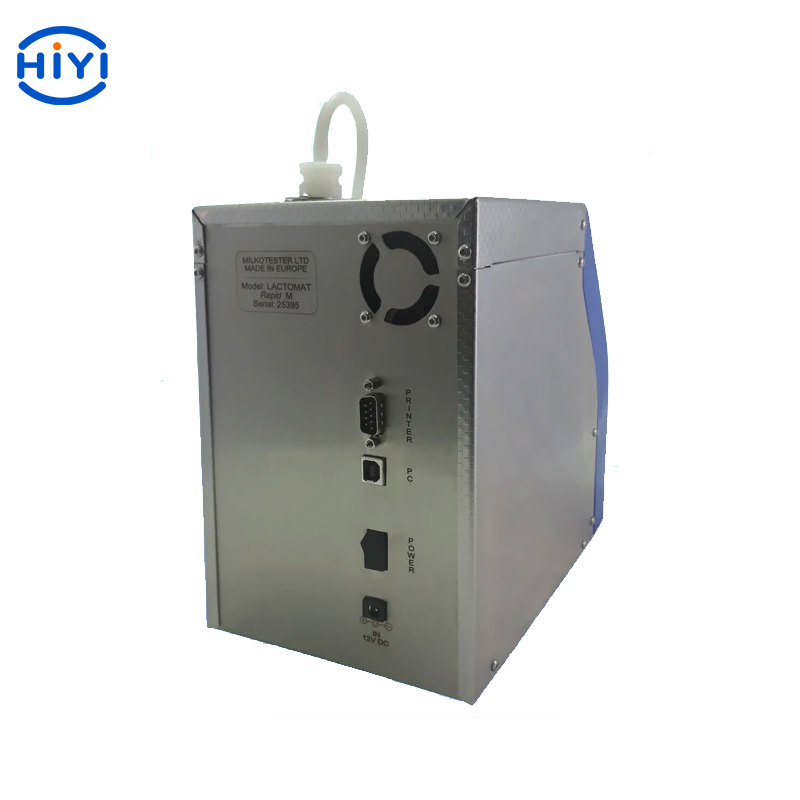

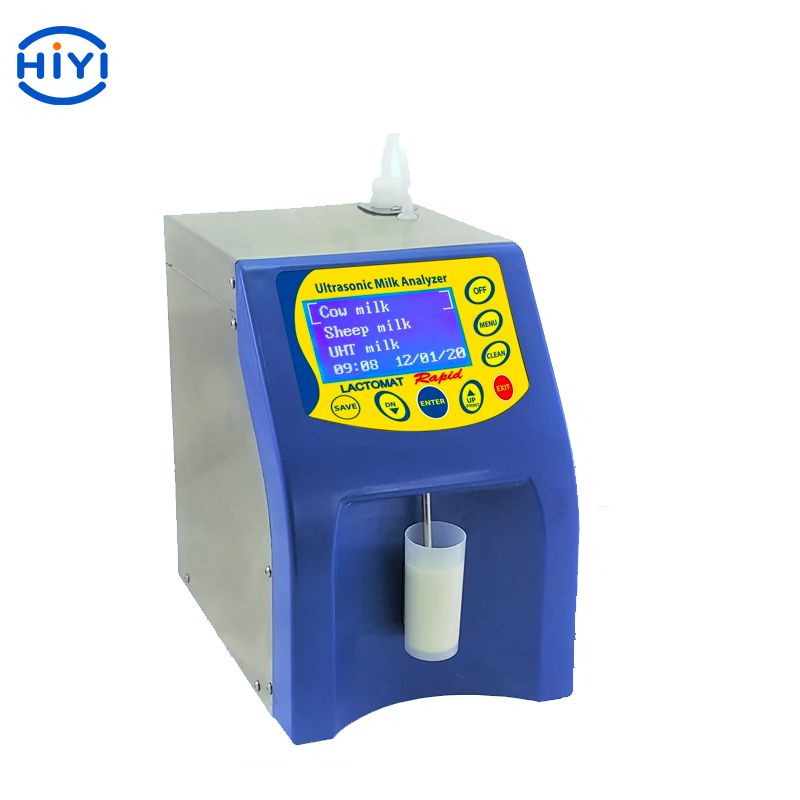

Lactomat Rapid BP is a compact ultrasonic milk analyzer equipped with double measuring cell, balloon pump and inbuilt ventilation system for prevention of overheating in hot environments.
LACTOMAT RAPID BP Ultrasonic Milk Analyzer
Lactomat Rapid BP is a compact ultrasonic milk analyzer equipped with double measuring cell, balloon pump and inbuilt ventilation system for prevention of overheating in hot environments.
Advantage
Fast and high technology testing in 18 sec.
Microprocessor from new generation and improved software.
SMPS based power supply, separated serial ports for printer and PC. Stainless steel and plastic housing.
Three calibration channels are available.
Standard calibrations for milk analyzer Lactomat Rapid DP are for Cow milk, Sheep milk, UHT.
The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
Highlights
Ultrasonic Technology
Very small quantity of milk needed
Memory for 500 measurements
Self calibration without computer
Low power consumption
1 x RS232 connection
Large graphic display
1 x USB connection to PC
ESC POS Printer Support
Built-in keypad
Balloon pump
One year full waranty
Clock (time and date)
No acids or other chemicals are used
Technical Overview | |
Sample Volume | 20 ml. |
Sample Speed | 18sec. |
Sample Temperature | 1˚ C –45˚ C |
Humidity | 0 – 80℅ RH |
Interface | RS 232 Port |
Interface | USB |
AC Power Supply | 95 – 250 V |
DC Power Supply | 12 V |
Dimensions | 145/220/230mm |
Weight | 2.1kg. |
Measuring Ranges | ||
Fat | 0℅ -25℅ | ±0.1℅ |
Solids-Non-Fat (SNF) | 3℅ - 40℅ | ±0.15℅ |
Density | 1000 – 1160 kg/m3 | ±0.3kg/m3 |
Protein | 2℅ - 15℅ | ±0.15℅ |
Lactose | 0.01℅ - 20℅ | ±0.2℅ |
Salts | 0.4℅ - 4℅ | ±0.05℅ |
Add Water | 0℅ - 70℅ | ±3℅ |
Freezing Point | -0.4˚C to -0.7˚C | ±0.005˚C |
Sample Temperature | 1˚C-45˚C | ±1˚C |
