LH-N300 conductivity test pen is equivalent to a conductivity test pen, a TDS test pen and a salinity test pen, the electrode adopts anti-foaming design, accurate and stable anti-interference , Exquisite and compact design concept, clear and easy-to-read data interface, excellent anti-interference performance, combined with high-brightness backlighting, measurement operation can be completed with one hand, and its immersive design makes field testing more flexible and convenient, which can satisfy you different measurement needs.

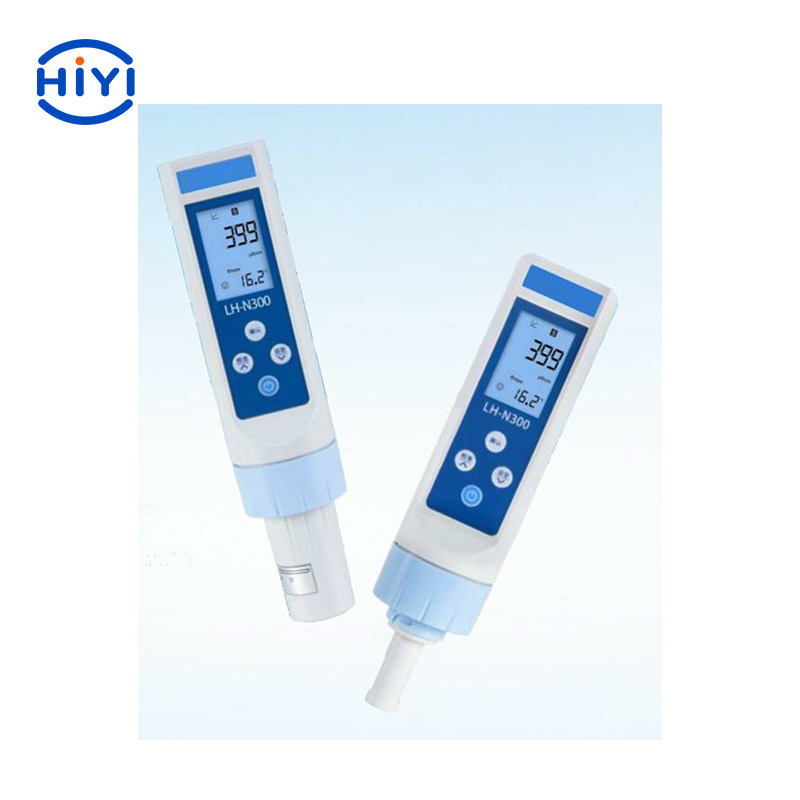

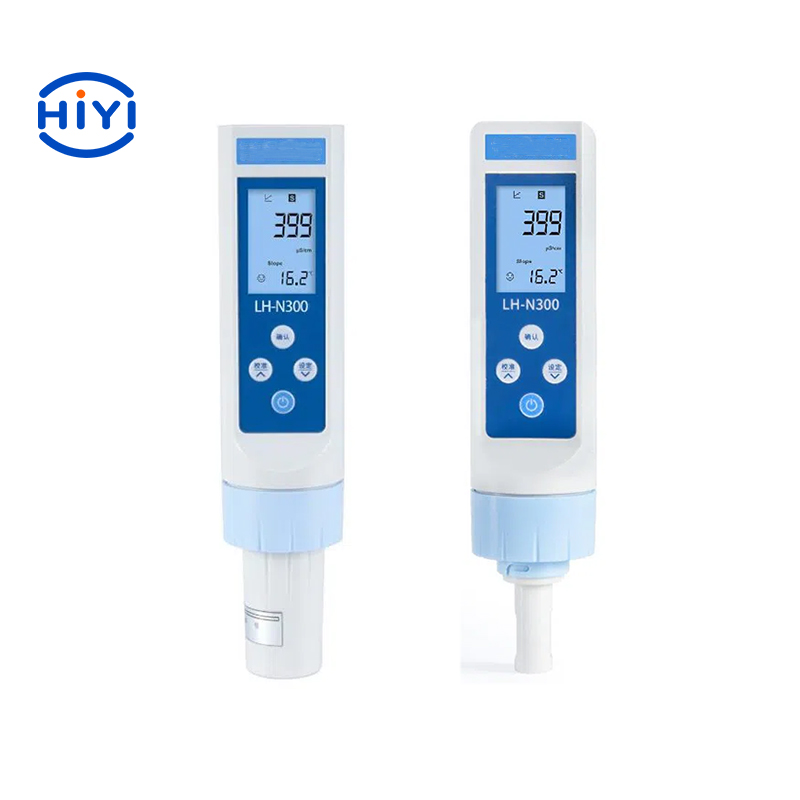

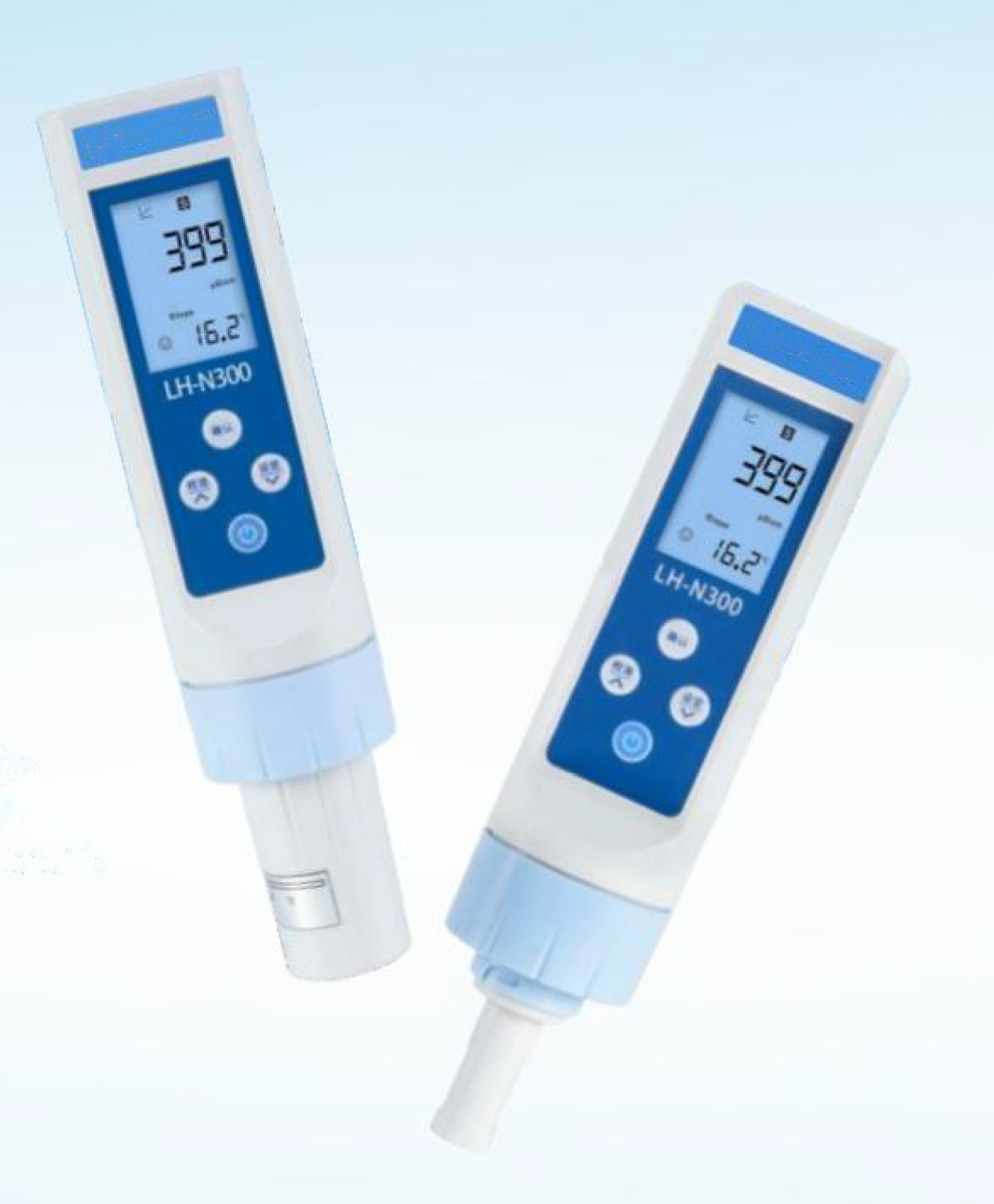

LH-N300 Product Pen Type Conductivity Meter
Features:
Values are automatically locked
Platinum round plane electrode
Multi-line energy storage backlit screen
IP65 protection level
Electrode self-diagnosis
Intuitive and simple operation
Application:
Item | Instrument electronic unit parameters | Complete set of instrument measurement parameters |
Measuring range | 0.0 卩S/cm(ppm)-20.00mS/cm(ppt) | |
Resolution | 0.1 卩S/cm(ppm)・0.01mS/cm(ppt) | |
Measurement accuracy | ±2%F.S | ±3%F.S(After calibration) |
Temperature measurement range | 0-100.0°C/32-212°F | |
Operation temperature range | 0-60.0°C/32-140°F | |
Temperature compensation range | 0.0-60.0°C | |
Temperature compensation | Auto / Manual | |
Temperature coefficient | 0.00-10.00% Adjustable(Ex factory2.00%) | |
Reference temperature | 15-30°C(Adjustable Ex factory25°C) | |
Calibration mode | Automatic range 1-point calibration | |
TDS measurement range | 0.0 mg/L (ppm)-20.00 g/L(ppt) | |
TDS coefficient | 0.40-1.00 Adjustable(Ex factory:0.50) | |
Salinity measurement range | 0.0mg/L(ppm)-13.00 g/L(ppt) | |
Salinity coefficient | 0.6 | |
Conductive electrode | 013mm,K=1.0 | |
Screen | 20*50mm Multiline LCD backlight display | |
Protection level | IP65 | |
Auto backlight | 1 minute | |
Auto shutdown | 20 minutes | |
Power supply | 1x1.5V AAA Battery | |
Size | 185*40*48mm | |
Weight | 95g |
