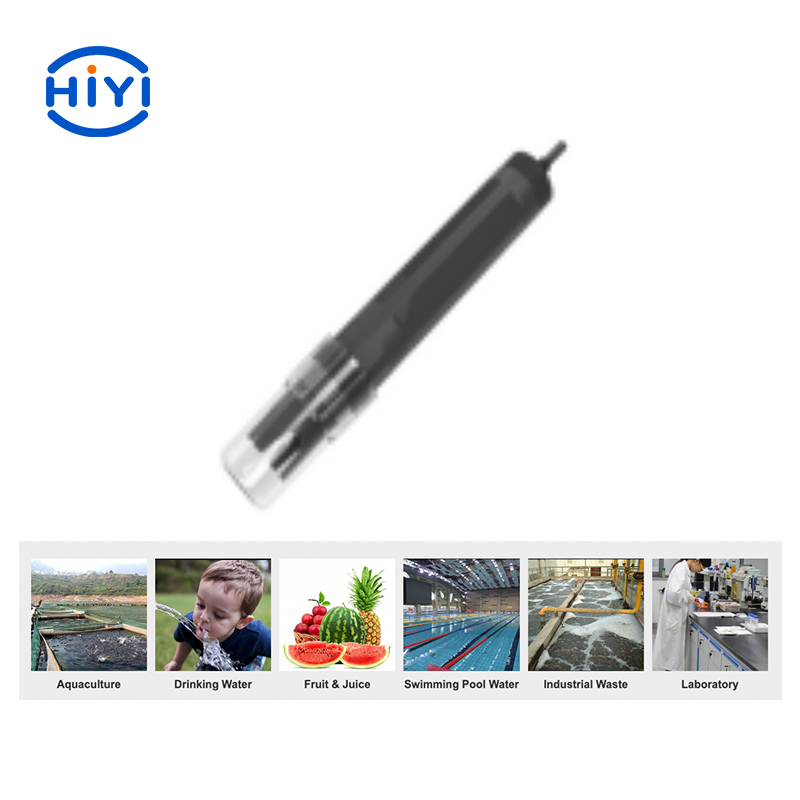

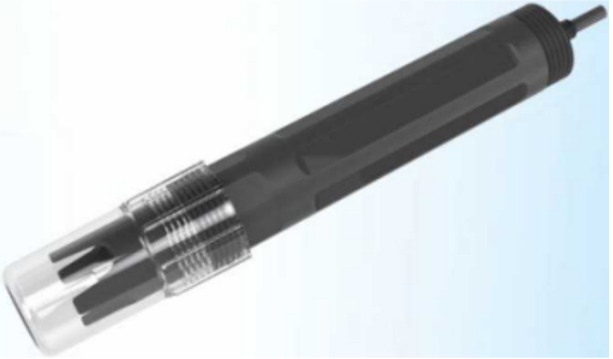

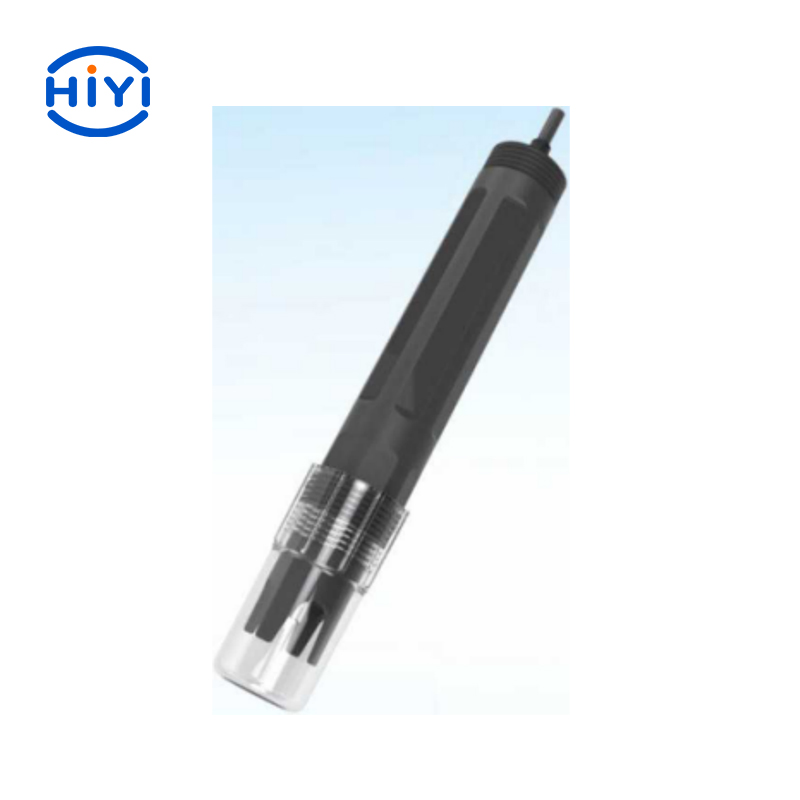

LH-DR31 Online water quality monitoring analyzer
Features:
• Sensor uses antifouling material PTFE liquid coil, can withstand the pollution caused by hydrocarbons and sulfide.lt can be used in severe environment, to ensure long-term monitoring process stability and service life.
• The gel electrolyte used is not easily disturbed by external ions, and will not be affected by changes in external pressure.
• Reliable sealing installation, IP68.
• Digital electrodes support MODBUS/RS485 output.
Application:
lt is suitable for ORP value real-time monitoring in various industries such as food processing, aquaculture, waterworks, education and scientific research.
| Measure range | -2000~2000mV |
| Resolution | 1mV |
| Calibration | 1 point calibration |
| Working temperature | 0~60°C |
| Liquid joint material | Platinum. PTFE |
| Mounting thread | 5/4 NPTthread |
| Cable | Standard 5 meters(OEM available) |
| Sensor material | PC |
| IP grade | IP68 |
