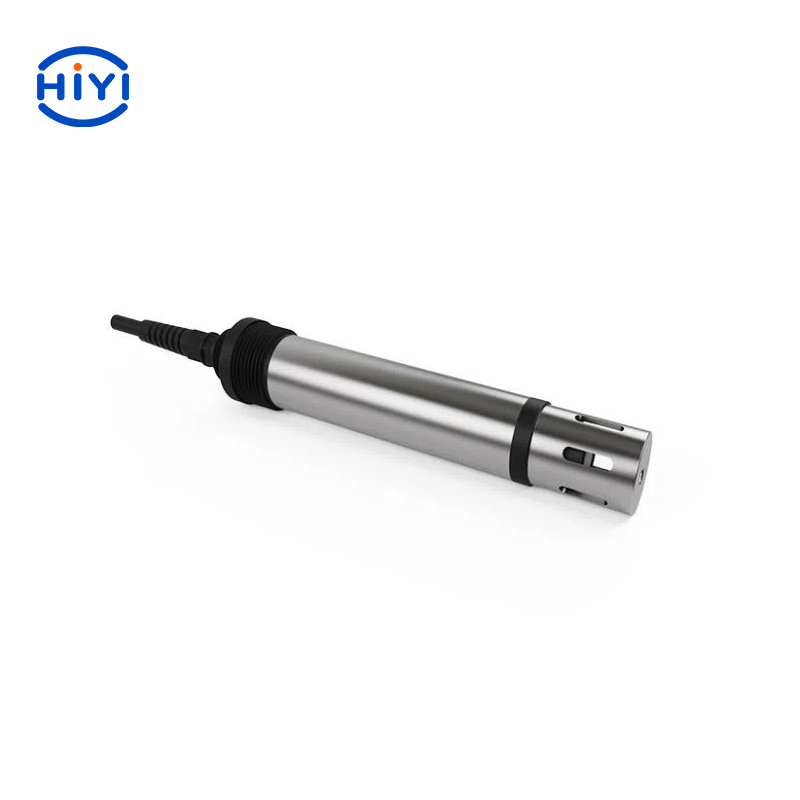

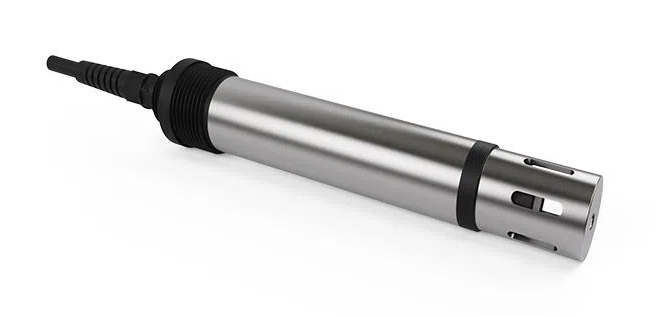

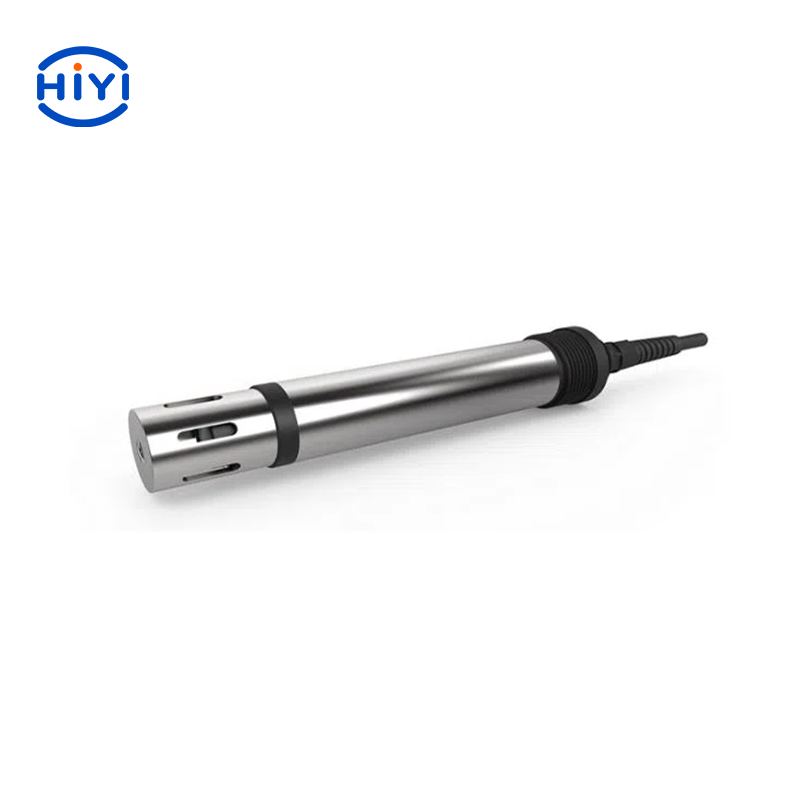

LH-DY06 Fluorescent Dissolved Oxygen
Intelligent Sensor
Features:
• Green excitation fluorescence life detection technology, no electrolyte, no interference, no frequent calibration, stable and reliable measurement.
• Built-in temperature sensor automatic compensation function for water temperature.
• Support MODBUS/RS485 & 4-20mA current interface output.
Application:
| Model | Parameter |
| Measuring range | 0~20.00mg/L or 0~200% saturation |
| Accuracy | ±5% or ±0.3mg/L |
| Response time | 90s |
| Temperature | DS18B20 digital temperature sensor |
| Working temperature | 5 ~ 40°C |
| Pressure of work | <5bar |
| Digital interface | MODBUS /RS485 |
| Analog interface | 4-20 mA (optional) |
| Power supply | 12VDC±20% |
| Size | φ34x222mm |

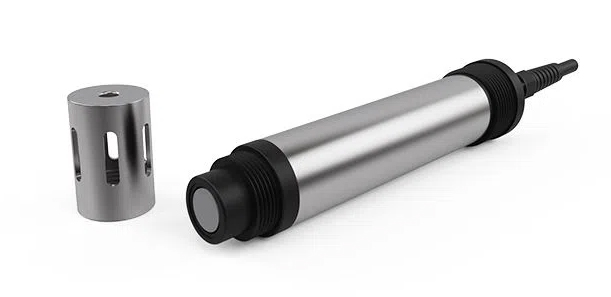

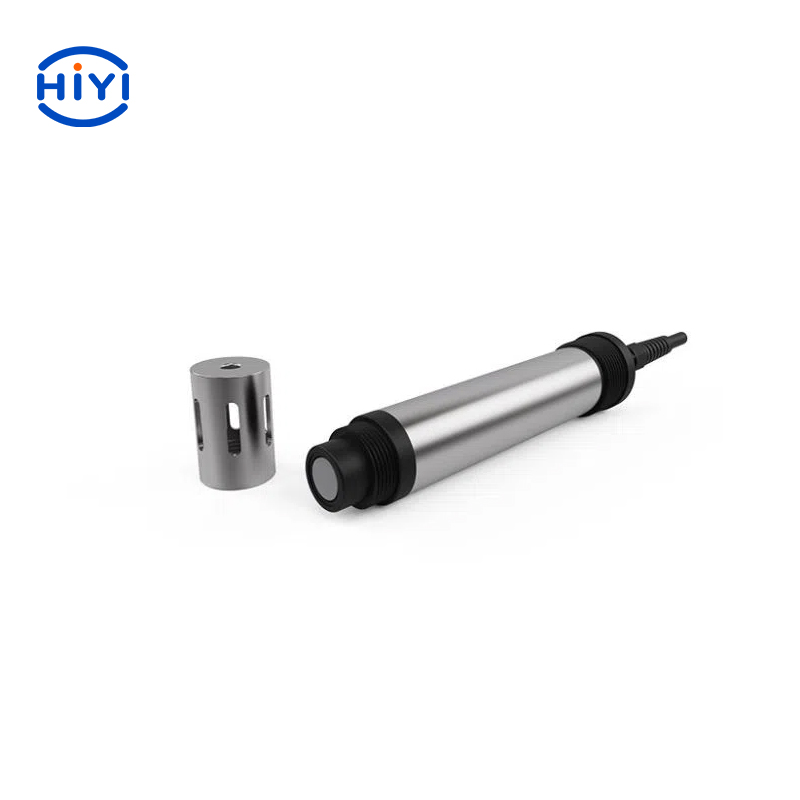

| Lifetime of fluorescent cap | 1 year |
| Material | The main body is stainless steel 316 and the sensitive film is silicone |
| Calibration | One point or two point calibration |
| Protection grade | IP68 |
| Cable length | 8m |
