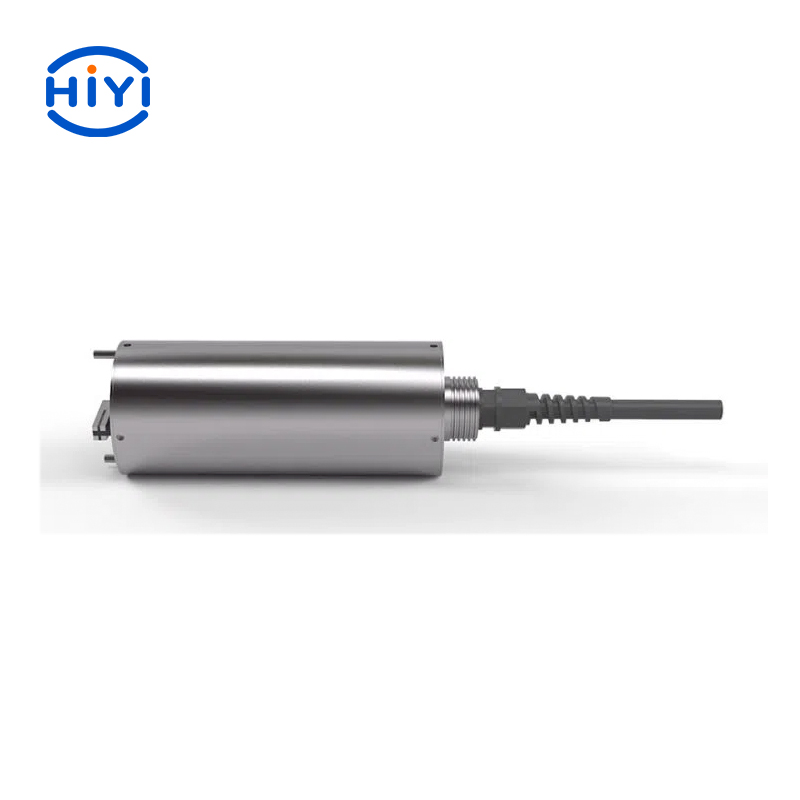

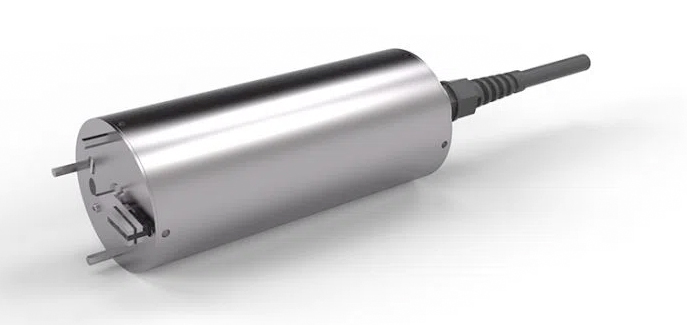

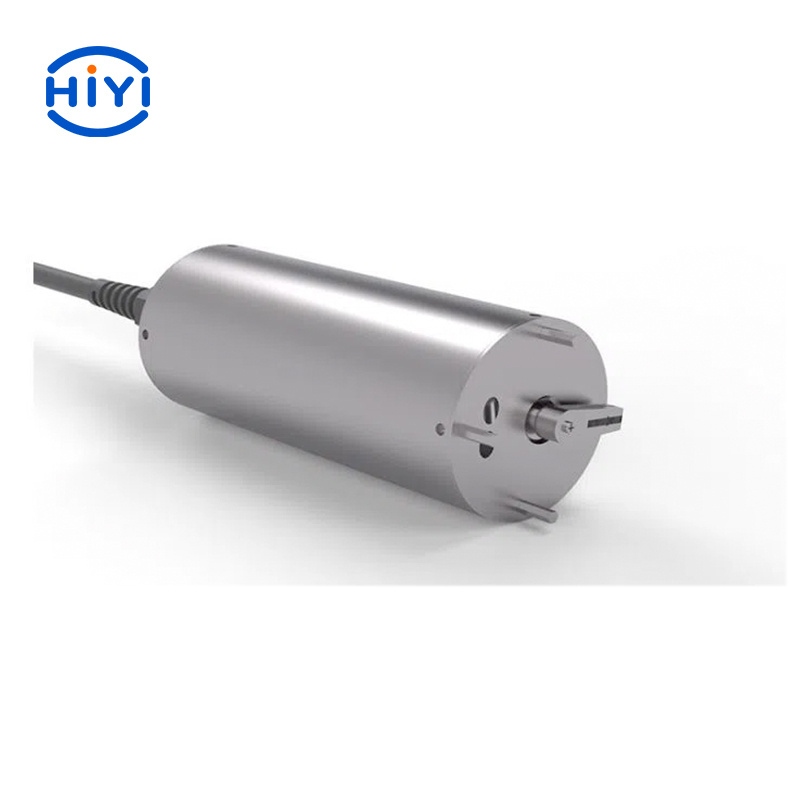

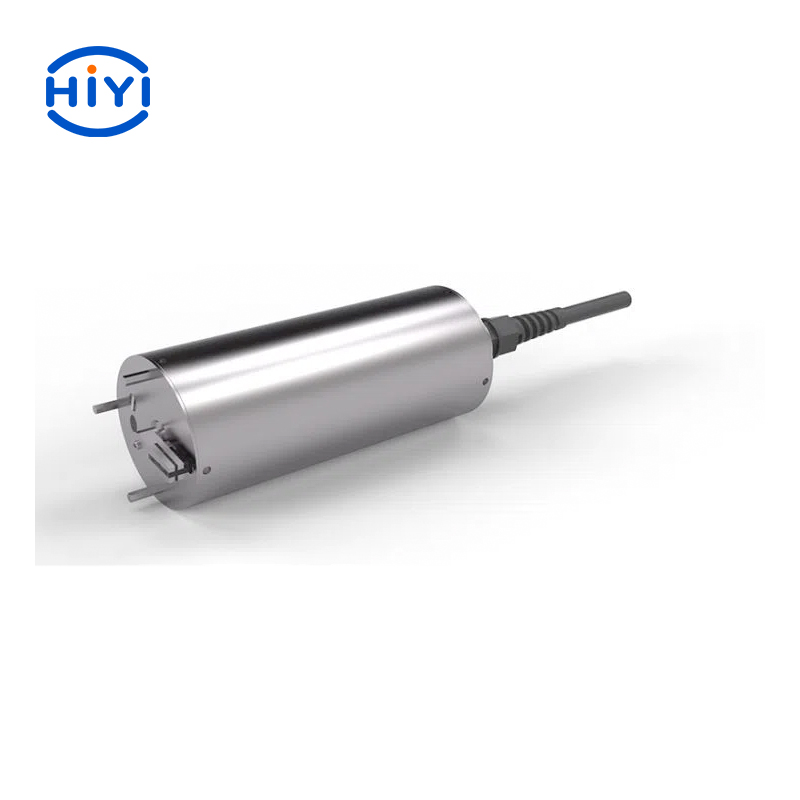

LH-DX01 Online water quality
Suspended solids electrode
Features:
• Can be used for low concentration detection (<1mg/L, with flow cell).
• Self-contained wiper with automatic cleaning function.
• Built-in temperature sensor.
• Corrosion-resistant housing, IP68, can work underwater for a long time.
• Support MODBUS/RS485/4-20mA current interface output.
• Wide test range (0〜3000mg/L).
Application:
| Item | LH-DX01-200 | LH-DX01-1000 | LH-DX01-3000 |
| Measuring range (mg/L) | 0-200 | 0-1000 | 0 ~ 5000 |
| Resolution (mg/L) | 0.01. 1 | 0.1、1 | 0.1、1 |
| Accuracy (mg/L) | W±0.3mg/LorW±6% | W±0.5mg/Lo「W±8% | W±0.5mg/LorW±8% |
| Working temperature | 5 〜40°C |
| Maximum diving depth | 5 meters underwater |
| Digital interface | MODBUS /RS485 |
| Analog interface | 4-20mA |
| Power supply | 12VDC±20%, 1A |
| Calibration | One or two point calibration |
| Size | 54x150mm |
| IP grade | IP68 |
| Installation method | Flow cell installation, immersion installation |
| Flow cell (optional) | 350x117x198mm |
| cable length | 5m (default) |
| material | 516 Stainless Steel |
