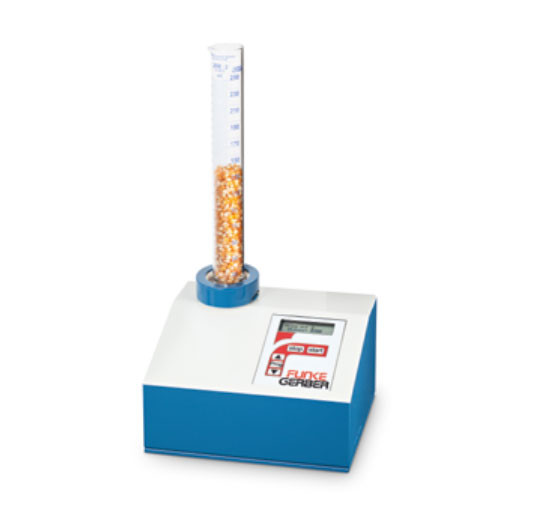

The device makes it possible to determine the tamped volume or density of powdery and granular products. The product enables compliance with the following standards:
• ISO 8967 (milk powder)
• IDF 134 (milk powder)
• USP <616> method I (pharmaceutical powder)
• ISO 8460 (instant coffee) and others
• Type STAV II for determining the Jolting Volume of Powdered Milk
• High Gloss with Single Phase AC motor
• Jolting mechanism with tension lock
• Five digit electric pre selection counter
• Standardised measuring cylinder by weight and graduation
Operation
The jolting volumeter is used to determine the tamped density of diverse amounts of products in the form of powder, fibers or granules by using various sizes of measuring cylinders which are held fast with a retaining cap.
Range of application
• Chemical industry
• Plastic industry
• Pharmaceutical industry
• Food industry
• Similar industries
• Bulk solids
• Grains
• Powder
• Fine powder
• Granules
speed of the camshaft: 100 rpm ± 5 rpm
single-phase AC motor and condenser：50 W
weight of the measuring cylinder with holder: 670 g +/- 45 g
dropping height of the guide punch: 3 mm ± 0.1 mm
noise level acc. to DIN 45635: approx. 80 dB(A)
standard voltage: 230 V/ 50 Hz (special voltage is possible upon request)
net weight: approx. 9 kg
dimensions: approx. 290 x 330 x 180 mm
dimensions: approx. 290 x 330 x 500 mm
