placeholder OS40-Pro
placeholder OS40-Pro

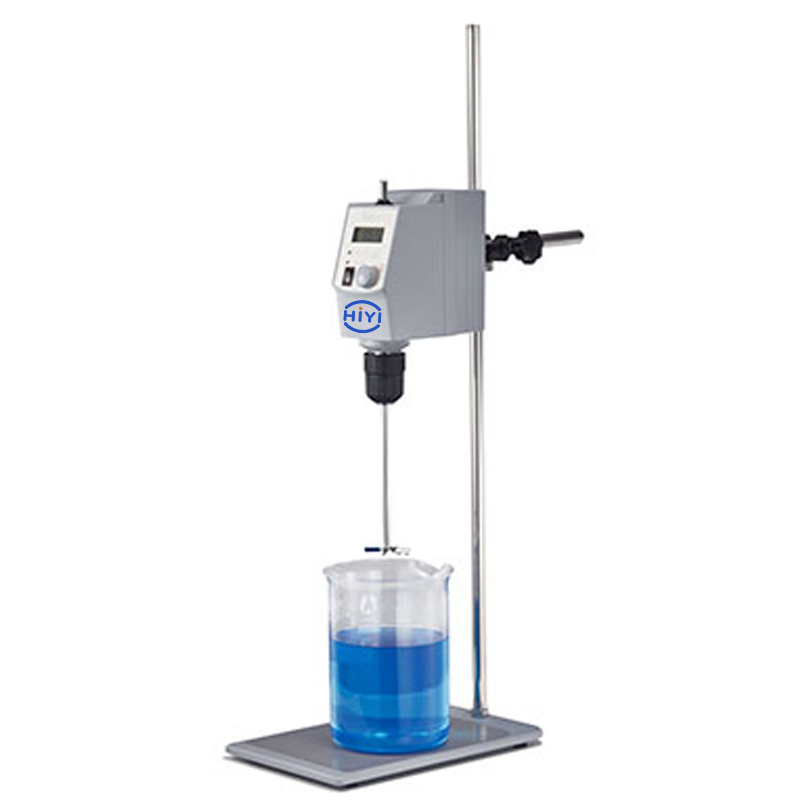

OS70-Pro

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Key Features


  • High reliability and outstanding performance.

  • LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of  ±3rpm.

  • Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.

  • Safety circuits allow for safe stop function in anti-stall or overload conditions.

  • Smooth operation prevents accidental spillage and splashing.

  • Provides constant speed even with changes in viscosities of the samples.

  • Remote function provide PC control and data transmission.

  • Availability of auto-restart function in case of power loss for overnight operations.


SpecificationsOS70-Pro
Max. stirring quantity[H2O]70L
Motor typebrushless DC motor
Motor input power180W
Motor output power160W
Voltage100-240V, 50/60 Hz
Power200W
Speed range50~1100rpm
Speed display accuracy±10rpm
Speed displayLCD
Torque displayLCD
Time settings range0-99h59min
Overload protection displayLED lights
Max. torque300Ncm
Viscosity max.100000mPas
Chuck range diameter0.5-10mm
Dimension[WxHxD]186 x 83 x 220mm
Weight3.2KG
Protection classIP21
Permissible ambient temperature and humidity5~40℃,80%
Data connectorRS232
