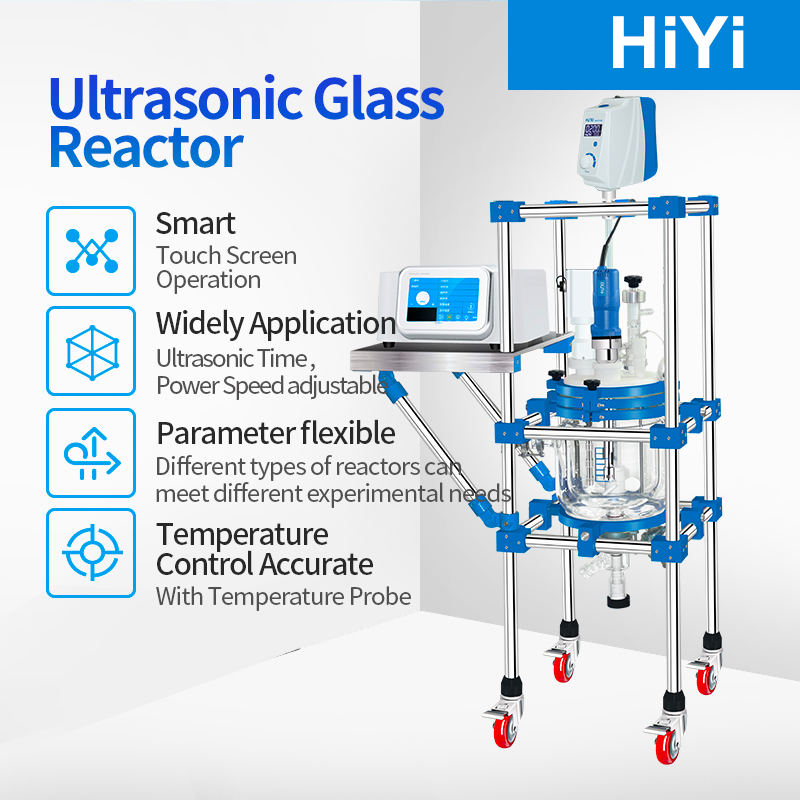

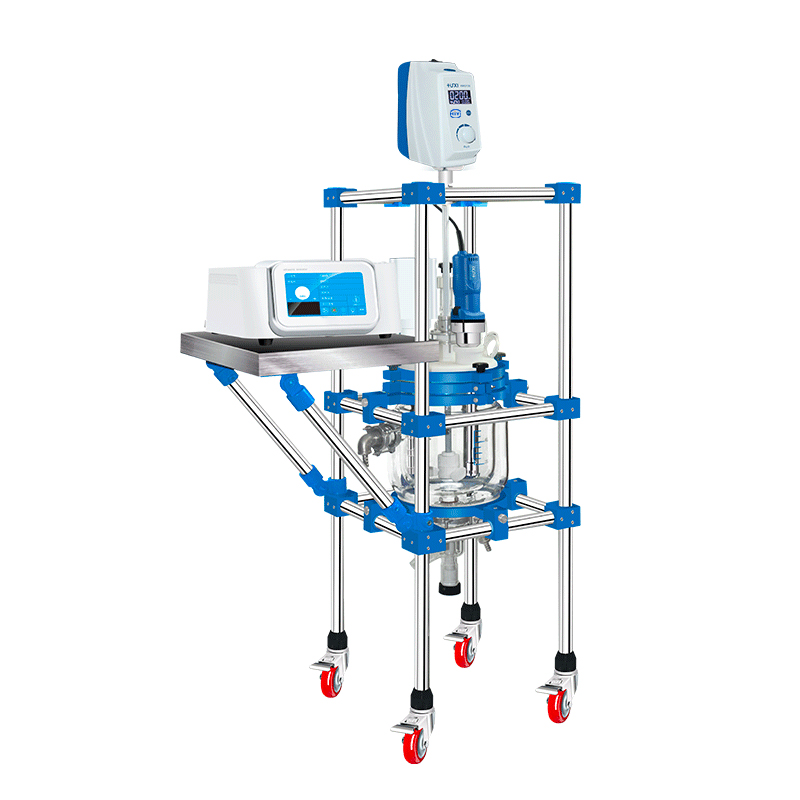

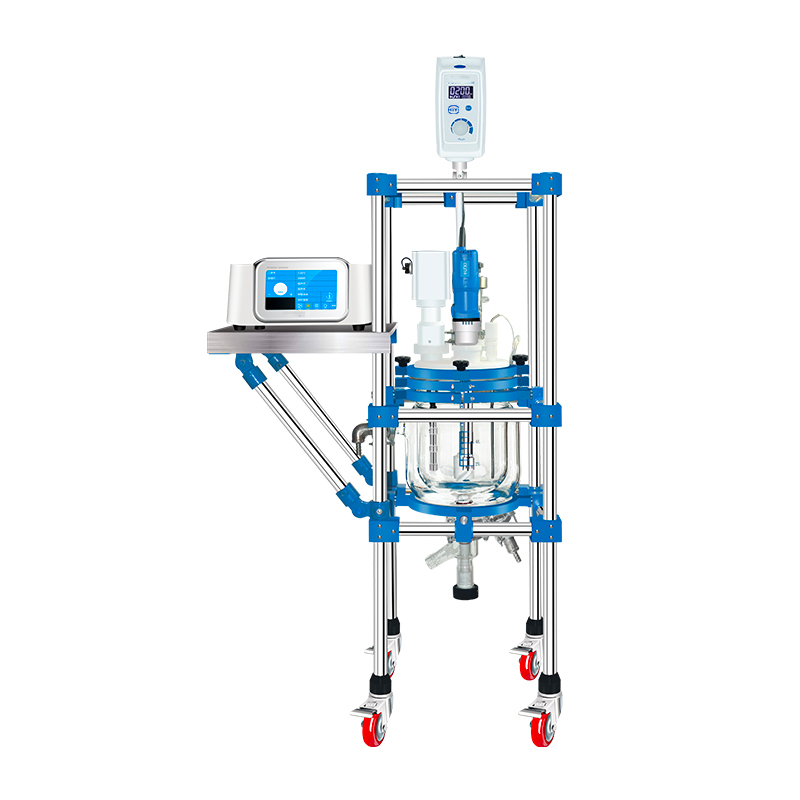

HCF Series Ultrasonic Glass Reactor

HCF- series variable frequency adjustable speed glass reactor is mainly used for the synthesis of materials. By injecting circulating liquid at certain temperature into the jacket kettle of the reactor, materials in the inner layer of the reactor can react at the required temperature.As required, the kettle can be pumped to vacuum to make the material react under negative pressure.By adjusting the valve on the outlet pipe of the constant pressure funnel, the uniform drip of the material can be controlled.The heat exchange function of the condenser can be used for distillation to recover the reaction products.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Features


  1. The glass parts are made of high borosilicate glass with excellent corrosion resistance, high and low temperature resistance and low linear expansion coefficient big thermal shock; Detachable sample valve, easy to discharge the reactor materials

  2. Standardized connection mode, convenient and quick disassembly

  3. The temperature and vacuum testing unit is convenient to accurately grasp the temperature and vacuum degree in the kettle

  4. Under the condition of vacuum pumping, the negative pressure can reach 0.095mpa Overhead imported quality agitator and mixing bearing

  5. All parts touch the liquid are made of high borosilicate glass or PTFE, with excellent corrosion resistance;

  6. 316 stainless steel tray for easy feeding


Model
HCF-5
HCF-10
Capacity
5L
10L
Ultrasonic Power
1800W
2500W
Ultrasonic frequency
20-25KHZ
20-25KHZ
Stirring Speed
30-2200rpm
30-2200rpm
Homogenizer Speed
8000-28000rpm
8000-28000rpm
Brand Name
Huxi
Huxi
Voltage
220V
220V
Reactor Connect holes
5PCS
6pcs
Reactor Cover Diameter(mm)
180
265
Reactor Length(mm)
400
450
Reactor material
high borosilicate glass
high borosilicate glass
Voice prompt + alarm function
Support
Support
Temperature protection function
Support
Support
Overload protection
Support
Support
Transducer air cooling function
Support
Support
Model
HX-CF20
HX-CF50
Capacity(L)
20L
50L
Ultrasonic Power
3500w
4000w
Ultrasonic frequency
20khz
20khz
Stirring Speed
30-2200rpm
30-2200rpm
Homogenizer Speed
8000-28000rpm
8000-28000rpm
Brand Name
HUXI
HUXI
Voltage
220V50HZ
220V50HZ
Reactor Connect holes
6PCS
6PCS
Reactor Cover Diameter(mm)
265
265
Reactor Length(mm)
550
850
Reactor material
high borosilicate glass
high borosilicate glass
Voice prompt + alarm function
Support
Support
Temperature protection function
Support
Support
Overload protection
Support
Support
Transducer air cooling function
Support
Support
