Model | Spectrophotometer YS700D |
Geometry | d/8, SCI+SCE(diffused illumination,8° viewing, Specular Component Included, Specular Component Excluded) |
Repeatability | Chromaticity value: Standard deviation within ΔE*ab ≤ 0.025 Average :dE*ab< 0.025 Max. :dE*ab≤ 0.04 (when a white tile is measured 30 times at 5-seconds interval) Reflectance: Standard deviation < 0.08% |
Inter-instrument agreement | ΔE*ab＜0.25 (BCRA Series Ⅱ, average measurement of 12 tiles) |
Display Resolution | 0.01 |

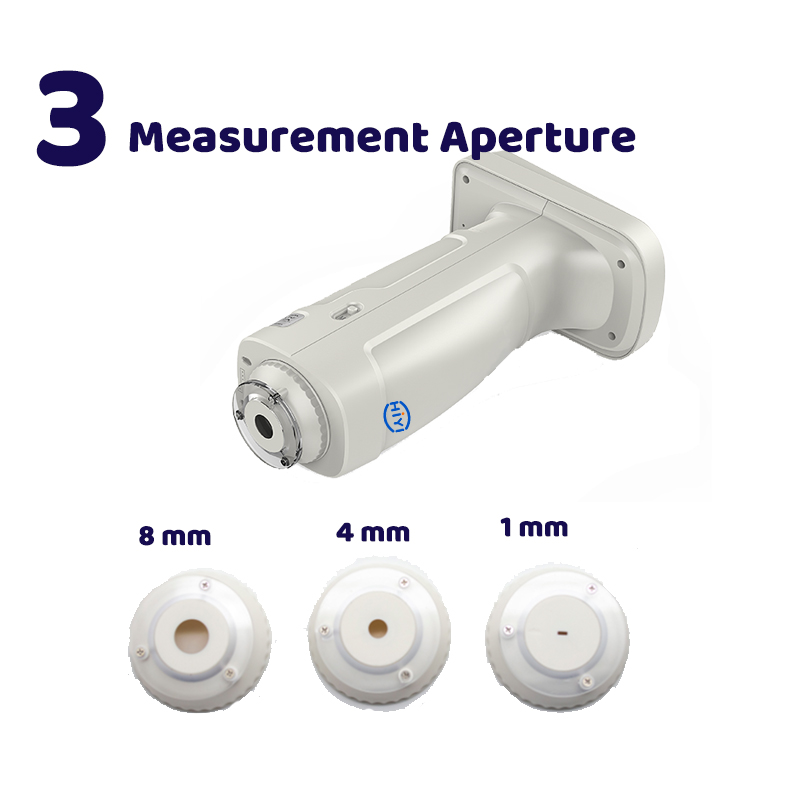

Illumination Area/Aperture | MAV:Φ8mm/Φ11mm SAV:Φ4mm/Φ6mm MINI:1*3mm |
Color Spaces and Indices | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength |
Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2 LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
Light Source | LED(Full wavelength balanced LED) + UV |
Camera to see the measurement area | Yes |
Calibration | Intelligent auto calibration |

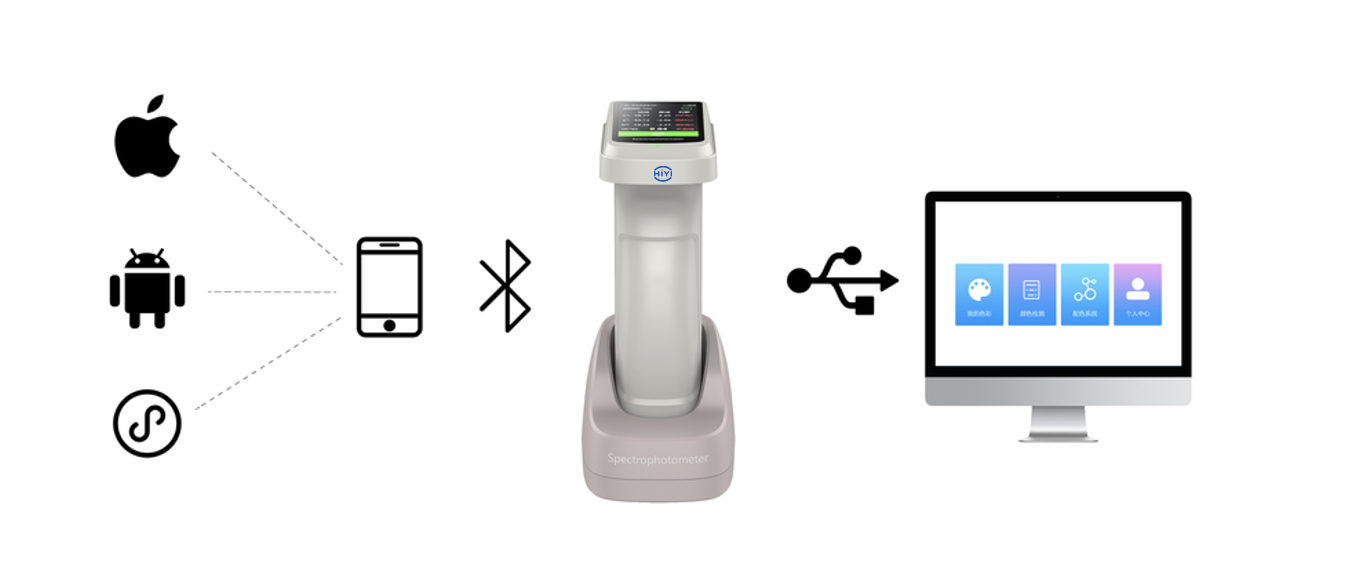

Software | Android, IOS, Windows |
Observer Angles | 2°,10° |
Sphere Size | 40mm |
Standards | Conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
Spectroscopic method | Grating spectroscopy |
Sensor | Dual array sensor |
Wavelength Interval | 10nm |
Wavelength Range | 0-200% |
Reflectance Resolution | 0.01% |
Measurement Time | < 2s |
Interface | USB, Bluetooth |
Screen | IPS Full Color Screen,3.5 inches |
Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
Lamp Lifetime | 10 years, 1 million tests |
Language | Chinese and English |
Storage Memory | APP Mass Storage |
