| Illumination/Viewing System | Reflection: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE (ISO7724/1, CIE No.15, ASTM E1164.ASTM-D1003-07, DIN5033 7eil7,JIS Z8722 Condition C standard) Transmittance d/O(Diffused illumination, 0 degree viewing ) |
| Sensor | Silicon Photodiode Array |
| Grating Method | Concave Grating |
| Sphere Diameter | 152mm |
| Wavelength | 360-780nm |
| Wavelength Pitch | 10nm |
| Half Band Width | 5nm |
| Reflectance Range Resolution | 0-200% 0.01% |
| Light Source | Pulse Xenon Lamp and LED |
| UV Measurement | Include UV, 400nm cut, 420nm cut, 460nm cut |
| Measurement Time | SCI/SCE < 2s SCI+SCE < 4s |
| Measurement Aperture | Reflectance: XLAV 630mm, LAV 18mm.MA/ <D11mm,SAV 06mm Transmittance:<D25mm (Auto aperture size recognition) |
| Transmittance Sample Size | No limit on sample width and height, thickness <50mm |
| Repeatability | XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1% XLAV Chromaticity value: Standard deviation within AE*ab 0.015 * When a white calibration plate is measured 30 x at 5-second intervals after white calibration |
| Inter-Instrument Agreement | XLAV AE*ab0.15 (BCRA Series II, Average measurement of 12 tiles, at 23*C) |
| llluminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4.F5,F6,F7,F8,F9,F10,F11,F12 CWF.U30,DLF,NBF.TL83,TL84 |
| Language | English, Russian, Spanish, Portuguese, Japanese. Thai, Korean, German, French, Polish, Chinese (simple and traditional), |
| Display | Reflectance and Transmittance graph/value. color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency |
| Viewing Angles | 2° and 10° |
| Color Spaces | L*a*b, L*C,h, Hunter Lab, Yxy, XYZ |
| Other Indices | WI(ASTM E313-00.ASTM E313-73.CIE/ISO, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925.ASTM E313-00.ASTM E313-73),Tint(ASTM E313-00).Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density. T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze. Total Transmittance, Opacity. Color Strength |
| Color Difference | AE*ab, AE*CH, AE*uv, AE*cmc, AE*94, AE,00, AE*ab(hunter),555 shade sort |
| Storage Memory | 8 GB U Disk for data storage and transfer |
| Screen Size | 7 Inches Touch Screen |
| Power | 12V/3A |
| Operate Temperature | 5-40,C(40-104F), relative humidity 80% (at 35,C) no condensation |
| Storage Temperature | -20-45*C(-4-113F), relative humidity 80% (at 35°C) no condensation |

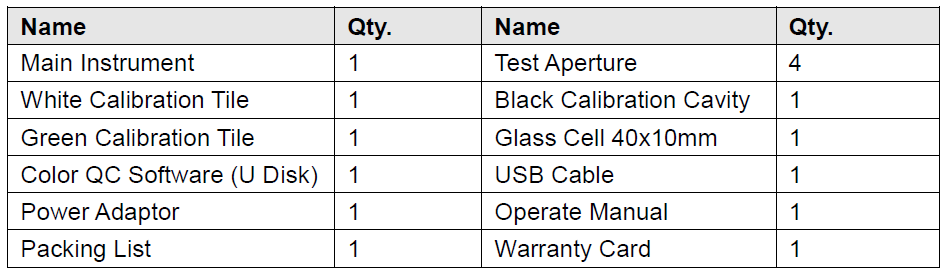

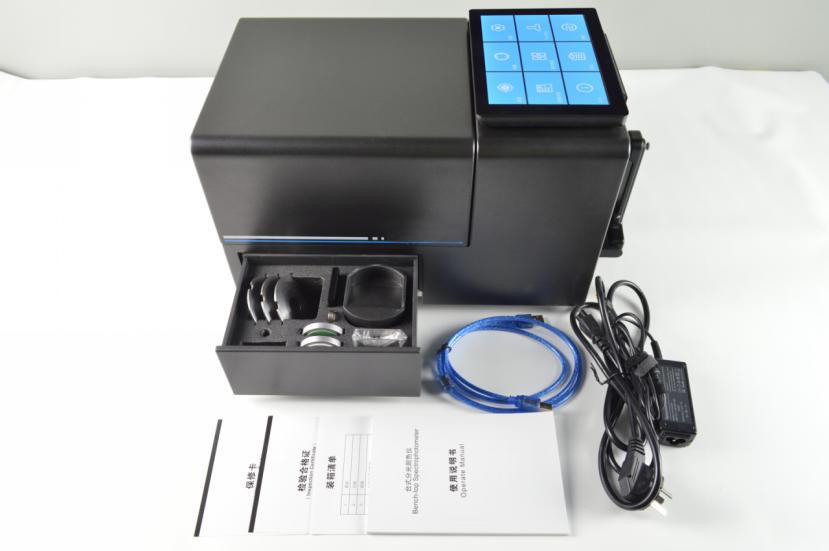

| Accessories | Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile.O% Calibration Tile (transmittance), Reflectance Test Support,30mm,18mm, 11 mm and 6mm apertures, reflectance sample fixture. Glass Cell 40x10mm |
| Optional Accessories | Heating Fixture for Transmittance. Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample. Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture. Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug. American Standard Plug |
| Interface | USB, USB-B and RS-232 |
| Instrument Size | 465x240x260mm |
| Weight | 10.8kgs |

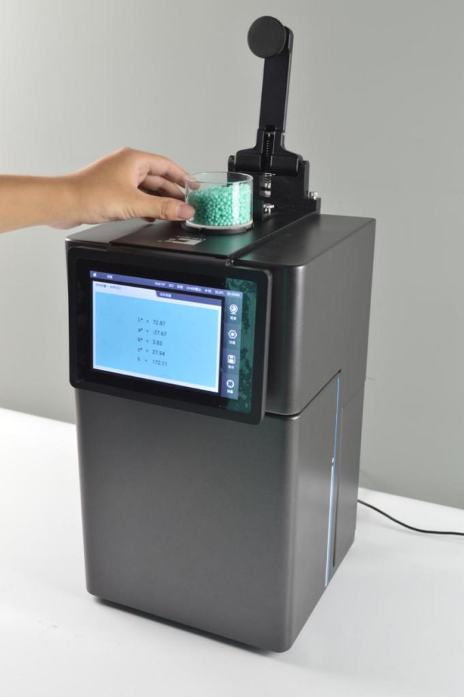

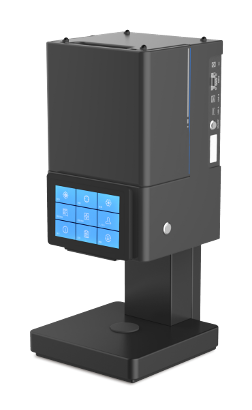

| Other Function | 1. Camera to view measurement area; 2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement); 3. Auto humidity and temperature compensation function. |
