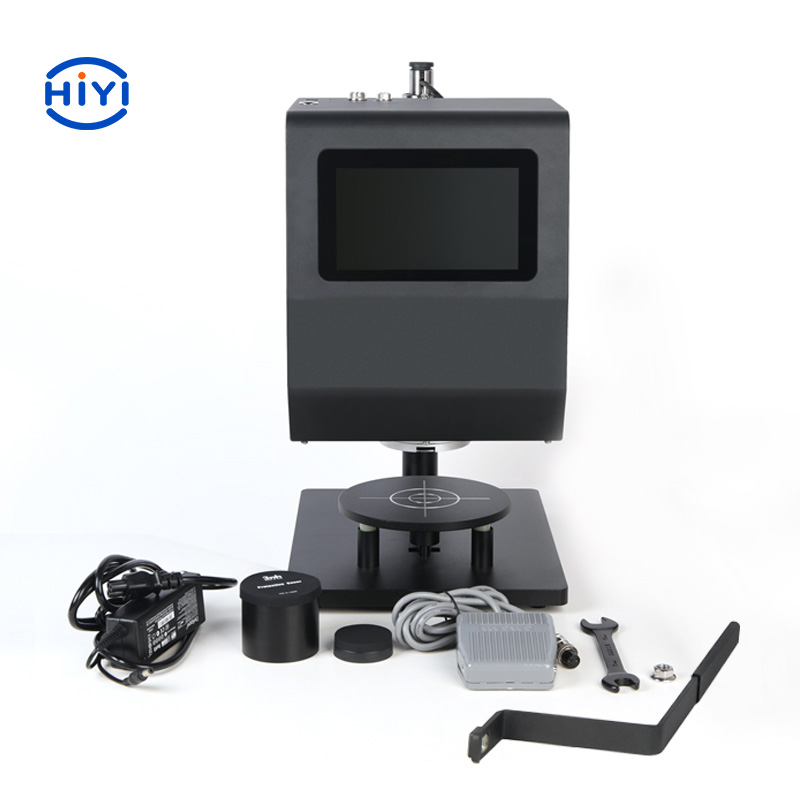

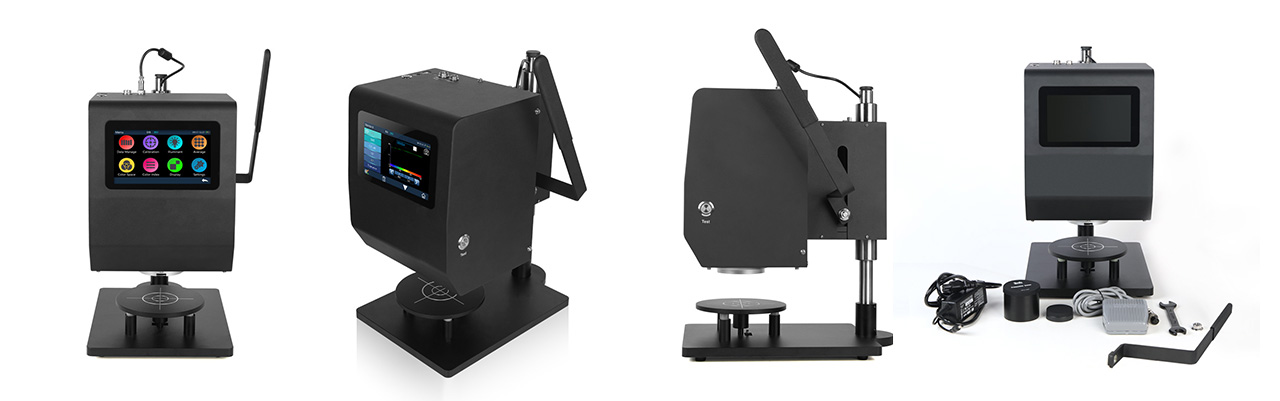

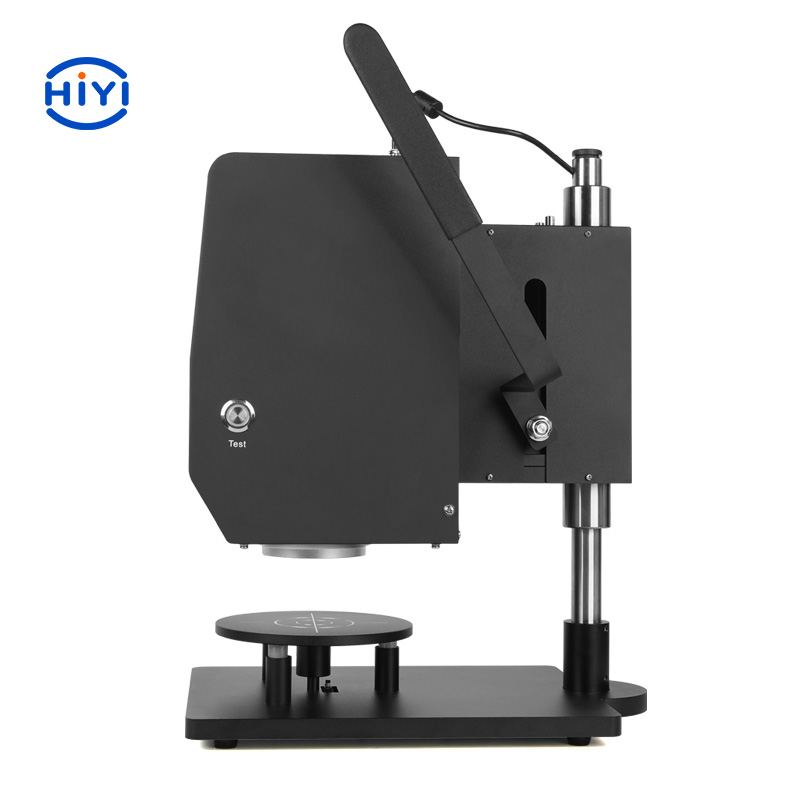

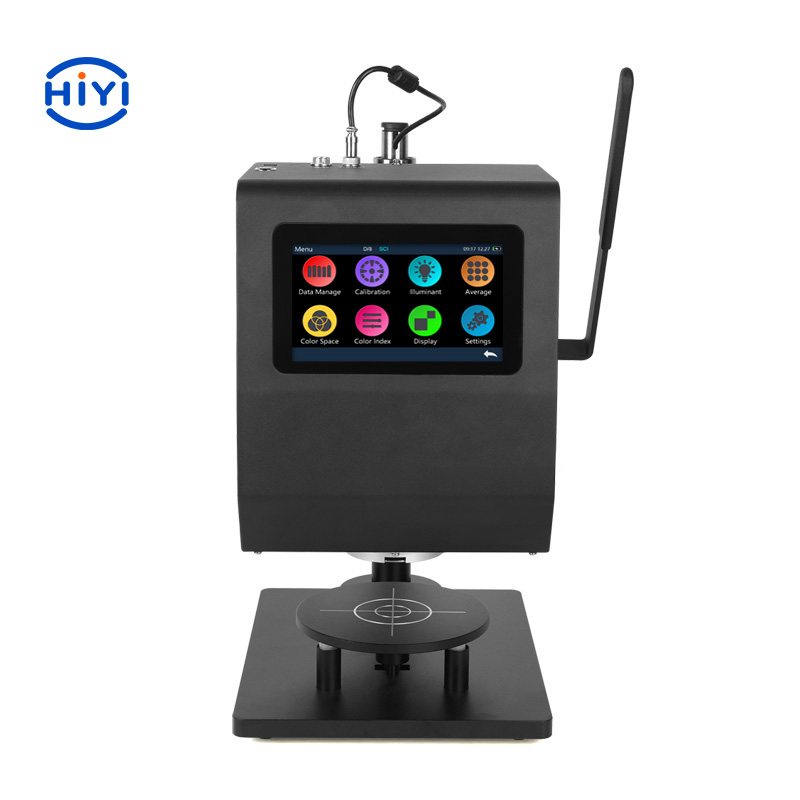

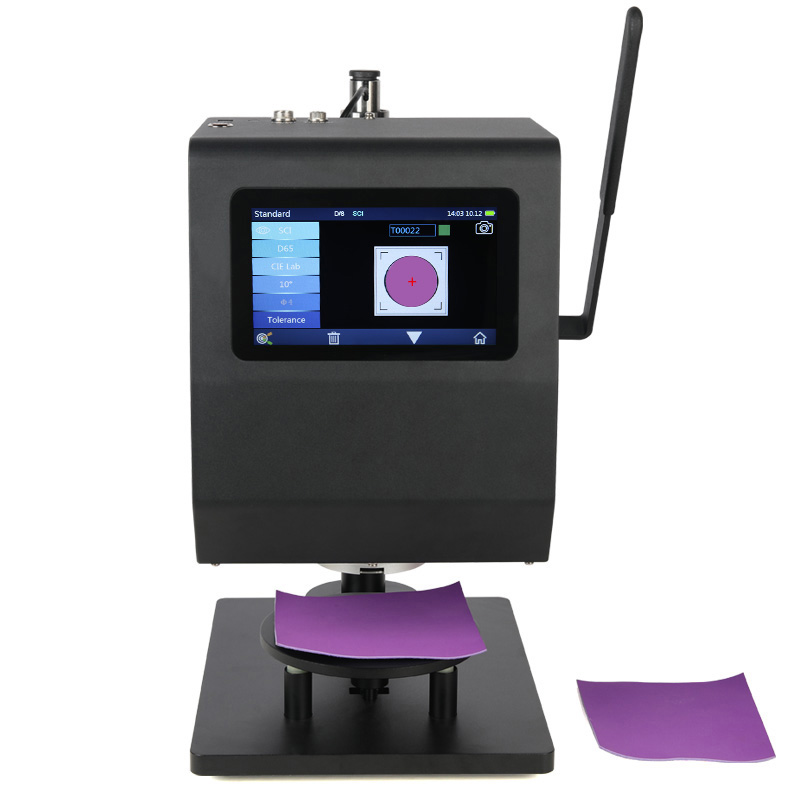

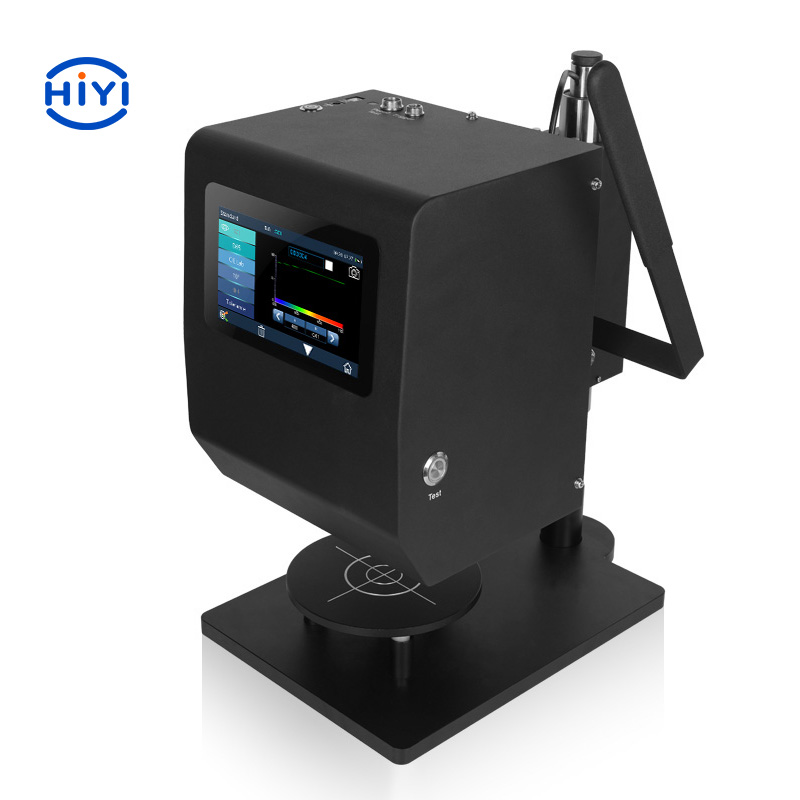

TS8290 Portable Benchtop Spectrophotometer
Features:

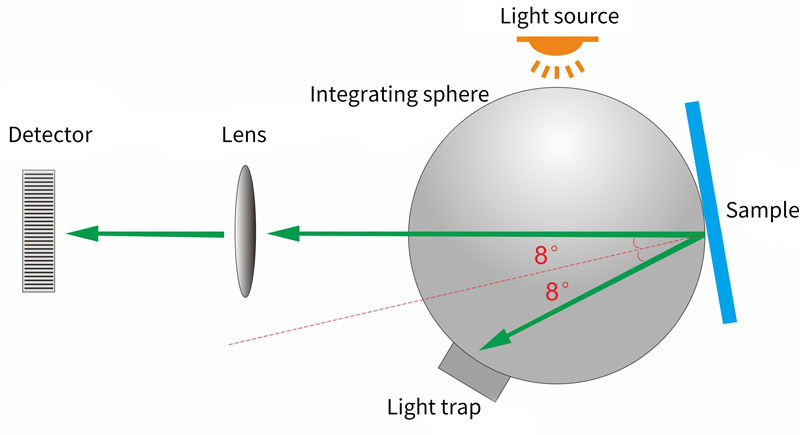

1. It adopts the internationally-used D/8 structure, compatible with SCI/SCE measurement, and supports SCI+SCE rapid measurement at the same time
The TS8290 benchtop spectrophotometer adopts the internationally applicable D/8 illumination observation conditions, SCI/SCE (including specular reflection/not including specular reflection) synthesis technology, and supports SCI+SCE simultaneous rapid measurement, the test time is about 3.2 seconds.
2. Silicon photodiode array (dual 40 array) sensor
Larger area dual 40 array sensor, strong light will not saturate, low light sensitivity higher and wider spectral response range, ensuring the measurement speed, accuracy, stability and consistency of the instrument.

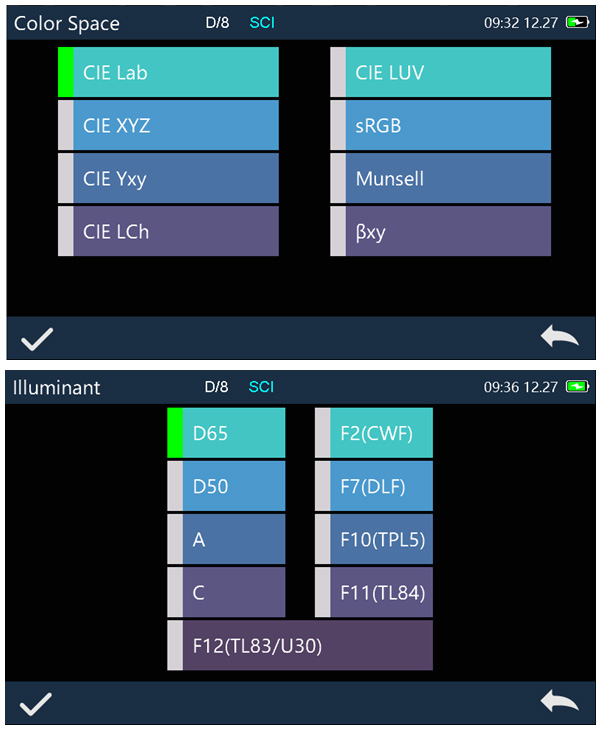

3. Multiple color measurement spaces, multiple observation light sources
TS8290 benchtop spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 color space, as well as D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) multiple observation light sources, which can meet the special measurement requirements under different measurement conditions.

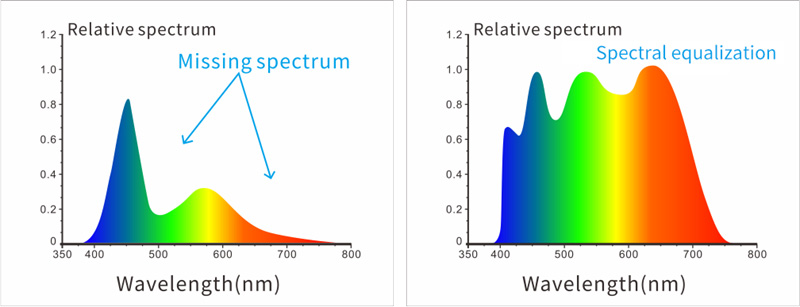

4. Adopt a combined full-spectrum LED light source and UV light source
The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white light LEDs in specific wavelength bands, and ensures the measurement speed of the instrument and the accuracy of the measurement results. Professional UV light sources ensure UV testing more reliable.
5. Metrological verification report
Each TS8290 benchtop spectrophotometer has been verified and tested, and the instrument is verified according to the measurement standards of the authoritative verification department at the factory, and the measurement data is traced to the National Institute of Metrology to ensure the authority of the instrument test data.
6. Camera locating, can clearly observe the measured area
The TS8290 portable benchtop spectrophotometer has a built-in camera for framing and positioning. Through the real-time framing of the camera, it can accurately determine whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

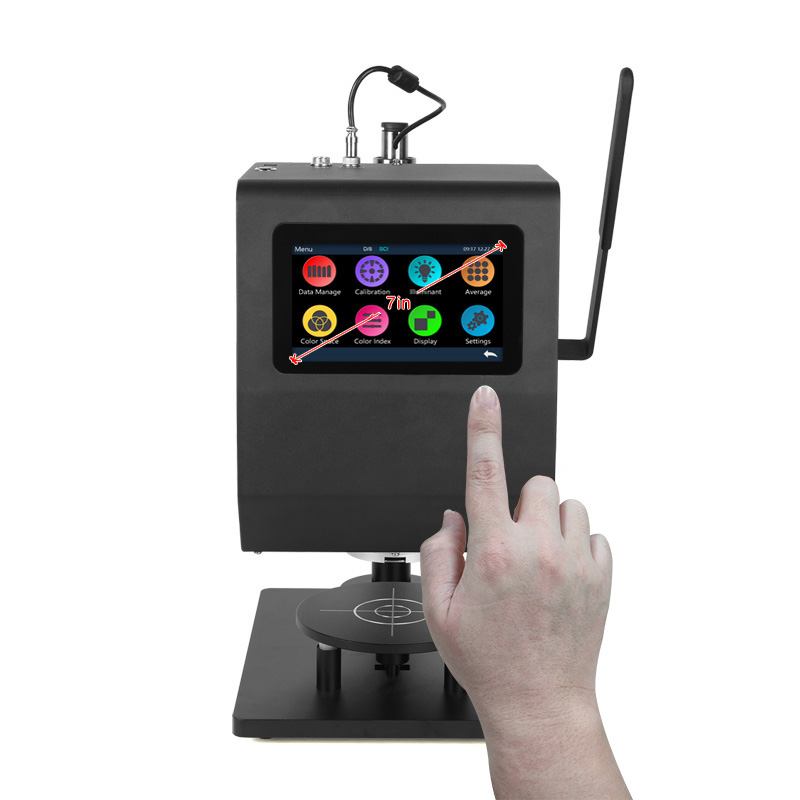

7. Industrial-grade high-definition touch screen, easy-to-use user interface
Using a 7-inch industrial-grade high-definition touch screen, the control is smooth, and the easy-to-use user interface makes the operation comfortable, convenient and easier to use.

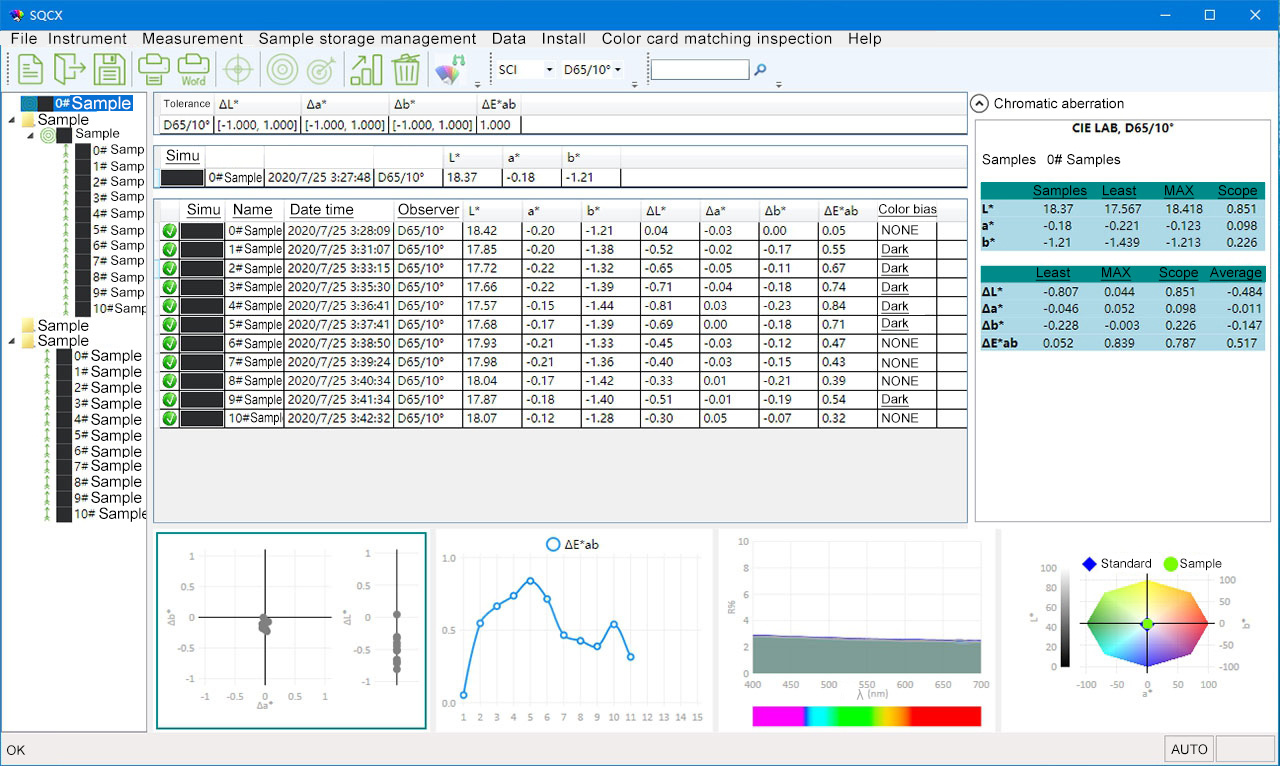

8. Color management software
The SQCX quality management software matched with the TS8290 benchtop spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize customer color management.
Application:
The TS8290 portable benchtop spectrophotometer is equipped with a Φ30mm measuring aperture, which is suitable for measuring large-area samples, meeting the requirements of accurate color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; it can be used for fluorescent sample measurement
