Key Features
• Excellent mixing result
• Stable and wide range of speed adjustment
• Precise temperature control for heating and cooling
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation

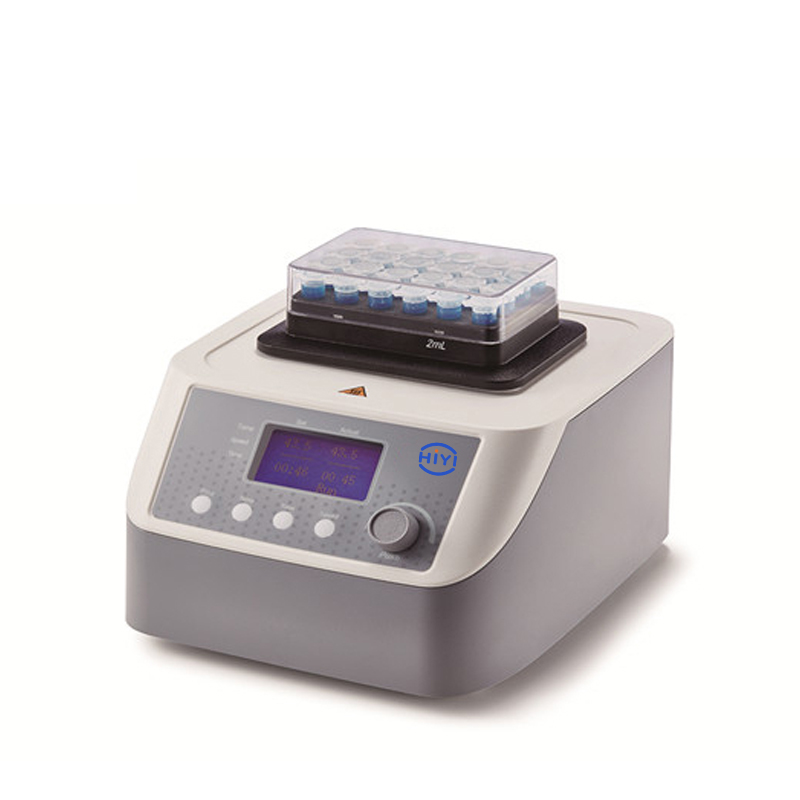

| Specifications | HCM100-Pro |
| Functions | Heating, cooling & mixing |
| Temperature range | Heating: room temp. - 100°C Cooling: room temp. - below room temp. 15°C |
| Temperature setting range | 0.1-100℃ |
| Temperature control accuracy | ± 0.5°C |
| Temperature uniformity | Max.± 0.5°C |
| Max. heating rate | 5.5°C/min |
| Max. cooling rate | 5°C /min(100°C-room temp.)
0.5°C/min(below room temp.) |
| Mixing frequency | 200-1500rpm |
| Mixing orbit | 3mm |
| Screen | TFT |
| Overheating protection | 150°C |
| Adapter block material | aluminum |
| Voltage, Frequency | DC12V,100–240V,50/60Hz |
| Power | 200W |
Dimension [D×W×H]
( without the heating block ) | 200×235×120mm |
| Weight | 7.3kg |
