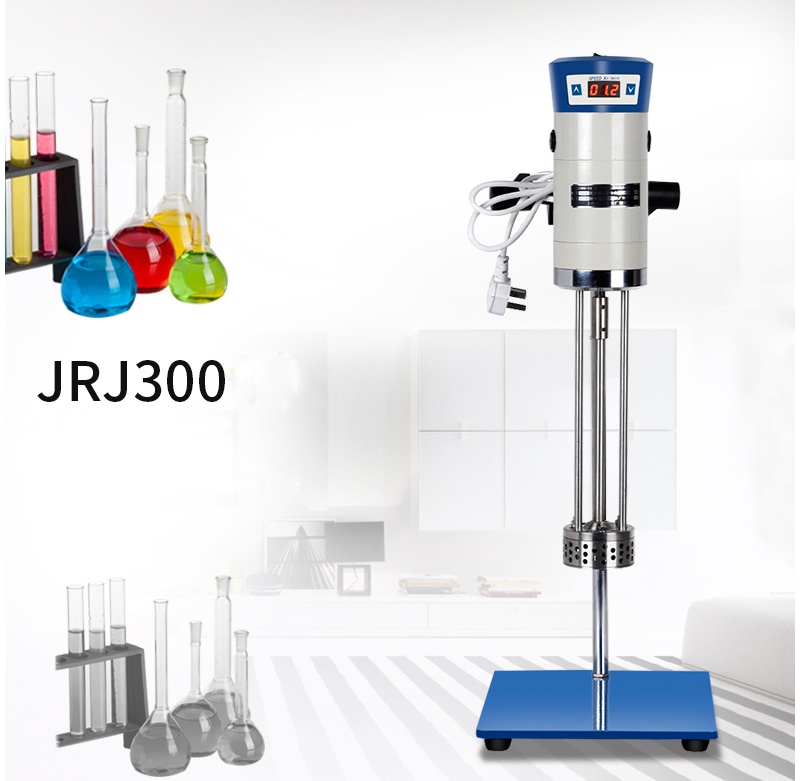

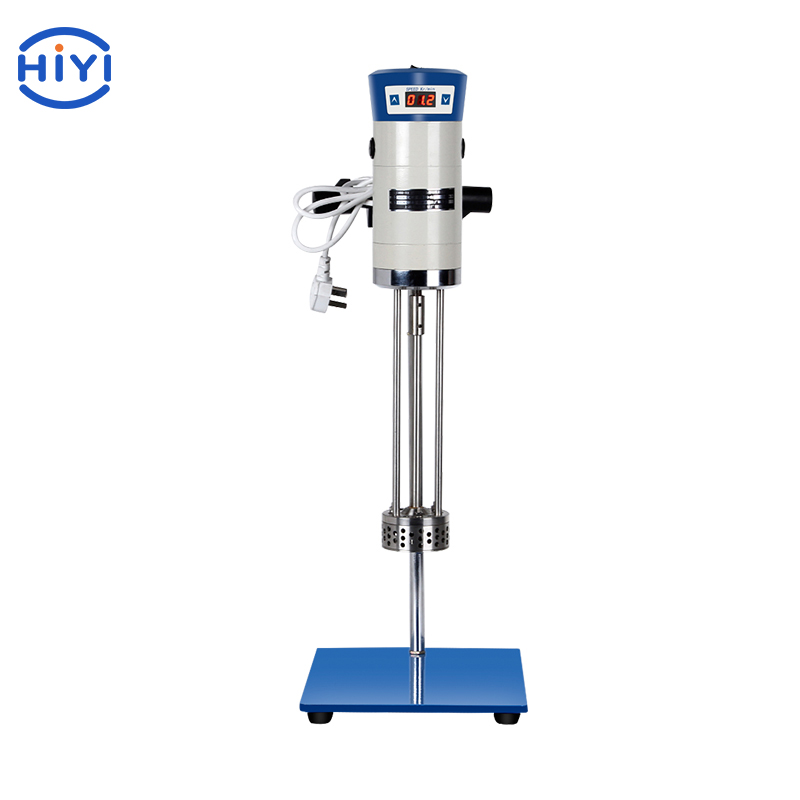

Digital Display High Shear Lab Emulsifier Homogenizer Mixer
1. The operation state controller adopts stepless speed regulator, and the digital display type adopts touch structure, which is convenient for speed regulation and correct data.
2. The driving motor is a series micro motor with high output power and compact structure.

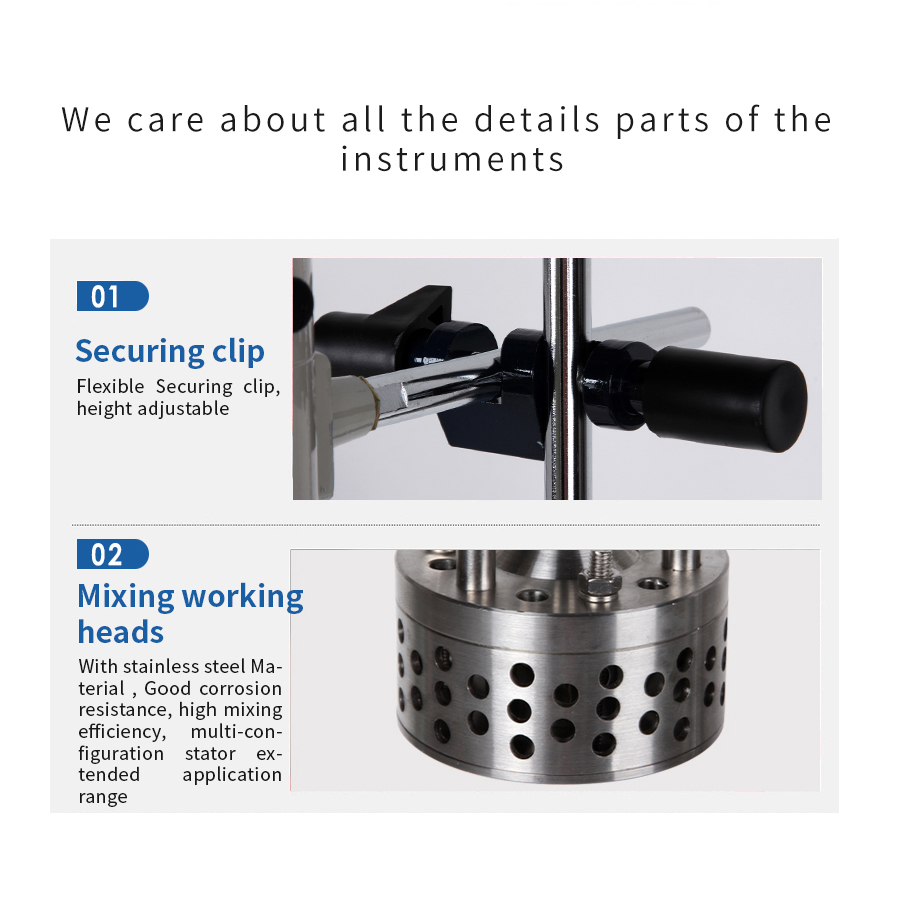

3. The shear emulsion mixing head is made of high-quality stainless steel, which has good corrosion resistance and is easy to be disassembled and replaced with stator.4. The shear emulsified mixing head is connected with the driving motor by the coupling joint, and the operation is stable at high speed.
| Model | JRJ300-SH |
| Input power | 500w |
| Output power | 300w |
| Power supply | 220V, 50HZ |
| Working speed | 200-11000rpm |
| Base size | 310*215mm |
| Working capacity | 40L |
| Maximum viscosity | 5000cps |
| Working head diameter | 70mm |
| Working head material | SUS304 or SUS316 |
| Stator size | Stator specification: 5mm2, 20mm2, 50mm2 |
| Main machine dimension | 310×215×480 mm |
| Net weight | 15kg |
