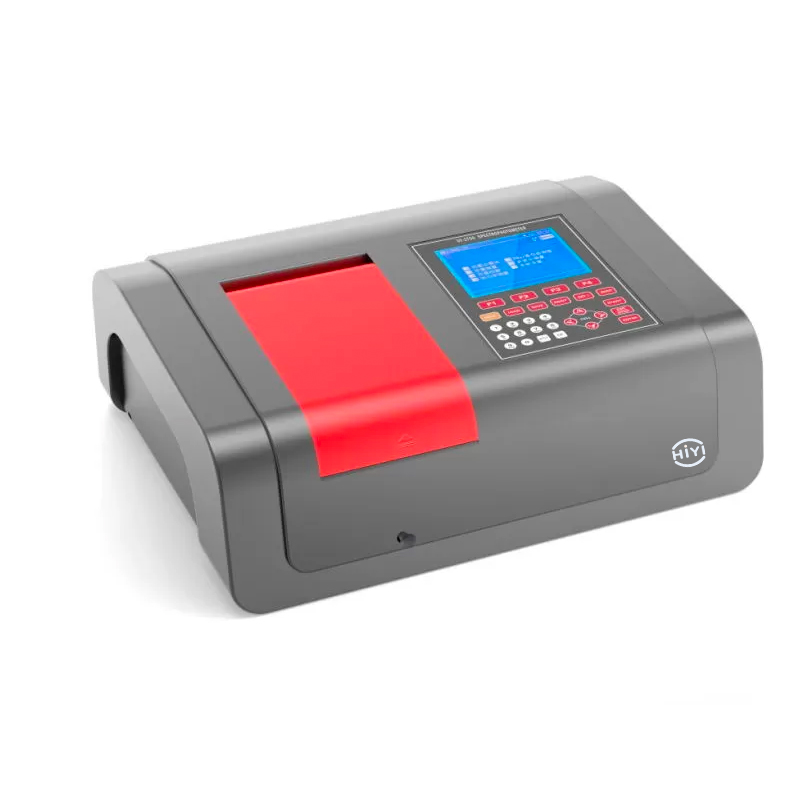

UV-1800 dual wavelength UV-Vis spectrophotometer, the successful implementation of the stringent requirements of high precision and high reliability of the measurement can meet the requirements of various applications, it can be used in biological research, biotechnology industry, pharmaceutical analysis, pharmaceutical, teaching and research, environmental protection , food hygiene, clinical testing, health and epidemic prevention and other fields to meet the requirements of various applications.

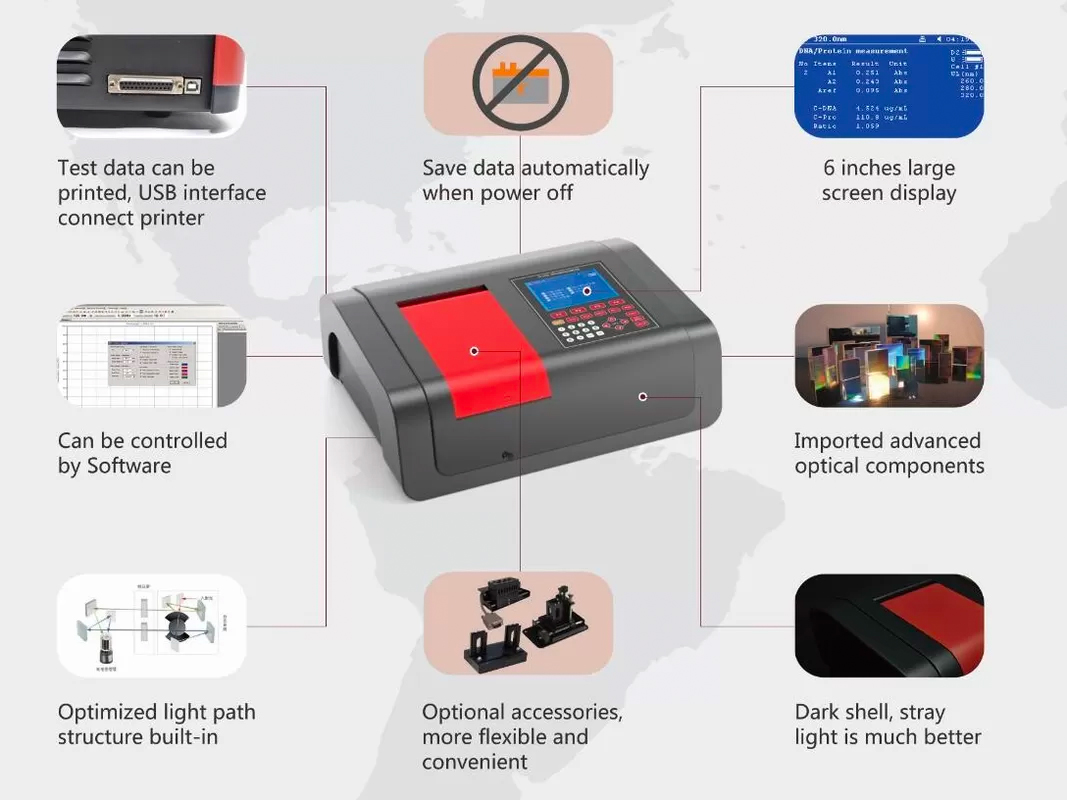

Features
Improved optimization of optical design, import source and receiver creating a system of high performance and high reliability.
Automatic design, to achieve the most simple means of measurement.
LSI design greatly improves the scalability and reliability of the system.
Measurement data can be output through the printer with USB interface.
1.8nm spectral bandwidth can be customized according to user requirements to install to meet the stringent requirements of pharmacopoeia.
Rich measurement methods, with a wavelength scan, time scan, multi-wavelength determination, multi-order derivative determination (optional), dual-wavelength, three wavelength (optional) DNA protein measurement (option) and other measuring methods, can meet different measurements requirements, and can be displayed directly on a 6-inch screen.
It could be powered down to save the measurement parameters and data, user-friendly.
UV-1800 series dual-beam optical system, successfully achieved the perfect combination of high precision and high reliability of the measurement can meet the requirements of various applications, can be used in biological research, biotechnology industry, pharmaceutical analysis, pharmaceutical, teaching and research, environmental protection , food hygiene, clinical testing, health and epidemic prevention and other areas.
Realize spectral scanning by PC software control, more precise and flexible measurement requirements.
Wide wavelength range, which can meet various areas of the wavelength range of requirements.
Based on user requirements optional hole rack, manual four with rack, manual Eighth rack, automatic Eighth frame, glass frame, test tube rack, 1cm colorimetric frame, 5cm colorimetric frame, 10cm colorimetric racks.
Optical System | Double beam |
Wavelength Range | 190~1100nm |
Band Width | 1.8nm (0.5nm, 1nm, 4nm, 5nm optional or 0.5 , 1, 2, 4nm adjustable) |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | ≤0.1nm |
Photometric Accuracy | ±0.3% τ(0-100%τ) ±0.002A(0~0.5A) ±0.003A(0.5A~1A) |
Photometric Repeatability | 0.15% τ(0-100%τ) ±0.001A(0~0.5A) ±0.0015A(0.5A~1A) |
Stray Light | ≤0.03% τ (220nm NaI,340nm NaNO2) |
Stability | 0.0005A/h@500nm |
Noise | ± 0.0002A @500nm |
Baseline Flatness | ± 0.001A |
Photometric Mode | T,A,C,E |
Wavelength Setting | Automatic |
Photometric Display Range | -4~4A |
Display Mode | 6 inches high brightness blue LCD |
Detector | Import Silicon Photodiode |
Light Source | Import Deuterium Lamp & Tungsten Halogen Lamp |
Power Requirement | AC 220V/50Hz 110V/60Hz |
Power | 120W |
Dimensions(W*D*H) | 560×450×230mm |
Weight | 28Kg |
