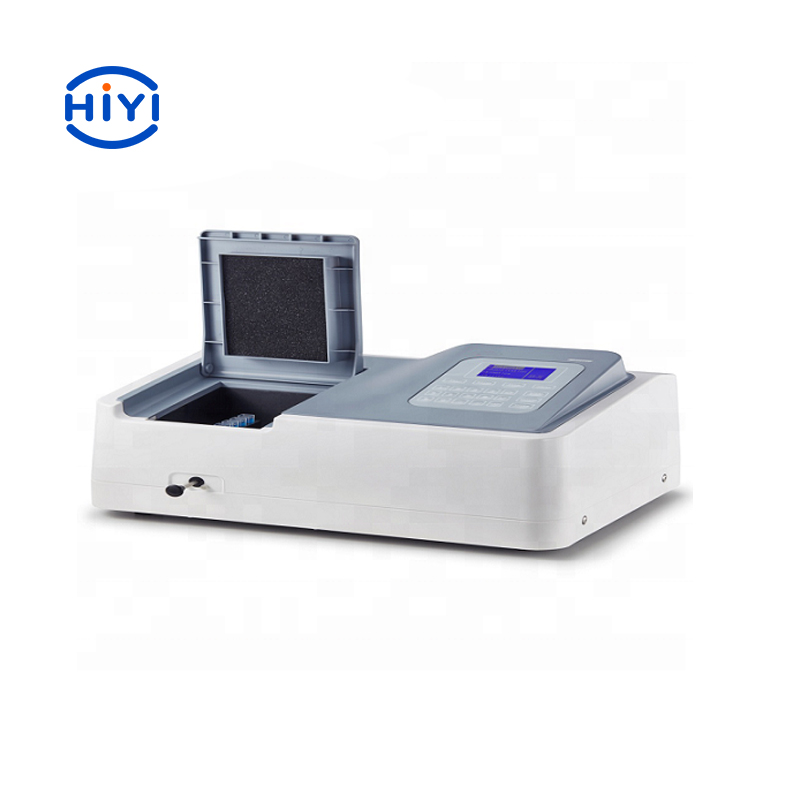

SP-UV1100 Spectrophotometer

The spectrophotometer is an indispensable instrument routinely used in colleges, universities and research institutes for quantitative analysis in fields including biotechnology and quality control of new material developed. V-Series provide high resolution, high performance and excellent stability.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

SP-UV1100 Spectrophotometer



Features:

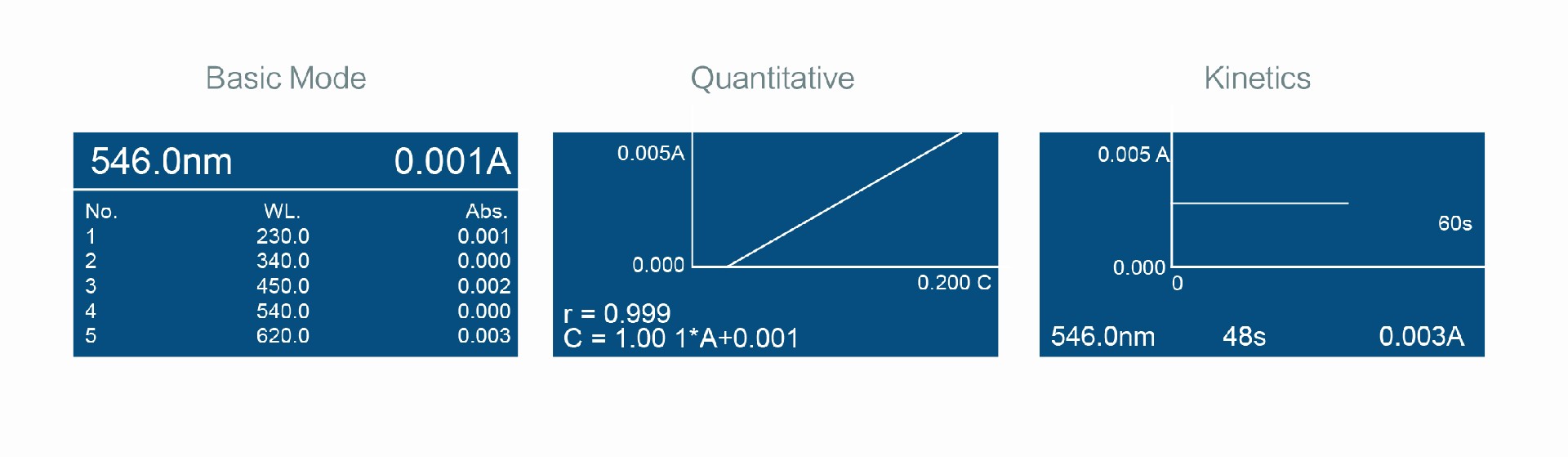

• User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
• On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
• Data can be restored after a sudden power failure.
• Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
• Automatic Switching: Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm.
• PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)

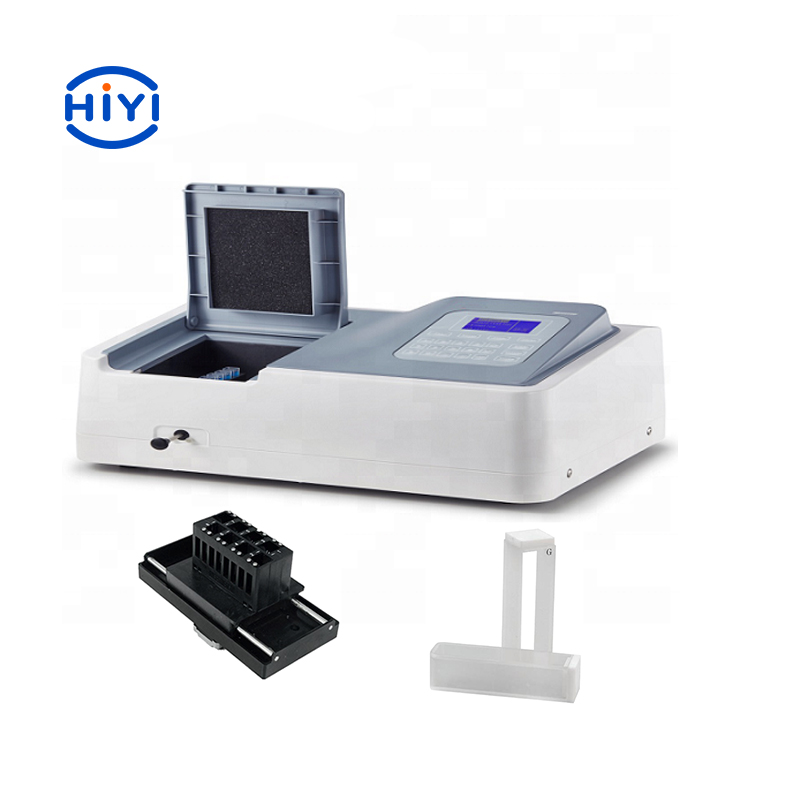

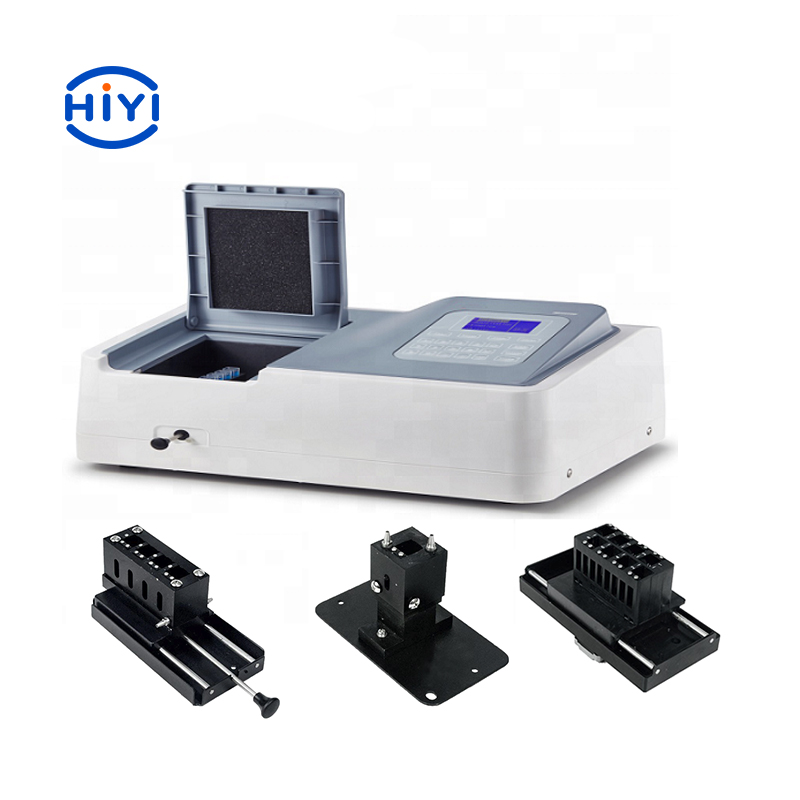

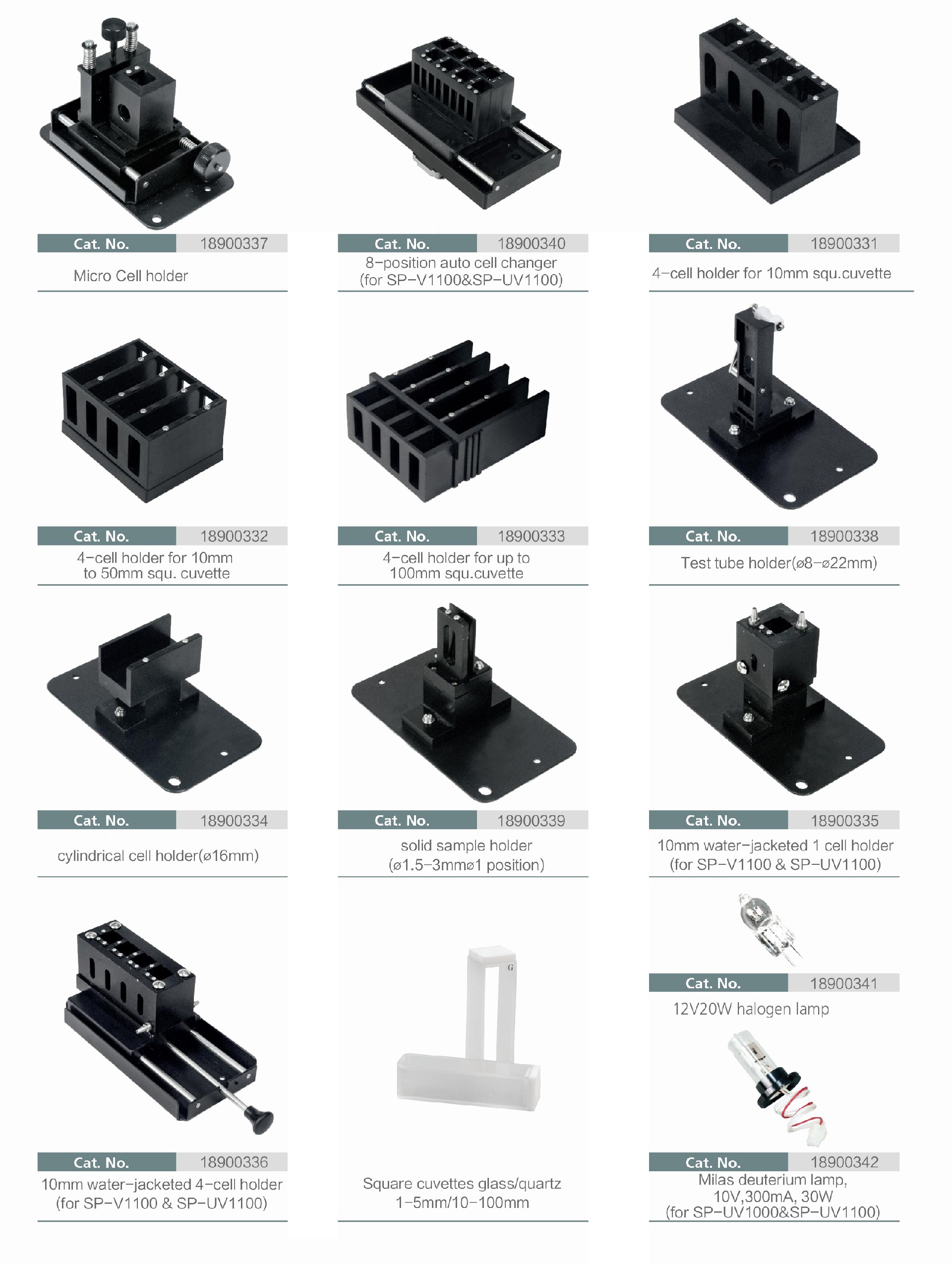

• Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories
are available.


Application:

Our Spectrophotometer range is highly recommended for live display of ABS & %T, Quantitative analysis (Beer's Law), Reaction monitoring, Colorimetric analysis, Kinetic experiments, Protein and DNA assays, DNA & RNA quantification, Protein quantification and many more application in Advanced teaching labs; Industrial, Pharmaceutical, Life Science & Biotechnology research QA/QC labs.


Specifications
SP-UV1100
Optical Systen
Single Beam
Light Source
Tungsten lamp&Deuterium lamp
Spectral Bandwidth
2.0nm
Wavelength Range
190-1100nm
Wavelength Accuracy
±0.5nm
Wavelength Repeatability
≤0.3nm
Photometric Range
-0.3-3.0A, 0-200%T
Photometric Accuracy
±0.002A@0.5A,
±0.004A@1.0A,
±0.3%T@100%T

Photometric Repeatability
≤0.001A@0.5A,
≤0.002A@1.0A,
≤0.15%T@100%T
Stability
≤0.002A/h @500nm
(after preheat 2 hours)
Stray Light
≤0.05%T@220&360nm
Sample Compartment
4-position,10mm
pathlength cuvette
Display
LCD
Output
USB Port&Parallel Port (Printer)
Power
110/220VAC,50/60Hz,120W
Dimension (L×W×H)
490×360×210mm
Weight
14kg
