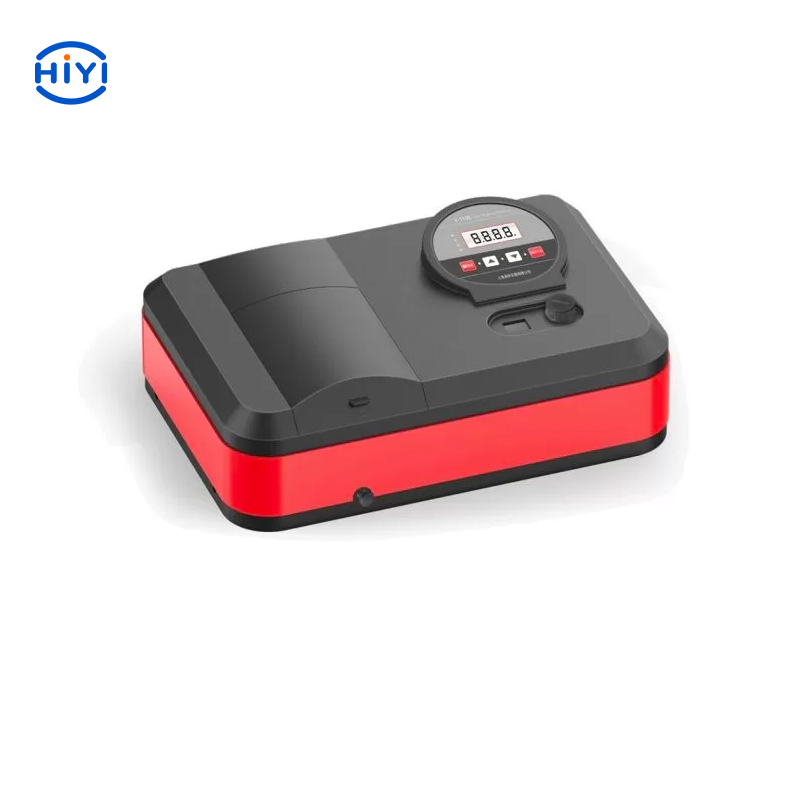

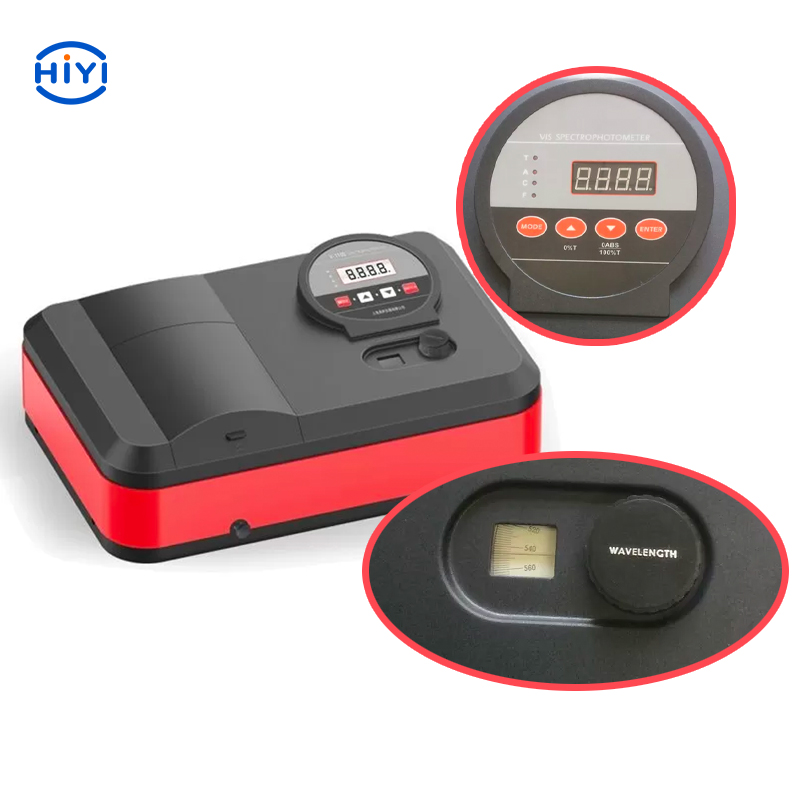

V-1100 Visible Spectrophotometer

●Single-chip microcomputer control, digital display

●Auto zero,100% adjustment function

●Can be directly enter F factor and establish a standard curve for concentration direct-reading

●Can be directly input standard sample and the corresponding standard concentration value for concentration measurement

●Equipped with general parallel printer interface, measurement data can be printed.

●With USB interface

●Can achieve more accurate and flexible measurement requirements via PC control (optional)

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Features

  1. Single-chip microcomputer control, LCD Screen (128*64 Dots)

  2. Large LCD display can display multiple sets of data

  3. Auto zero,100% adjustment function

  4. Wavelength automatic adjustment

  5. Wrap lights, automatic filter change, large sample pool (5mm ~ 100mm)

  6. Standard samples having a maximum ten-point standard curve measurement functions built

  7. Direct input by K, B factor for quantitative measurement standard curve

  8. Can be directly input and the corresponding standard concentration values establish a standard curve for quantitative measurement Adjustable electric saving standard curve parameter measuring set, can save a plurality of standard curve

  9. General Parallel printer interface with or slightly beat interfaces can print the title bar, the measurement data, curve parameters, the standard curve and the curve sample points

  10. With USB interface

  11. Can achieve more accurate and flexible measurement requirements (optional) via PC control



Wavelength Range
325~1000nm
Band Width
4nm
Wavelength Accuracy
±2.0nm
Wavelength Repeatability
1nm
Photometric Accuracy
±0.5% τ
Photometric Repeatability
0.2% τ
Stray Light
≤0.05% τ (340nm NaNO2)
Stability
0.001A/30min@500nm
Photometric Mode
T,A,C,E
Wavelength Setting
Manual
Photometric Display Range
-0.3~3A
Display Mode
4 LED display
Detector
Import Silicon Photodiode
Light Source
Import Tungsten Lamp
Power Requirement
AC 220V/50Hz 110V/60Hz
Power
120W
Dimensions(W*D*H)
360×280×190mm
Weight
9Kg
