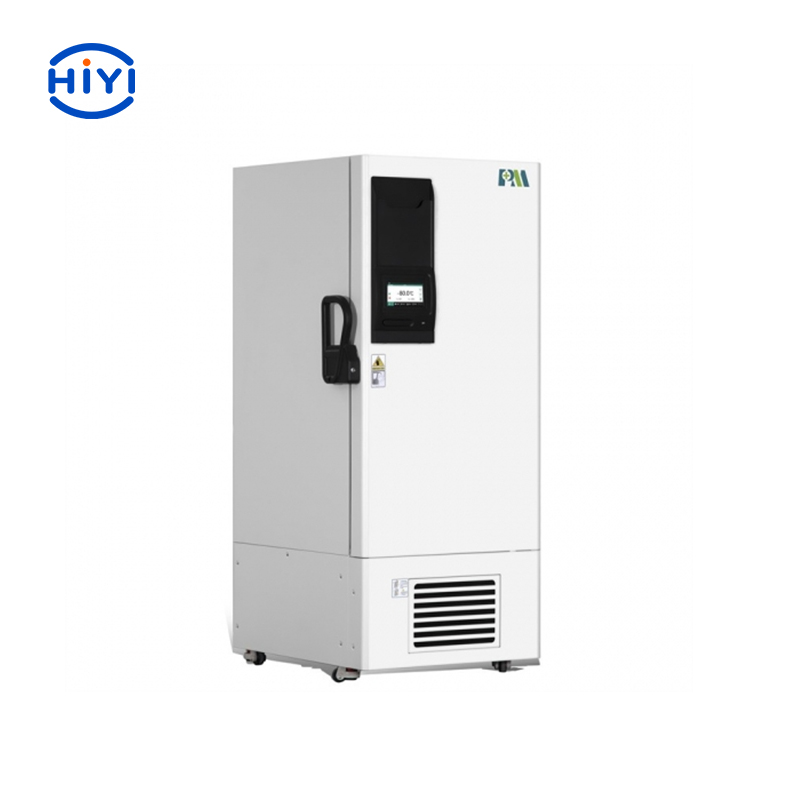

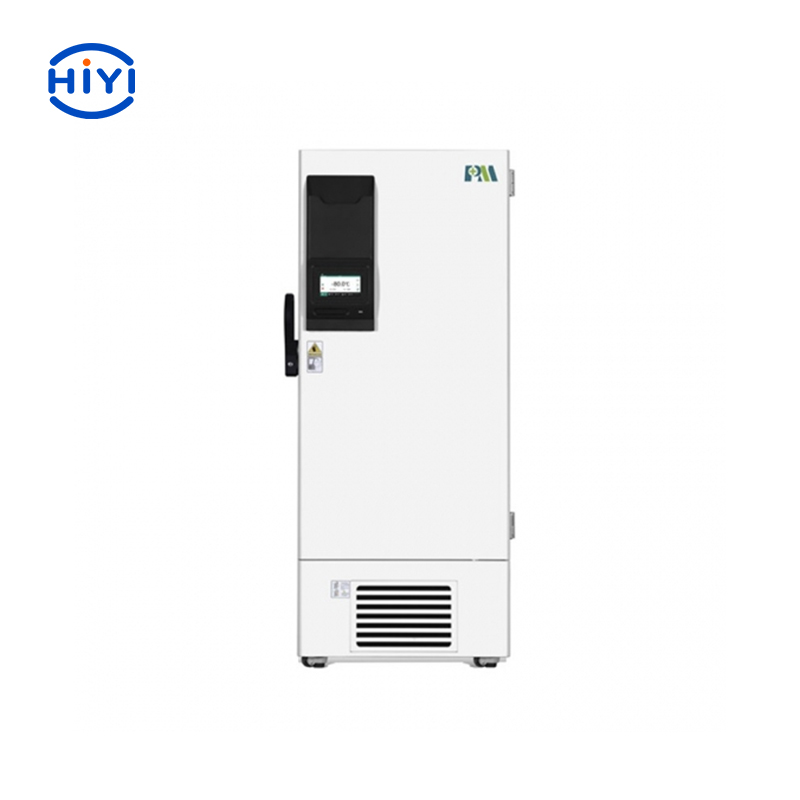

MDF-86V340E 340L Hospital Biomedical Freezer Cabinet

-86℃ E series ULT Freezer is specially designed and manufactured for long term storage of various biological products, with a new look , better ergonomics, a 7-inch touchscreen controller.The new generation products have made a great upgrade, the classic black and white color collection, in line with the aesthetics of more people. Thew NEW generation of E series ultra-low temperature freezers is out big release in the year of 2022. It has very competitive advantages in the global market.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Hospital Biomedical Freezer Cabinet

MDF-86V340E 340L




Features:

Advanced thermal insulation
The insulation are designed with the latest generation of VIP technology to achieve thermal conductivity of 0.005 W(m.K). That makes ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of energy saving as well as space- saving.

Super-cooling technology
The powerful cooling system drives the unique mixed refrigeration system for fast cooling down. This system is stable, energy saving and easy maintenance.

New Classic Appearance
The classic black and white color collection, in line with the aesthetics of more people.

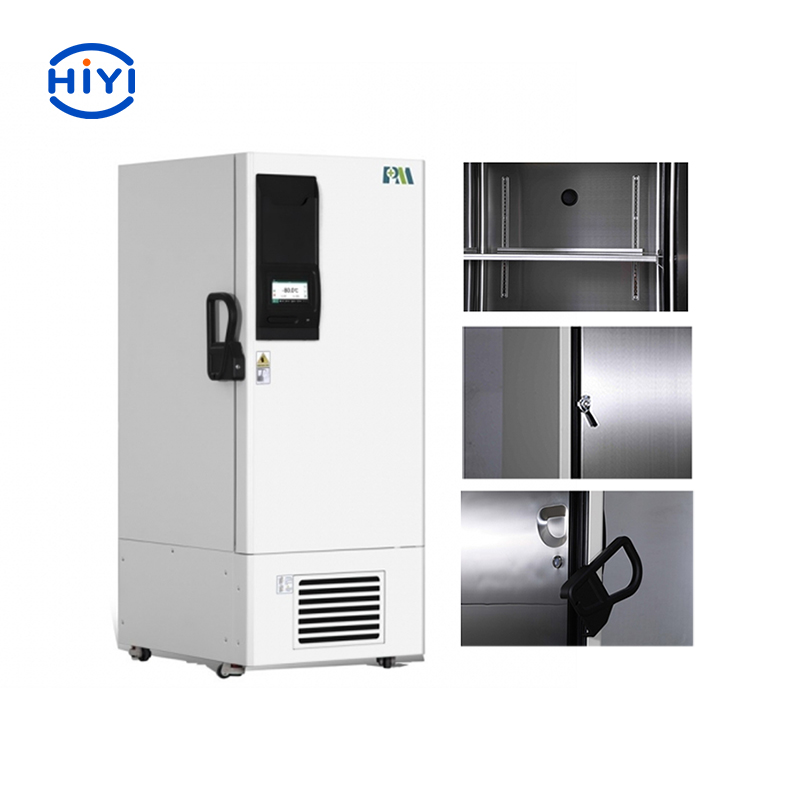

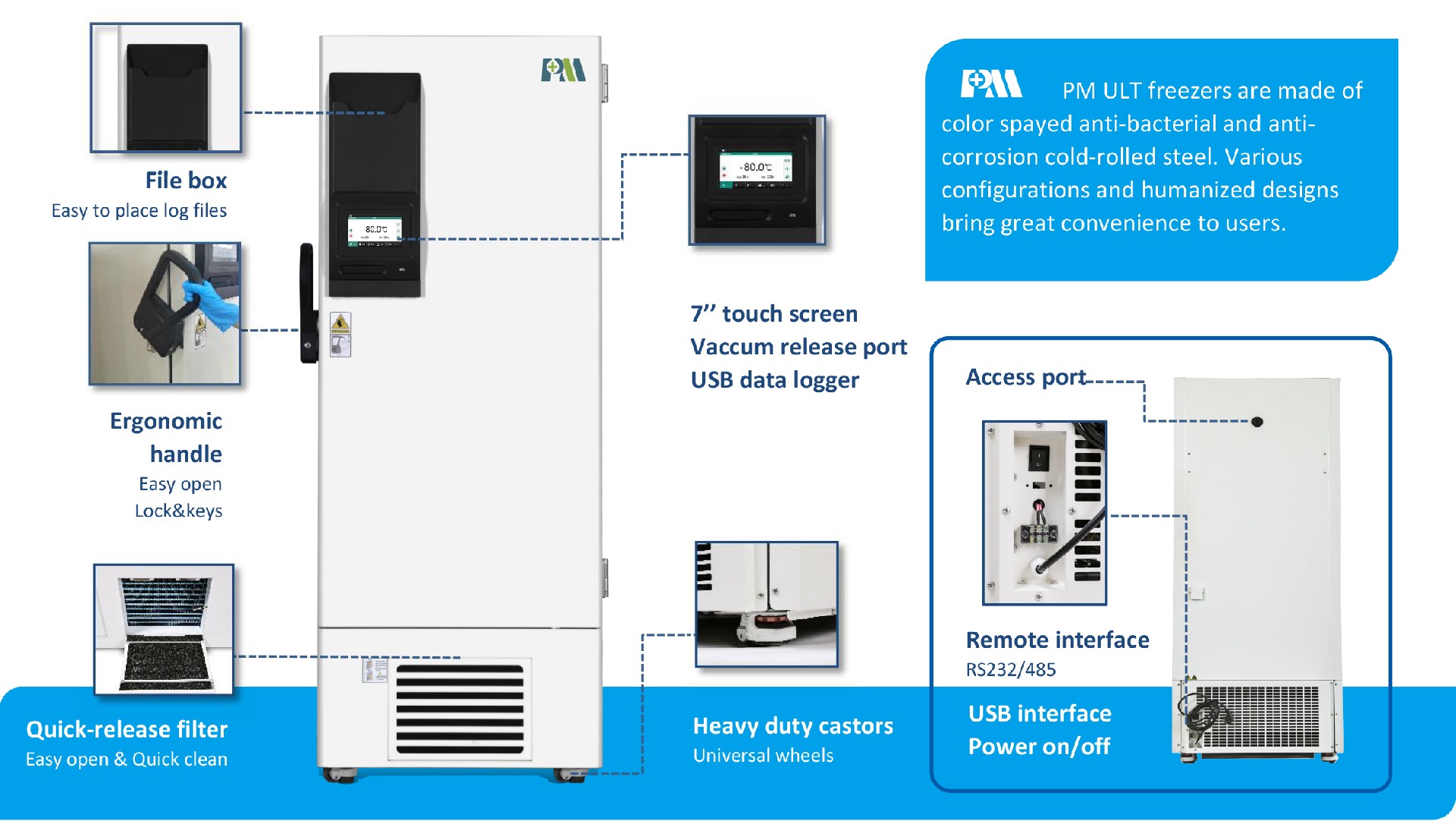

Easily Operated Door Handle
The door handle could be easily operated with one hand, and automatic pressure release port can allow the door to open and close frequently in daily use. File box is design for keeping daily record files.

7-Inch LCD Touch Screen
A 7-inch LCD touch screen with android operating system is designed for this refrigerator, to enable users to operate conveniently and quickly.Eye level touch screen integrates temperature display, history graphs, alarms and event logging.


Better Performance
Advanced automatic cascade refrigeration system has better cooling efficiency and energy saving. The cooling speed increased by 10%, Also, the improved insulation technology makes the cooling loss reduced by 15%.

Extensions Function
Standard configuration with built-in USB data logger, remote alarm and RS485 interface. Optional chart recorder, water cooling system and CO2/LN2 backup system.

10 Types of Alarm
High and low temperature alarm, power failure alarm ,high and low voltage alarm, sensor failure alarm, low battery alarm. condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples, Start-up delay and shutdown interval protection functions ensure reliable operation.





Application:

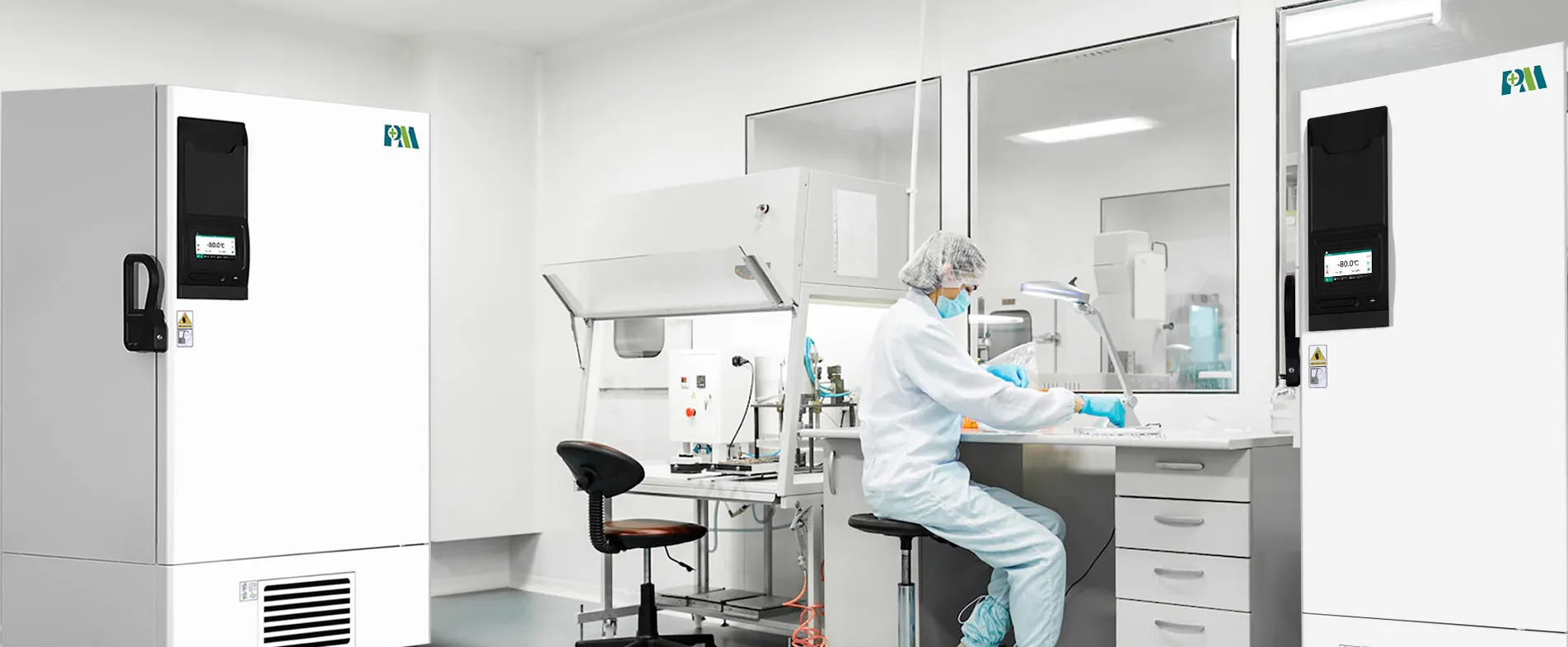

-86℃ ULT freezer is specially designed and manufactured for longterm storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.





ModelShelf/Drawer QTYCapacity(L/Cu.ft)Measurement(W*D*H)(mm)InsulationRacksBoxes(2 inches)Samples Loading QTY (2ml)
MDF-86V340EStainless steel shelf/3340/12875*980*1900PURF12(4X4)19219200



Brand:PROMED
Temperature Range:-40℃~-86℃
Capacity:340L
Cooling Type:Direct cooling
Display:LCD display
Temp. Controller:Microprocessor
Ambient Temperature:10℃~32℃
Power Supply:220V/50Hz or 110V/60HZ
